Tsumura Light Weight Bar & Chain Combo D009 Husqvarna 3/8"

Size 20" 3/8" .058" 407FK4 24" 3/8" .058" 439FK4 28" 3/8 .058 410FK4 30" 3/8 .058 443FK4 36" 3/8 .058 446FK4

Chain Type Carlton A2EP Semi Chisel Carlton A2LM Full Chisel Oregon 73DX Micro Chisel Oregon 73EXL Full Chisel

$195.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Bar + Chain Combo

Tsumura Light Weight Guide Bar & Chain Combo – D009 Husqvarna 3/8"

A genuine Japanese Tsumura Light Weight guide bar matched with your choice of professional Carlton or Oregon chain — built for serious cutting performance in Australian hardwood.

The Tsumura Light Weight bar begins as a Light & Tough solid steel bar before undergoing precision machining. Staggered weight-reduction dove-tailed slots are cut into the bar body and filled with high-strength resin, reducing overall weight by approximately 20% while maintaining rigidity and rail durability.

Manufactured from a single piece of SKS-51 Japanese steel, this is a professional-grade guide bar designed for demanding farm, firewood and forestry applications.

✔ Why Choose This Combo

Lighter without compromise

Resin-filled weight-reduction slots reduce fatigue while maintaining bar rigidity.

Japanese SKS-51 steel

One-piece solid construction for strength, rail durability, and accurate tracking under heavy load.

Matched professional chain

Choose Carlton or Oregon in semi or full chisel — supplied with the correct drive link count for your selected length.

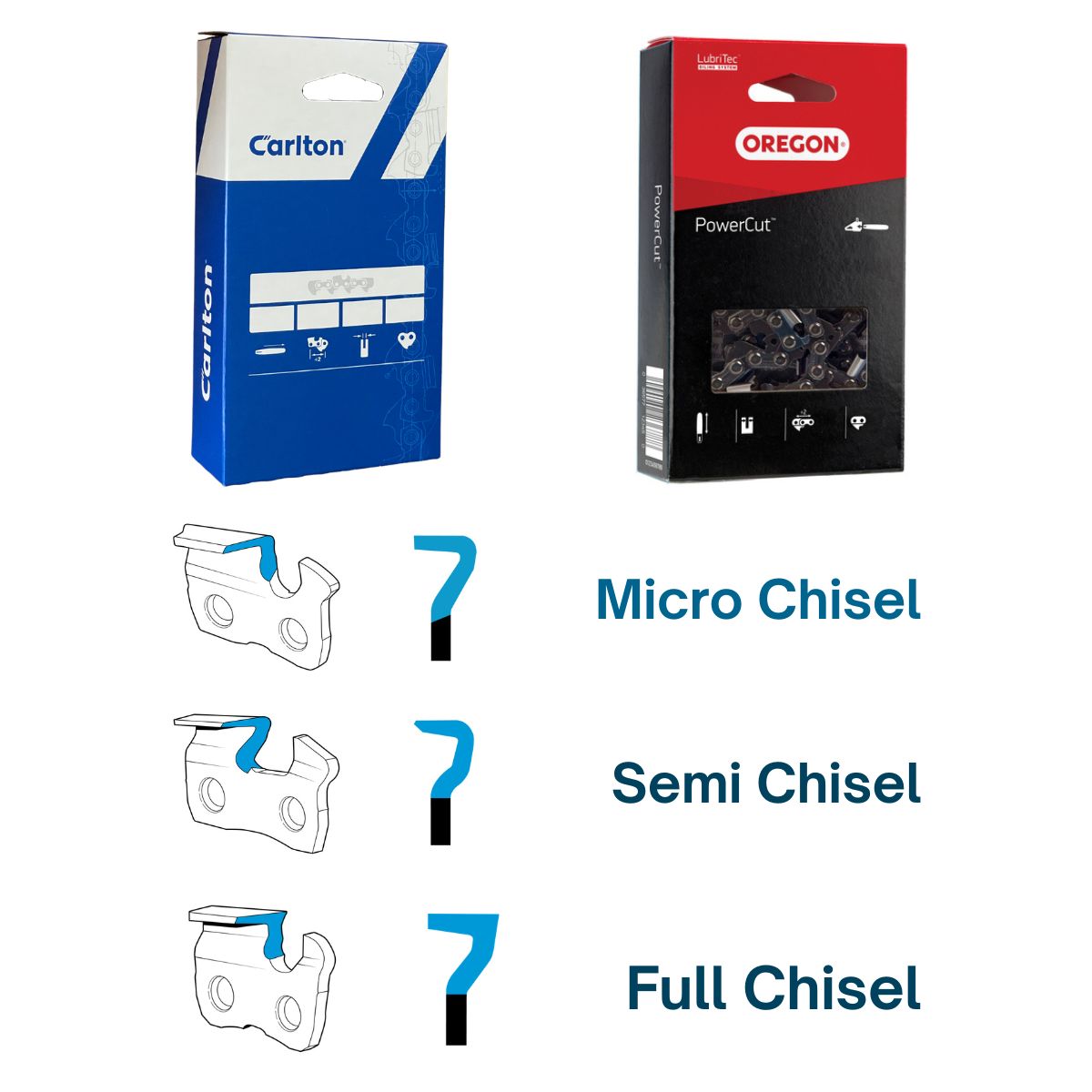

Choose Your Chain Type

Chain	Cutter Type	Best For	Performance
Carlton A2EP	Semi Chisel	Dirty timber, firewood, farm use	Long edge life & forgiving sharpening
Carlton A2LM	Full Chisel	Clean hardwood, production cutting	Fast, aggressive cutting speed
Oregon 73DX	Micro Chisel	Smooth cutting, mixed conditions	Balanced speed & durability
Oregon 73EXL	Full Chisel	Clean timber, experienced operators	High cutting speed & reduced friction

Not sure which to choose? For most users, we recommend Carlton A2EP Semi Chisel for the best balance of durability and performance in Australian conditions.

Bar Specifications

Length	Drive Links	Part Number	Pitch	Gauge	Bar Weight
20"	72 DL	407FK4	3/8"	.058" (1.5mm)	0.99 kg
24"	84 DL	439FK4	3/8"	.058" (1.5mm)	1.23 kg
28"	92 DL	410FK4	3/8"	.058" (1.5mm)	1.50 kg
30"	102 DL	443FK4	3/8"	.058" (1.5mm)	1.70 kg
36"	120 DL	446FK4	3/8"	.058" (1.5mm)	1.96 kg

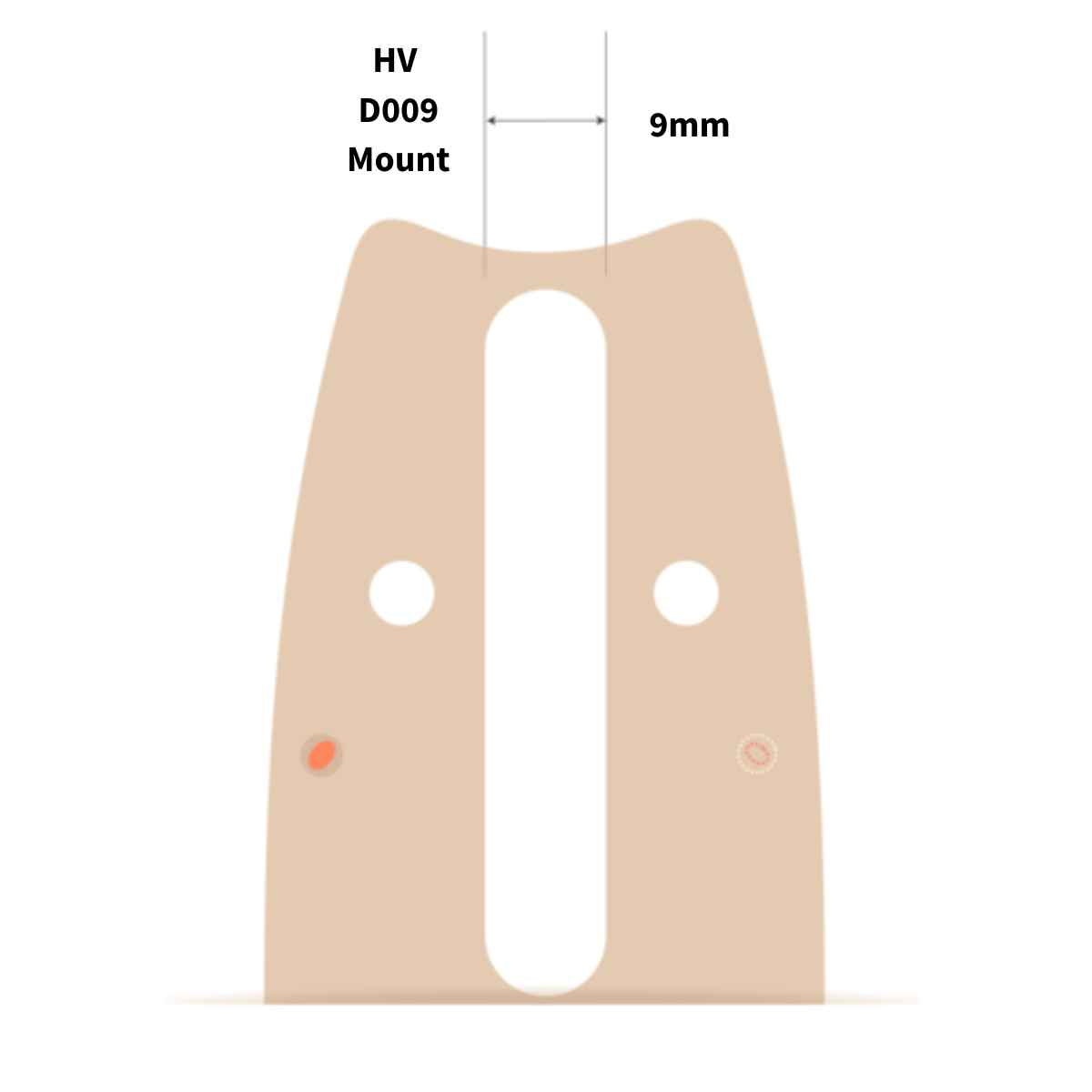

Compatible Chainsaws (D009 / Husqvarna 9 mm Large Mount)

Husqvarna:
61, 62, 65, 66, 70, 77, 160, 162, 163, 181, 185, 263, 266, 268, 272, 280, 281, 285, 288XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 562XP, 565, 570, 572XP, 575XP, 585, 592XP, 2100XP, 2101, 298, 3120XP

Also fits select models from:
Jonsered, Dolmar, Makita, Shindaiwa, Solo and others using the D009 mount pattern.

Important: Always confirm your saw uses D009 mount and 3/8" pitch drive sprocket before ordering.

Image for illustration purposes only.

If you require technical assistance, please contact us.
