Regular price $130.00
/
  • Worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon
  • Secure payments
Tax included. Shipping calculated at checkout.

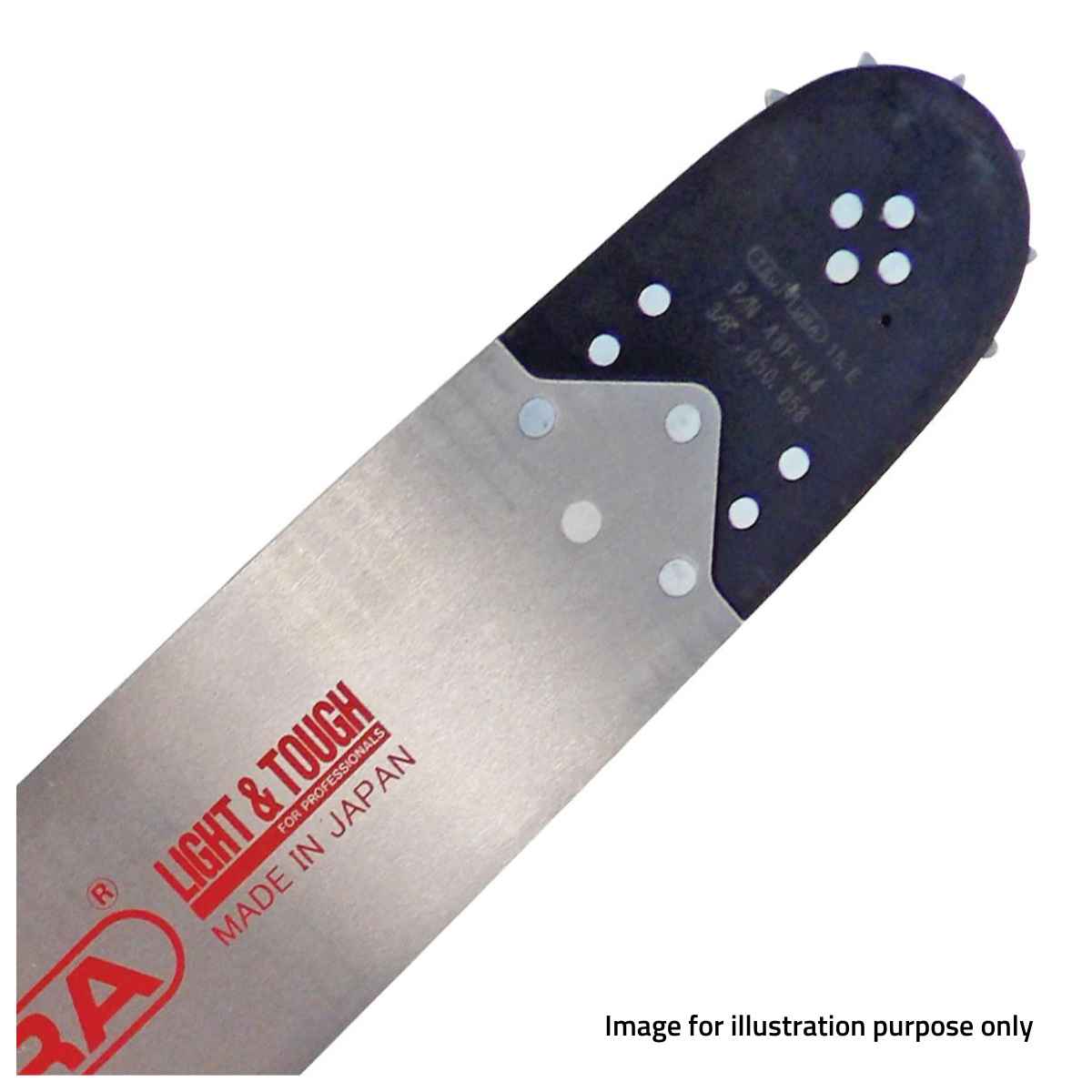

Tsumura Light & Tough Chainsaw Bar

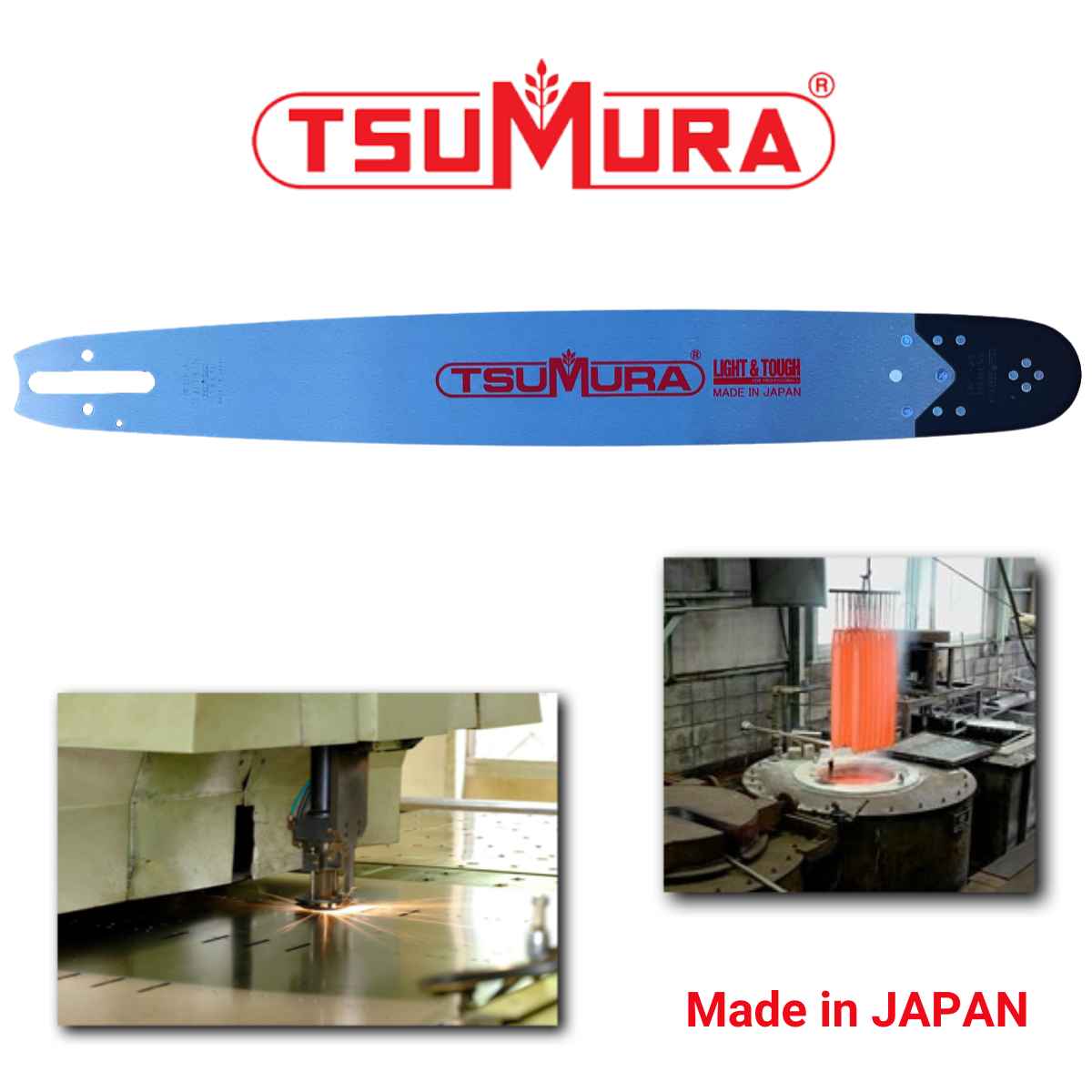

Tsumura chain saw bars are crafted in Japan from specially heat treated and tempered high-grade carbon steel. Utilising laser cutting and CNC machines in manufacturing provides uniform gauge tolerances for precise chain fitment and improved stability when cutting.

  • One-piece solid SKS-51 steel.
  • Laser-cut for precise fitment.
  • Specially heat-treated for superior hardness and longevity.

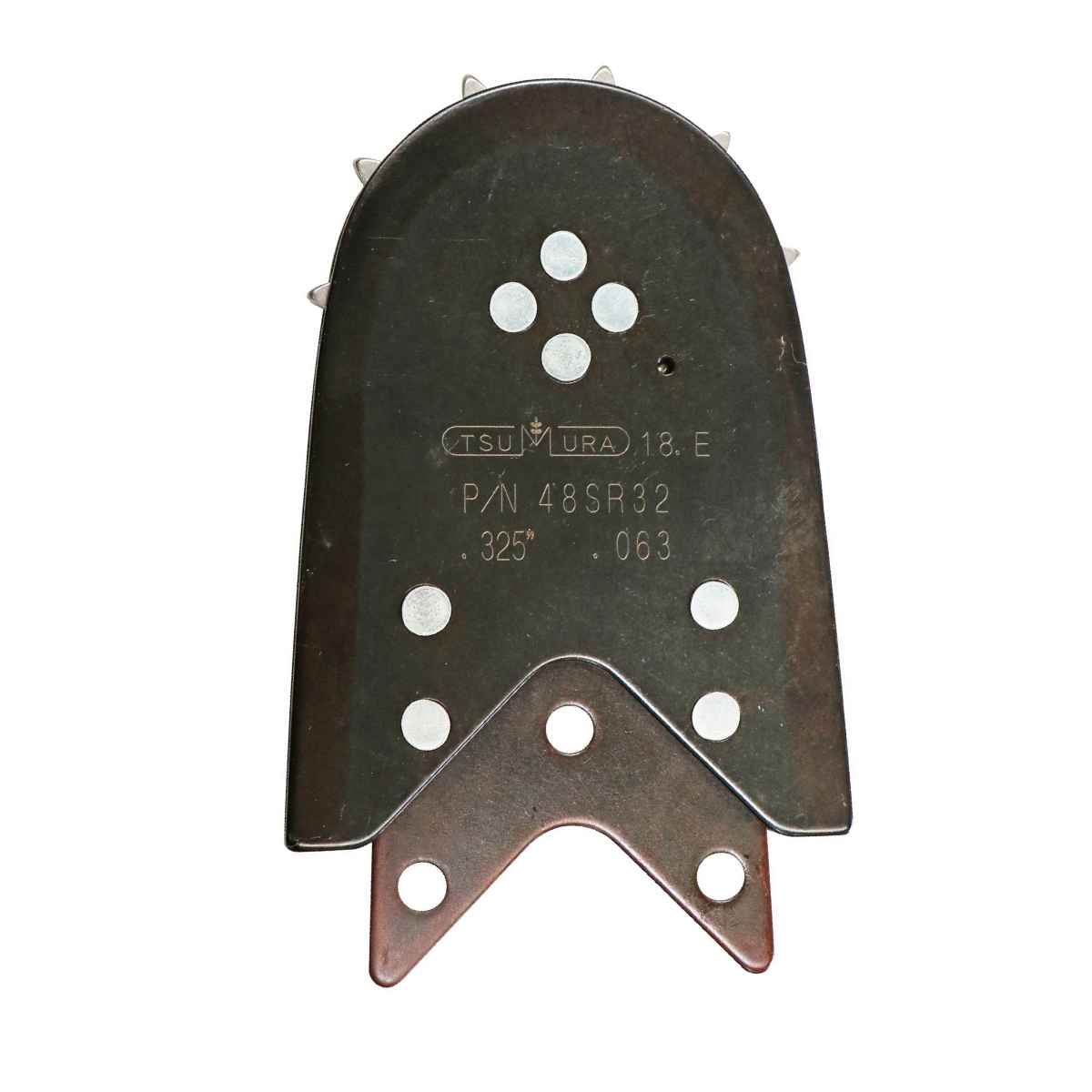

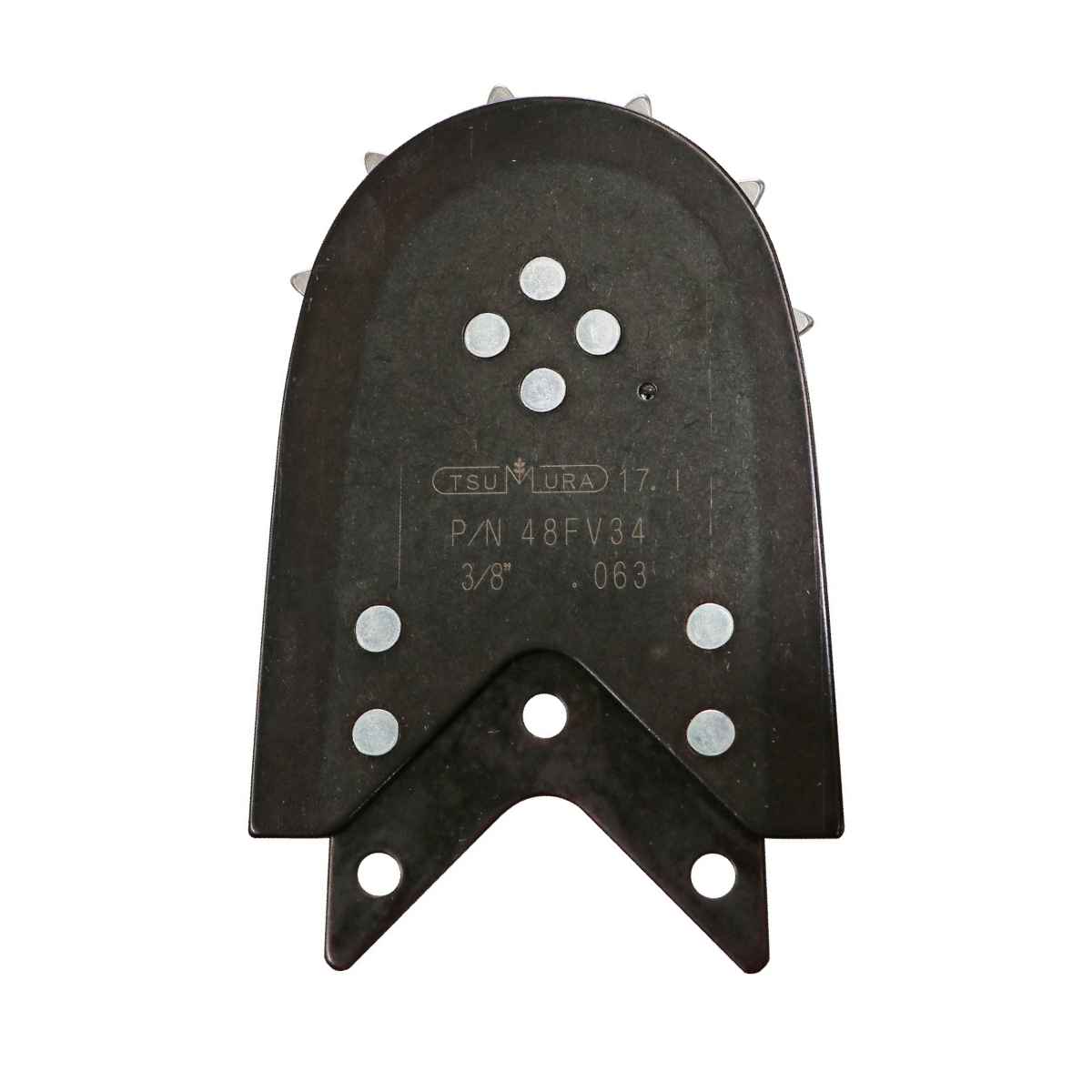

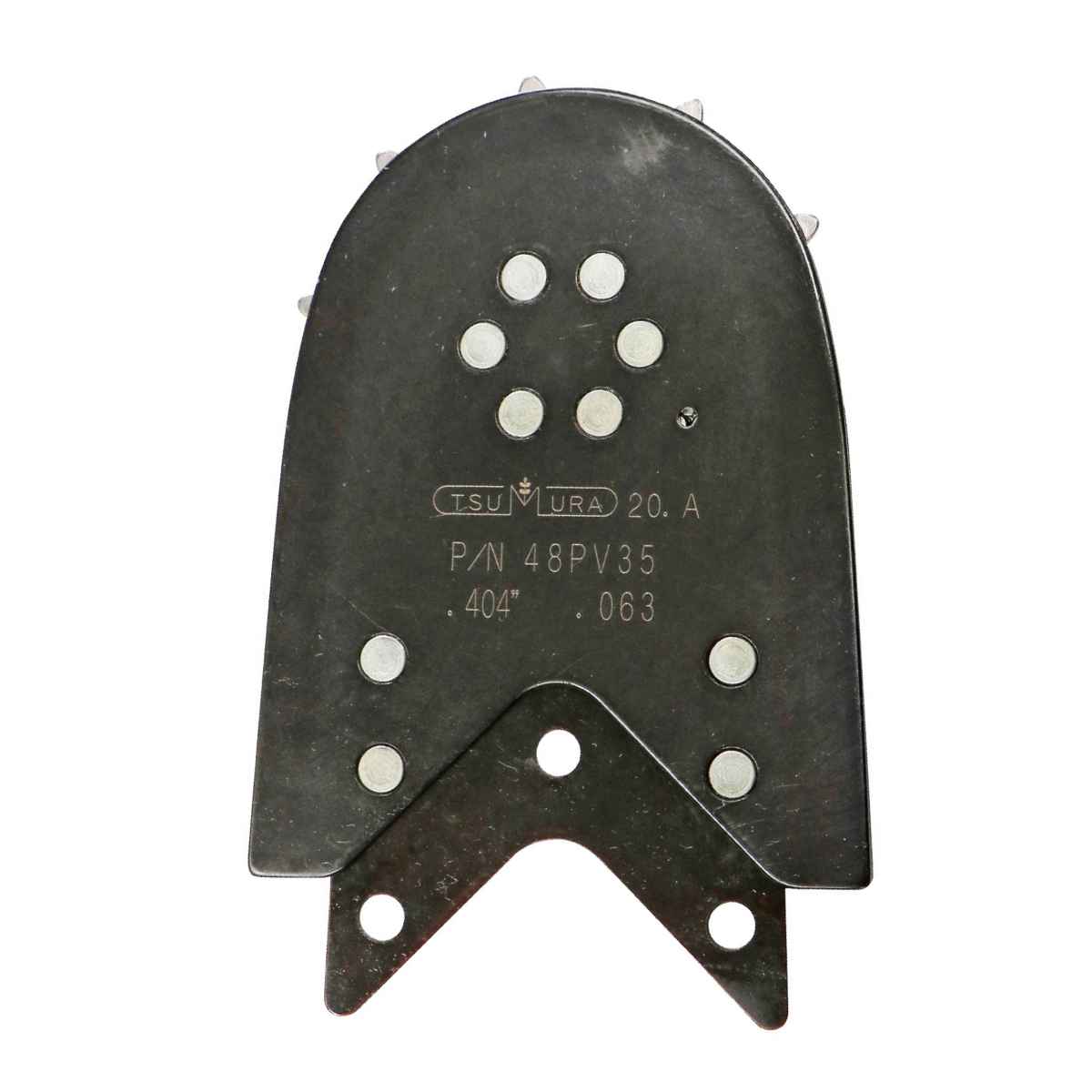

  • Replaceable sprocket nose with grease point to extend bearing life.
  • Length select from drop-down menu
  • Pitch options .325", 3/8" or .404"
  • Gauge .063" 1.6mm

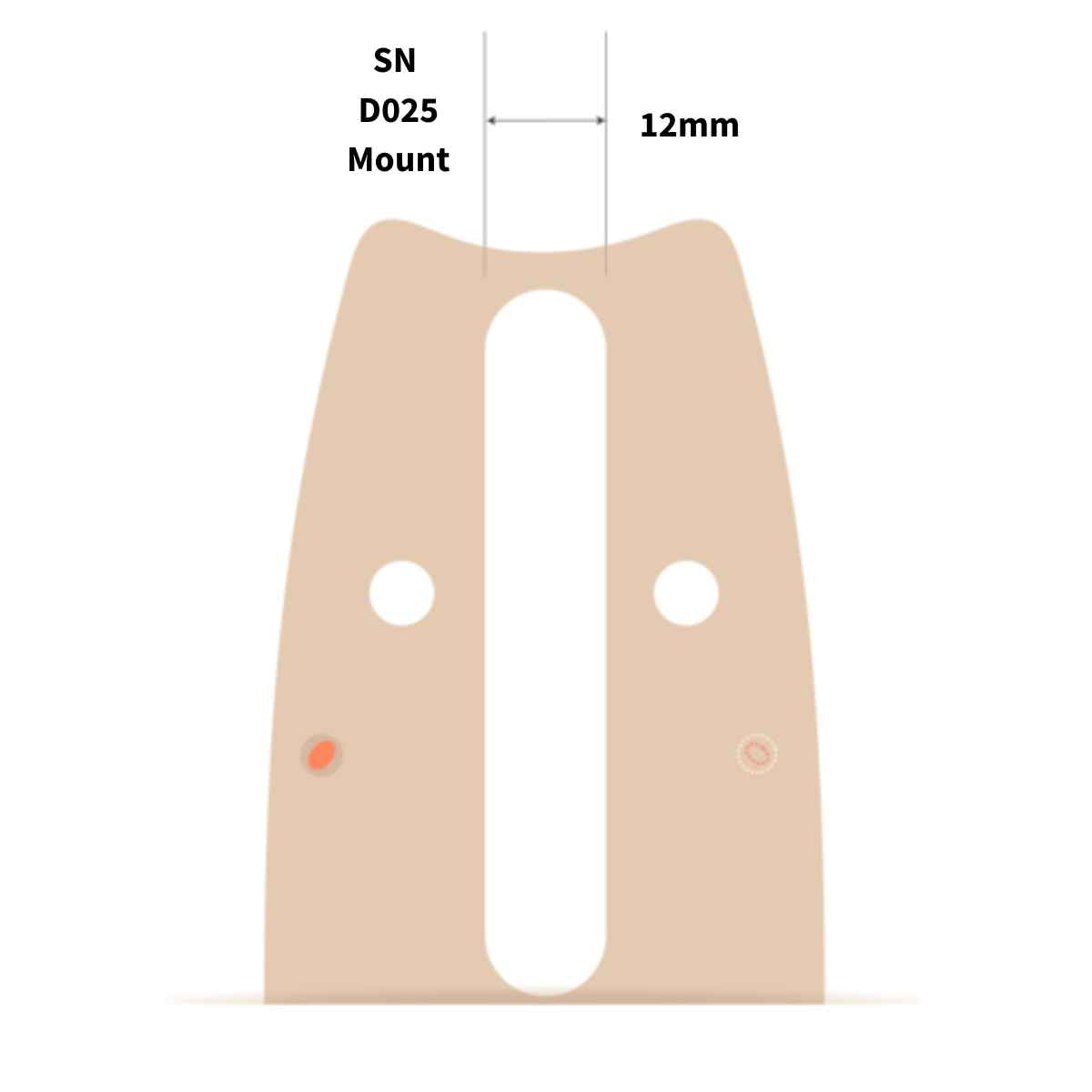

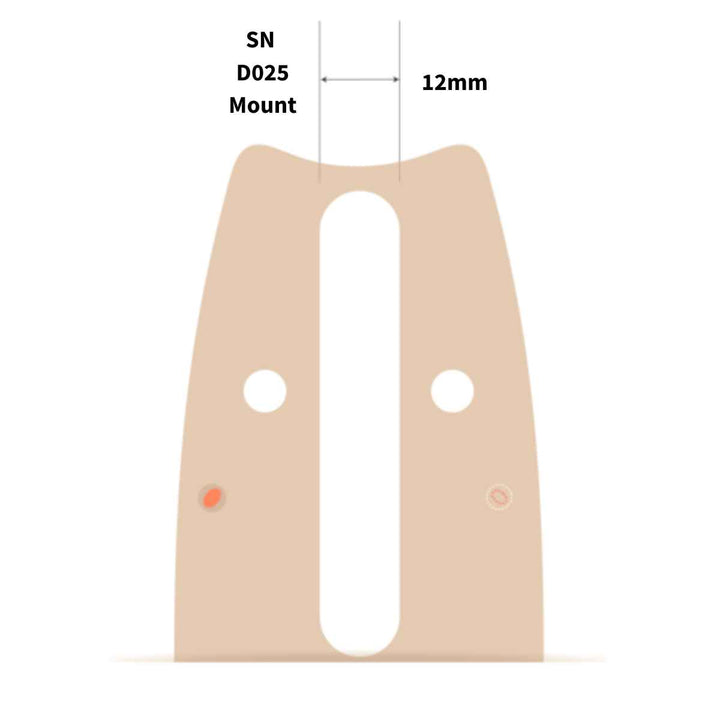

Mount fits Stihl chainsaws listed below

Chainsaw models listed were often factory fitted with different pitch sprockets, check your saw before ordering.

STIHL024, 026, 028, 029, 030, 031, 032, 034, 036, 038, 039, 040, 041, 042, 044, 045, 046, 048, 500i, 056, 064, 066, E15, E20, E220C, FARMBOSS, MS260, MS270, MS280, MS290,MS291, MS310, MS311, MS360, MS361, MS362C, MS380, MS381, MS390, MS391, MS440, MS460, MS461, MS462C, MS500i, MS650, MS660, MS661, MSE220C

Note: mixing pitches will cause non-repairable damage and void warranty. Drive Sprocket pitch, Chain pitch & Bar Nose Pitch must be identical, check your chainsaw before ordering.

 #Part Length Gauge Pitch Drive Link Weight
16-42-K367-PS 16" .063" .325" 67
16-31-A360-PS 16" .063" 3/8" 60
18-31-A366-PS 18" .063" 3/8" 66
20-31-A372-PS 20" .063" 3/8" 72
20-31-B366-PS 20" .063" .404" 72
25-31-A384-PS 25" .063" 3/8" 84
25-31-B378-PS 25" .063" .404" 78
28-31-A391-PS 28" .063" 3/8" 91
28-31-B383-PS 28" .063" .404" 83
30-31-A3100-PS 30" .063" 3/8" 100
30-31-B390-PS 30" .063" .404" 90
36-31-A3115-PS 36" .063" 3/8" 115
36-31-B3104-PS 36" .063" .404" 104
