Tsumura Light & Tough Chainsaw Bar

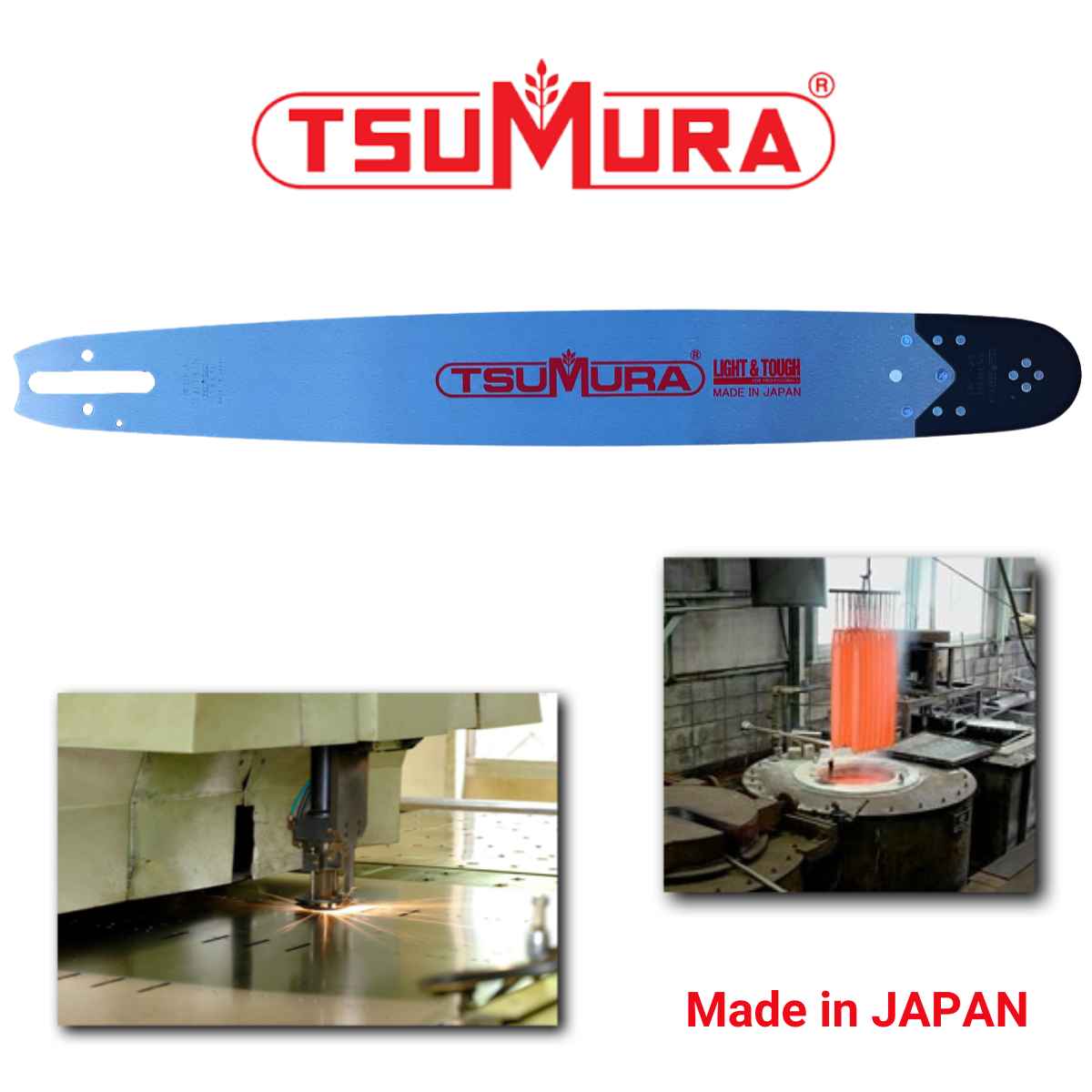

Tsumura chain saw bars are crafted in Japan from specially heat treated and tempered high-grade carbon steel. Utilising laser cutting and CNC machines in manufacturing provides uniform gauge tolerances for precise chain fitment and improved stability when cutting.
- One-piece solid SKS-51 steel.
- Laser-cut for precise fitment.
- Specially heat-treated for superior hardness and longevity.

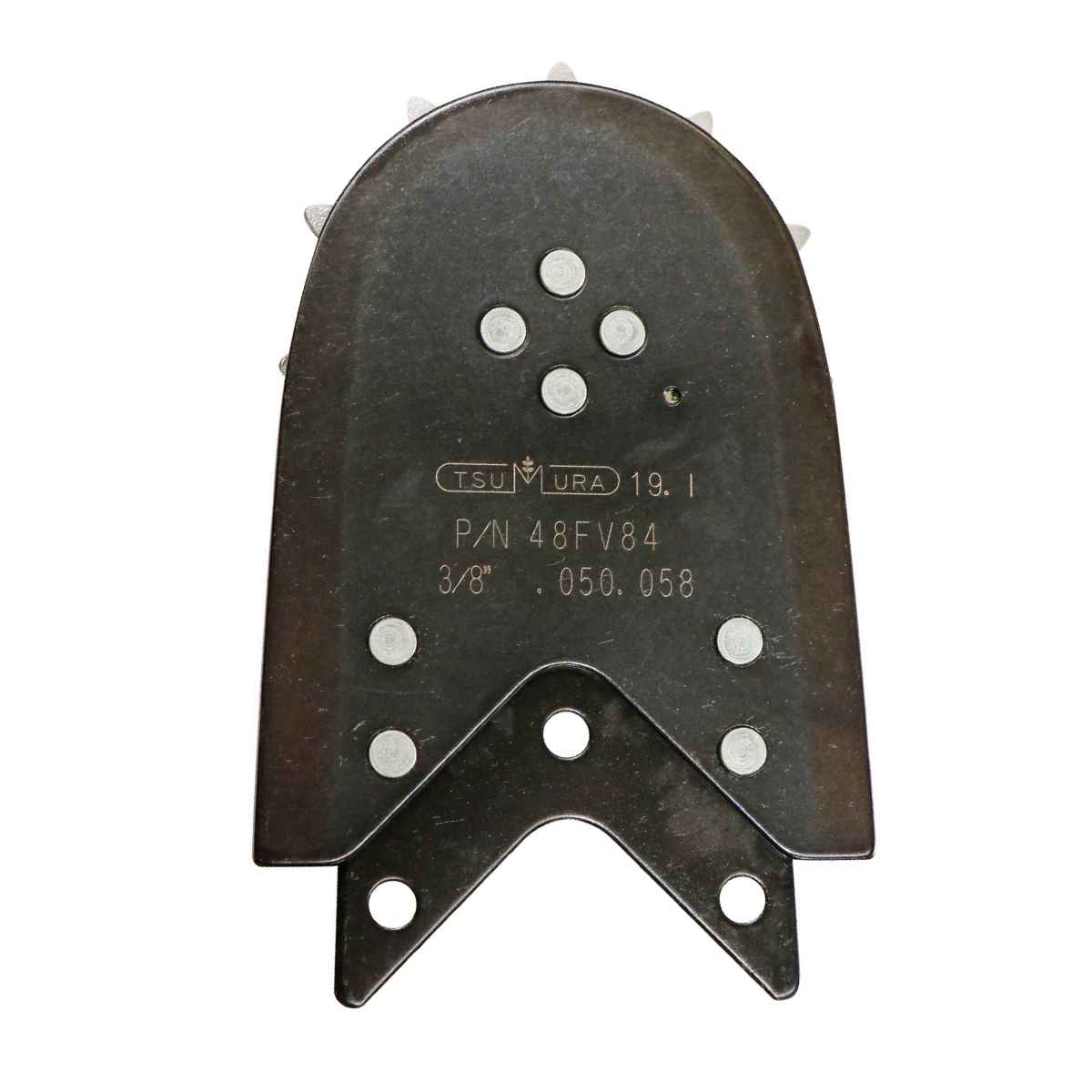

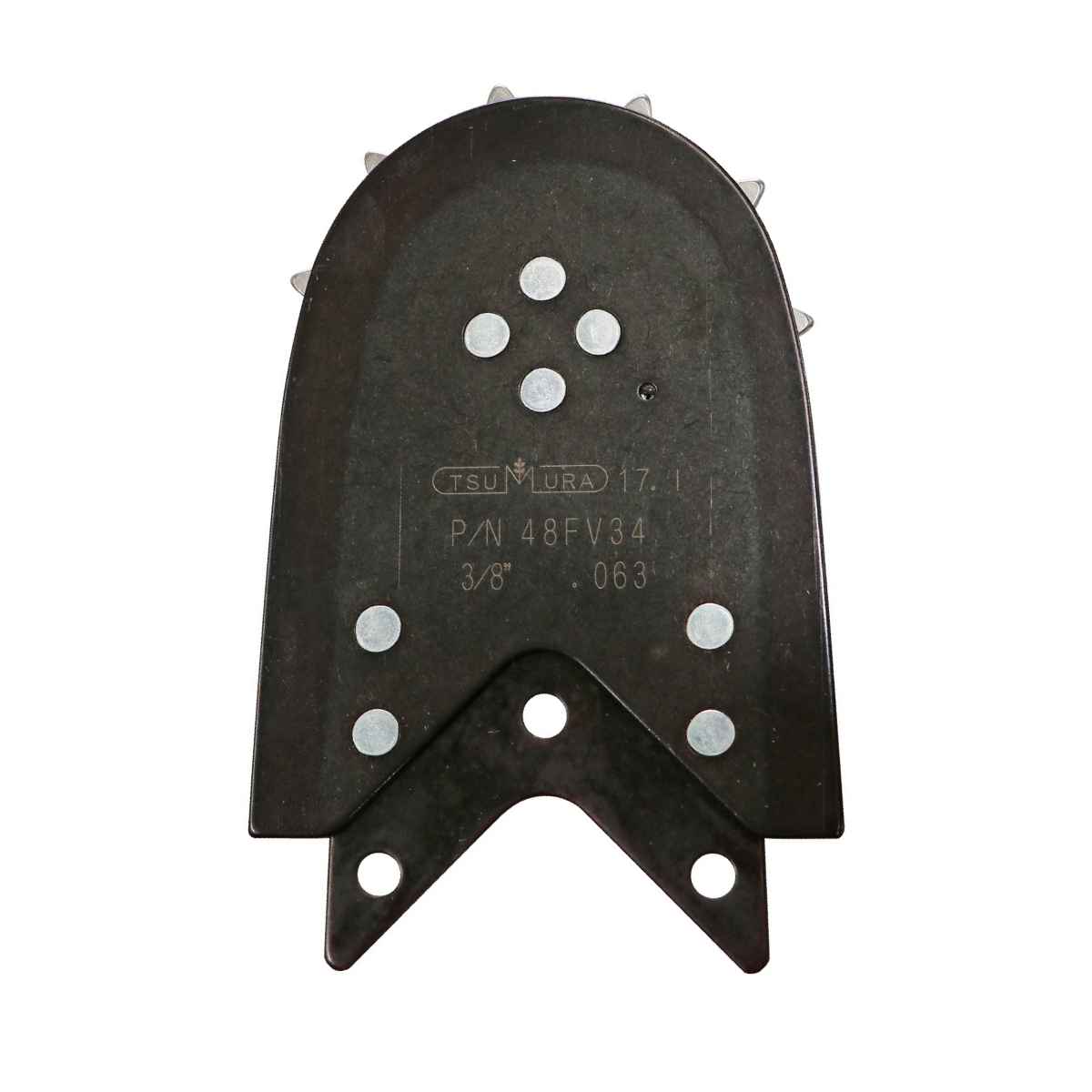

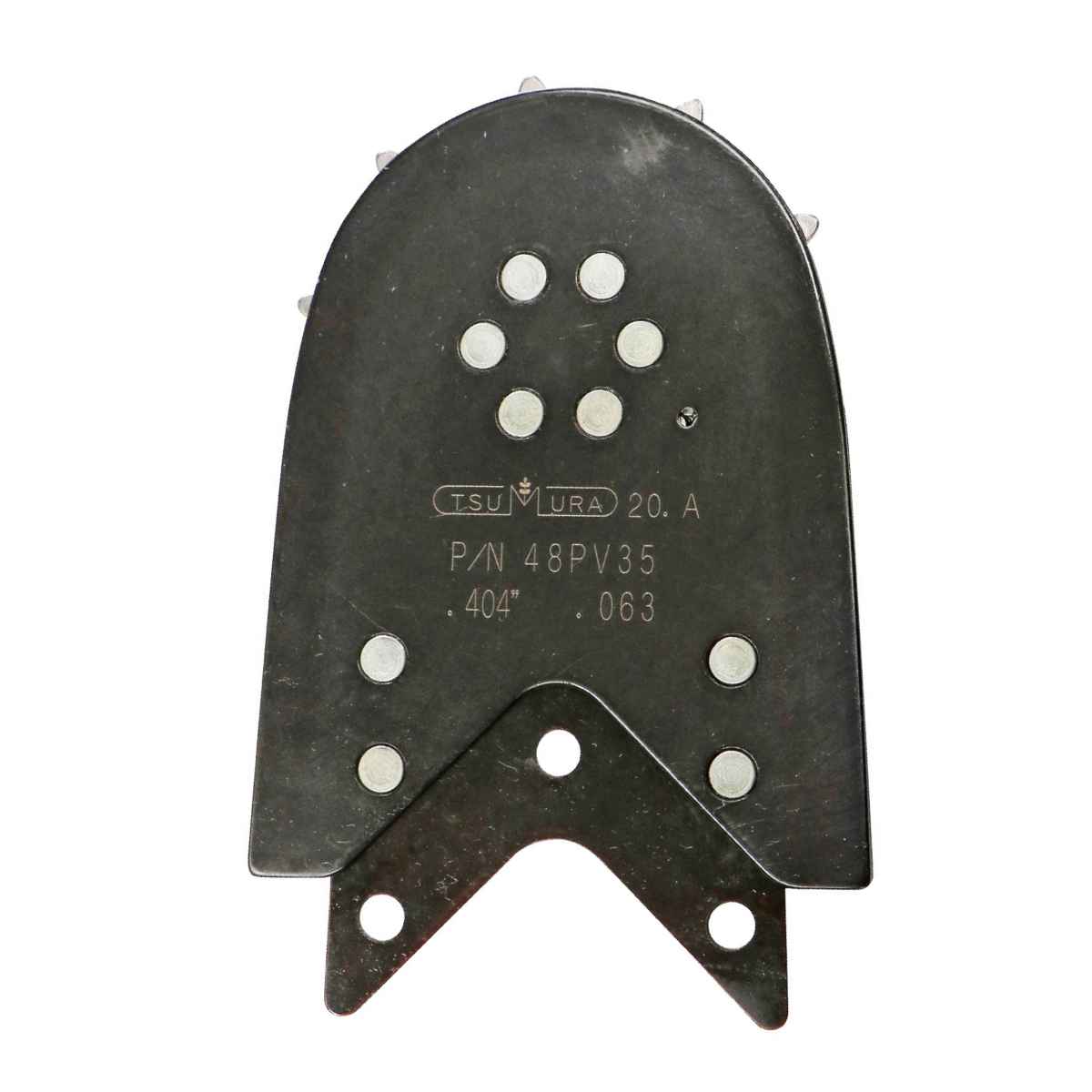

- Replaceable sprocket nose with grease point to extend bearing life.
- Commercial use rated

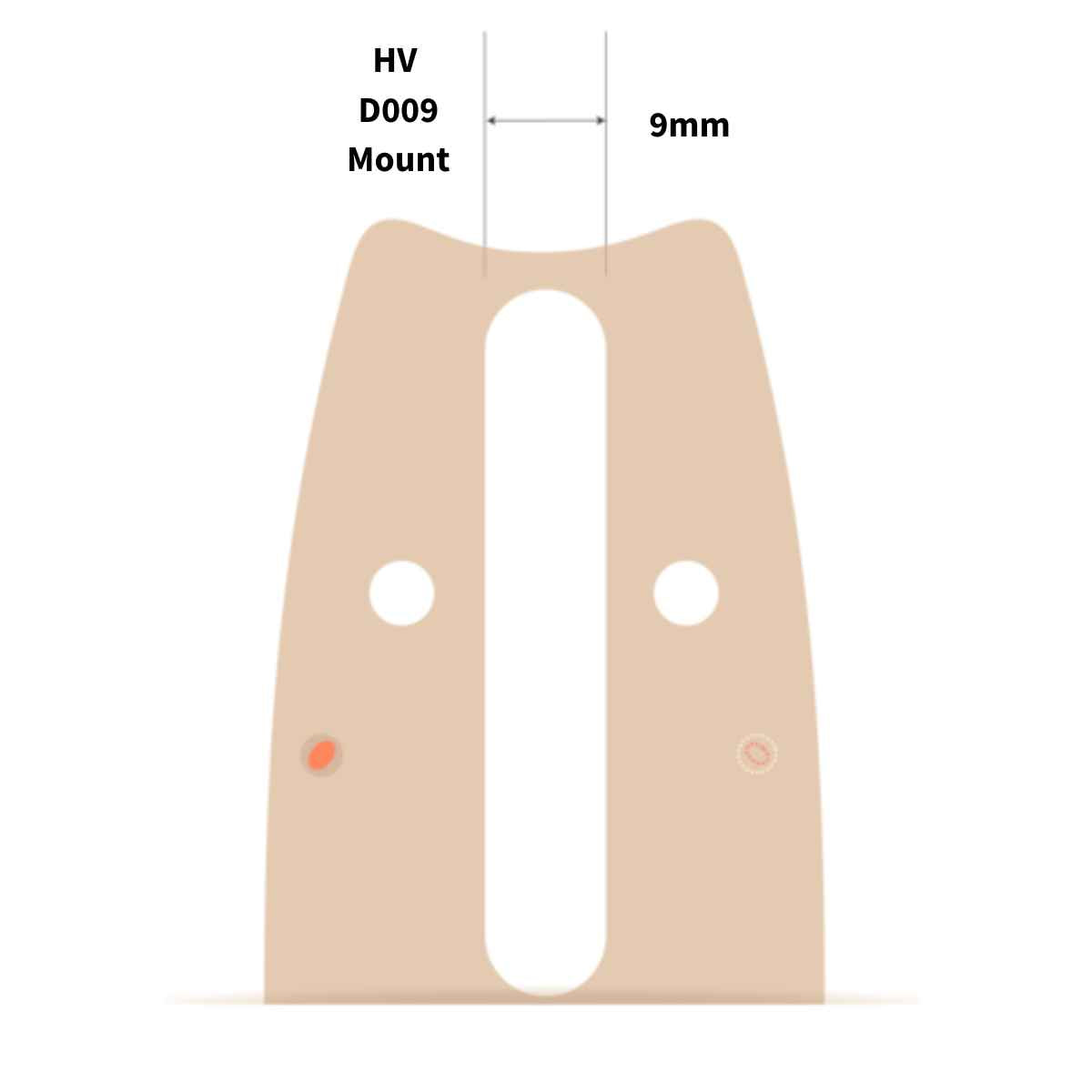

- Mount 9mm D009, HV
- Length select from drop-down menu
- Pitch options 3/8" or .404"
- Gauge .058" 1.5mm or .063" 1.6mm
Fits D009 mount chainsaws listed below
Tip! check your saw drive sprocket pitch matches bar pitch before ordering.
HUSQVARNA: 1100, 160, 162, 163, 180, 181, 185, 2100XP, 2101, 260, 261, 263, 266, 268, 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 480, 562XP, 570, 572, 575XP, 585, 592XP, 61, 62, 65, 66, 70, 77
JONSERED: 2063, 2065, 2071, 2077, 2083, 2094, 2095, 2156, 2159, 2163, 2165, 2171, 2186, 625, 630, 635, 670 WEST COAST
MAKITA:DCS6400, DCS6401, DCS7300, DCS7301, DCS7900, DCS7901
DOLMAR: PS6400, PS7300, PS7900
POULAN & POULAN PRO: 375, 395, 415, 425, 475, PP445, PP505, PP655
SHINDAIWA: 1091, 550, 575, 577, 680, 695, 757, 801, 901
SOLO: 603, 662, 665, 667, 670, 675, 680, 681, 690, 694.
BAUMAR-AG: SX92
Drive link Counts
Disclaimer all counts are approximate and based on 7 tooth drive sprocket. Data supplied by Tsumura
#Part | Length | Gauge | Pitch | Drive Link | Weight |
16-17-A260-PS | 16" | .058" | 3/8" | 60 | |
18-17-A268-PS | 18" | .058" | 3/8" | 68 | |
20-17-A272-PS | 20" | .058" | 3/8" | 72 | |
20-17-A372-PS | 20" | .063" | 3/8" | 72 | |
24-17-A284-PS | 24" | .058" | 3/8" | 84 | |
24-17-A384-PS | 24" | .063" | 3/8" | 84 | |
28-17-A292-PS | 28" | .058" | 3/8" | 92 | |
30-17-A2102-PS | 30" | .058" | 3/8" | 102 | |
36-17-B3108-PS | 36" | .063" | .404" | 108 | |
36-17-A3120-PS | 36" | .058" | 3/8" | 120 | |
36-17-A2120-PS | 36" | .063" | 3/8" | 120 |
