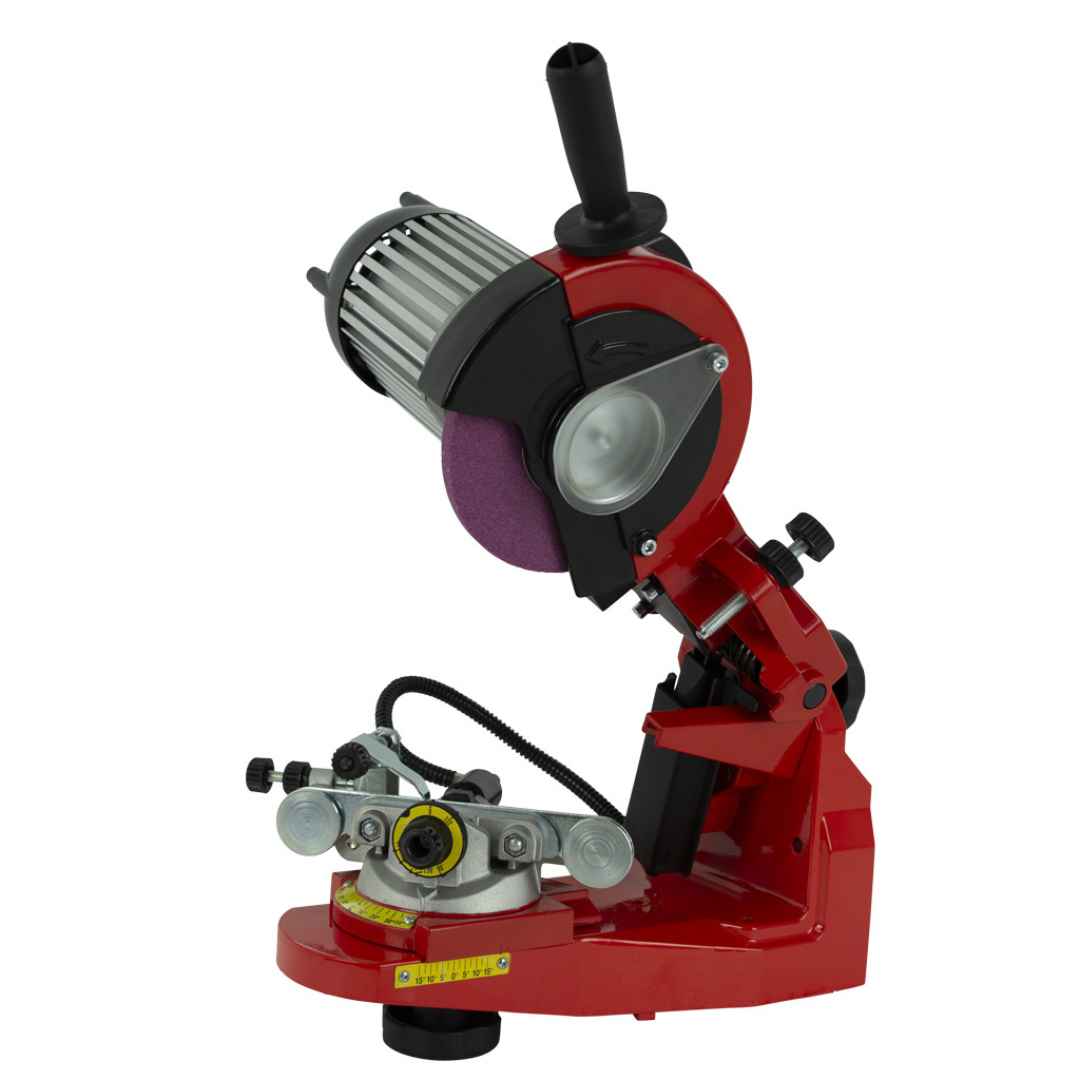

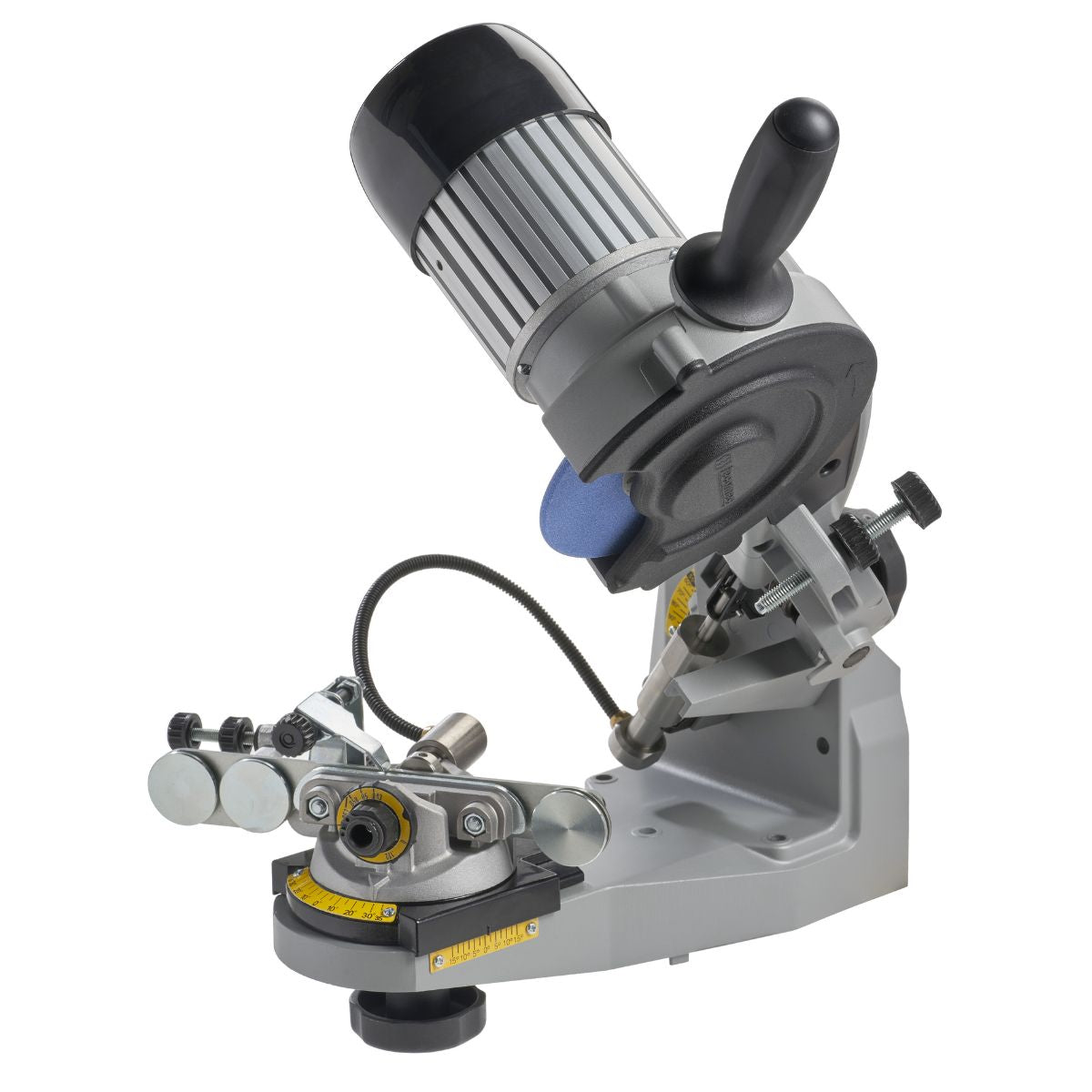

Tecomec Super Jolly Pro-Evo Hydraulic Chainsaw Chain Grinder 230V

Tecomec SJ PRO EVO Hydraulic Chainsaw Chain Grinder 230V

The Italian-designed Tecomec SJ PRO EVO is a professional hydraulic-assist chainsaw chain grinder designed for intensive and continuous workshop sharpening. It combines automatic chain clamping with precise sharpening adjustment for fast, consistent and repeatable results.

As the grinding head is lowered, the hydraulic system automatically clamps the chain securely in the vice. Raising the head releases the chain ready for the next cutter, reducing repetitive manual clamping and improving efficiency when sharpening multiple chains.

The SJ PRO EVO is designed for chainsaw dealers, repair workshops, forestry contractors and professional users who regularly sharpen saw chain. It accommodates common chainsaw chain pitches from 1/4" through to .404", as well as 3/4" harvester chain.

Key Features

• Automatic hydraulic-assist chain clamping
• Closed hydraulic system
• Stainless-steel hydraulic piston
• Self-centring extended vice
• S1 continuous-duty motor for intensive professional use
• Adjustable vice angle, top-plate angle and tilt angle
• Suitable for cutter sharpening and depth-gauge adjustment

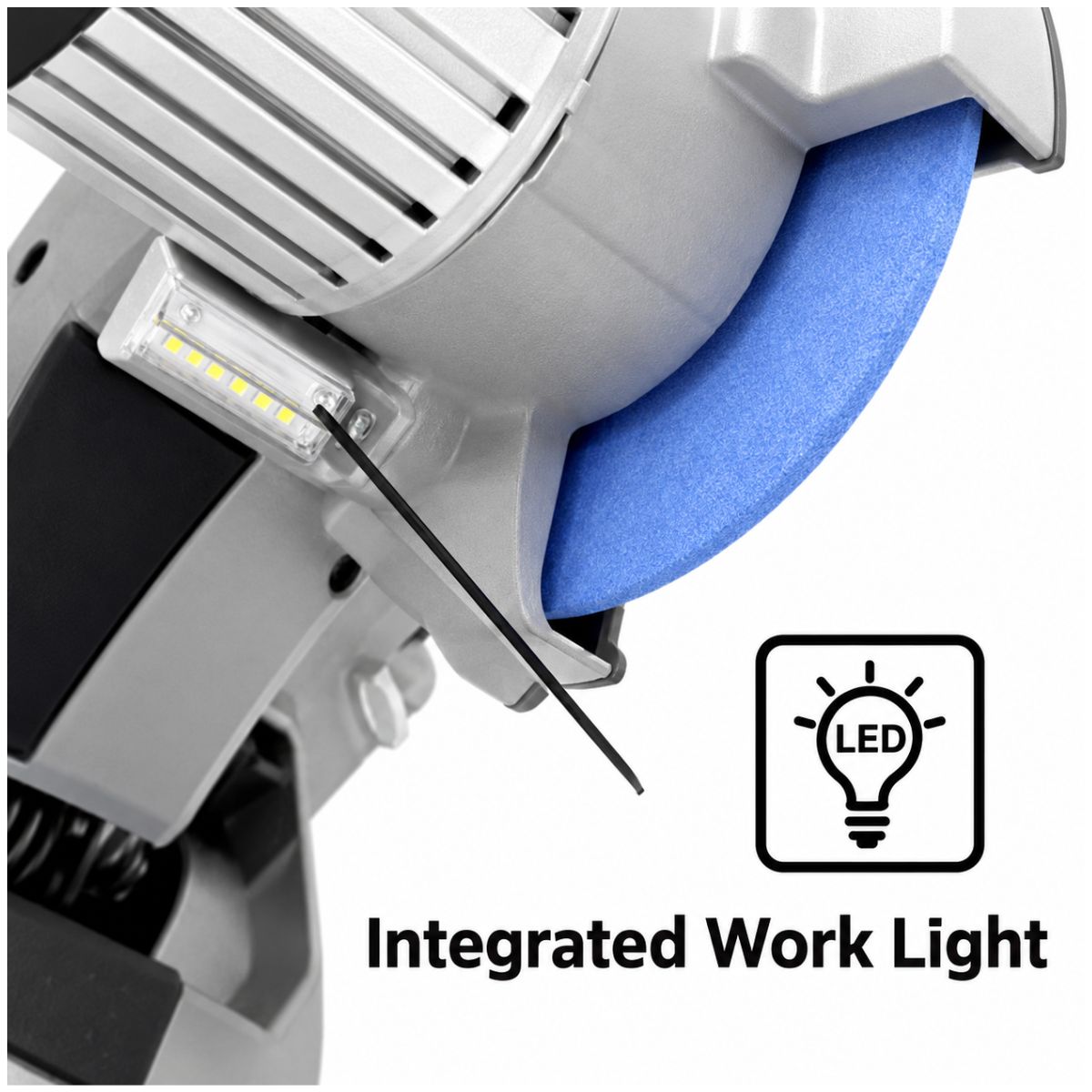

• LED work light for improved visibility
• 145 mm grinding wheel system
• Suitable for 1/4", 3/8" Low Profile, .325", 3/8", .404" and 3/4" chain
• Bench mounted
• 230 V / 50 Hz Australian model with AU plug
• Designed in Italy
• 3-year warranty

Automatic Hydraulic Chain Clamping

The Super Jolly SJ PRO EVO automatically locks the saw chain in position as the grinding head is lowered. When the head is raised, the vice releases the chain so it can be advanced to the next cutter.

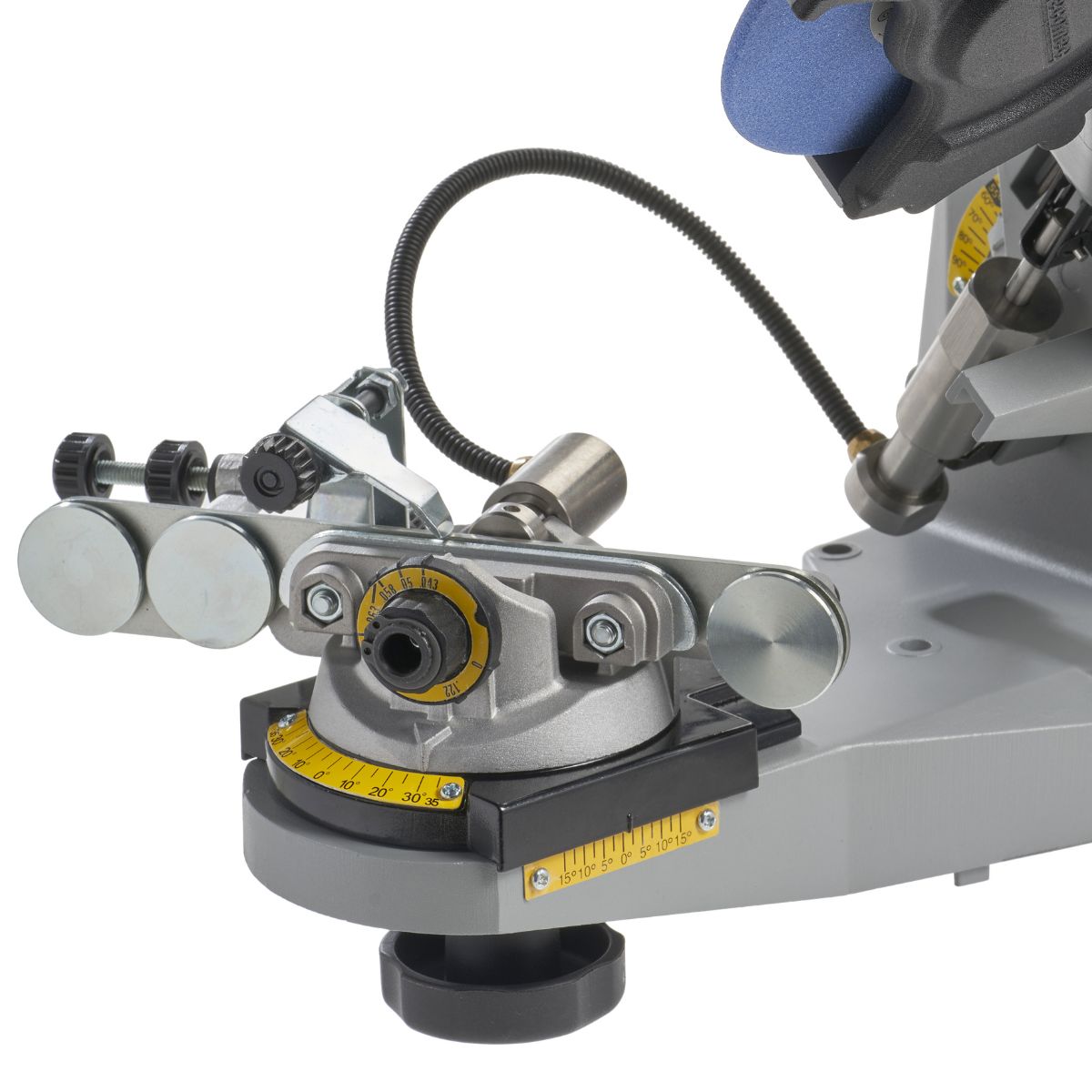

This system reduces repetitive vice operation and is particularly useful for workshops sharpening multiple chains, while the self-centring extended vice helps maintain consistent cutter positioning throughout the chain.

Adjustable Sharpening Geometry

The SJ PRO EVO provides adjustment for vice angle, top-plate angle and tilt angle, allowing the grinder to be accurately set for different chain types and cutter specifications. The machine can also be set up for depth-gauge grinding.

Chain Pitch Compatibility

• 1/4"
• 3/8" Low Profile
• .325"
• 3/8"
• .404"
• 3/4" harvester chain

What’s Included

• Tecomec Super Jolly SJ PRO EVO chain grinder
• 3.2 mm grinding wheel – P/N K00204092
• 4.7 mm grinding wheel – P/N K00204093
• 8.0 mm grinding wheel – P/N K00204095
• Dressing brick – P/N 1005040
• Sharpening template – P/N 1112001
• 3/4" gauge template – P/N D00400000
• Chain hold kit / 3/4" chain stop – P/N K00200334
• 4 mm hex key
• 5 mm hex key

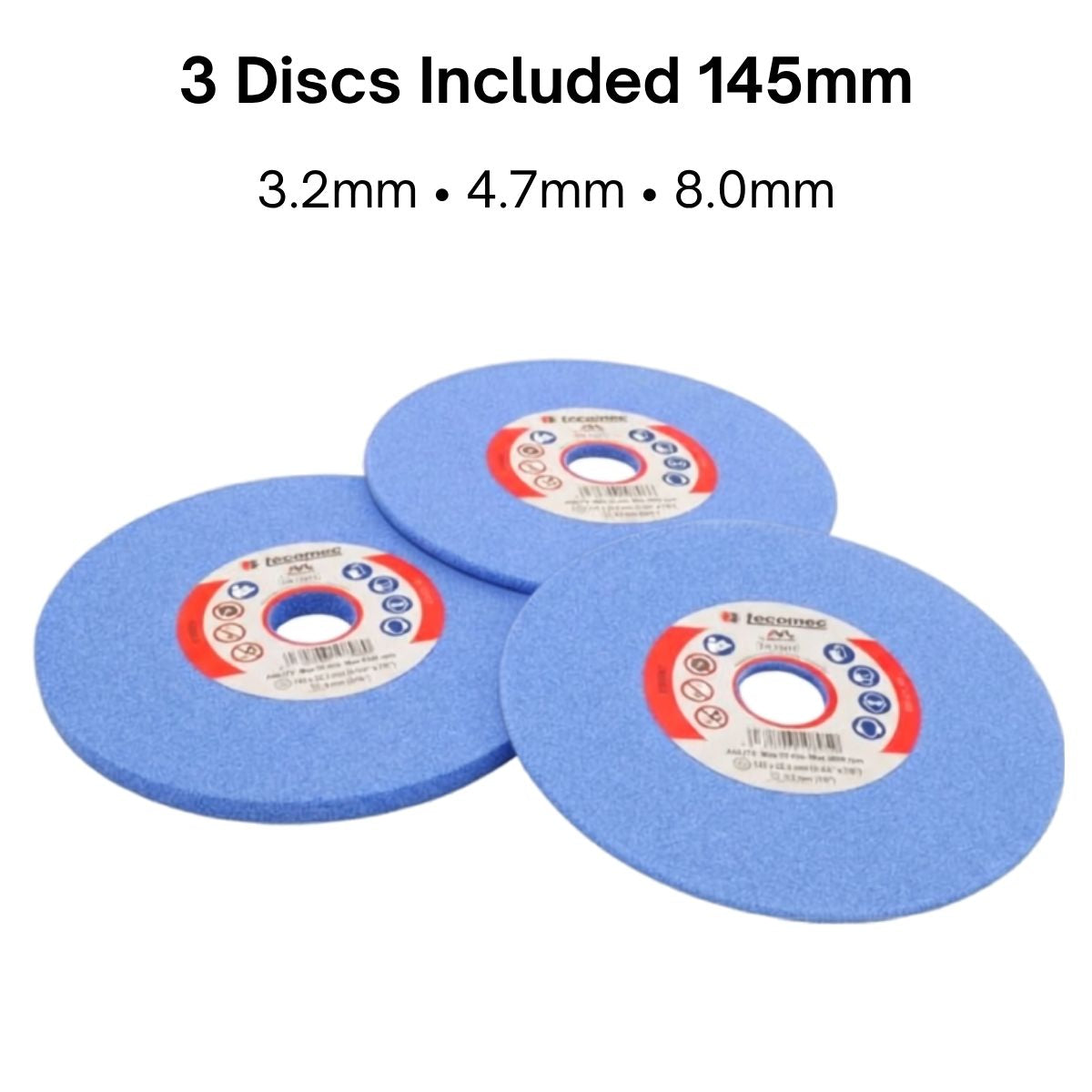

Supplied Grinding Wheels

Optional CBN & Diamond Disc Upgrades

Upgrade the SJ PRO EVO with our custom-made resin-bonded sharpening discs for improved consistency and long service life.

• CBN Discs for Steel Chain – 145 × 22.2 mm in 3.2 mm and 4.7 mm widths.
• Diamond Discs for Tungsten Carbide Chain – 145 × 22.2 mm in 3.2 mm and 4.7 mm widths.

Technical Specifications

Professional Chainsaw Chain Sharpening

The combination of automatic hydraulic clamping, continuous-duty operation and adjustable sharpening geometry makes the SJ PRO EVO well suited to professional chainsaw chain sharpening where speed, accuracy and repeatability are important.

Its 145 mm grinding wheel system covers a wide range of chainsaw and harvester chain, while replacement Tecomec grinding wheels, service parts and accessories are available for ongoing workshop use.

Australian model P/N 11519002 – 230 V / 50 Hz with Australian plug.
