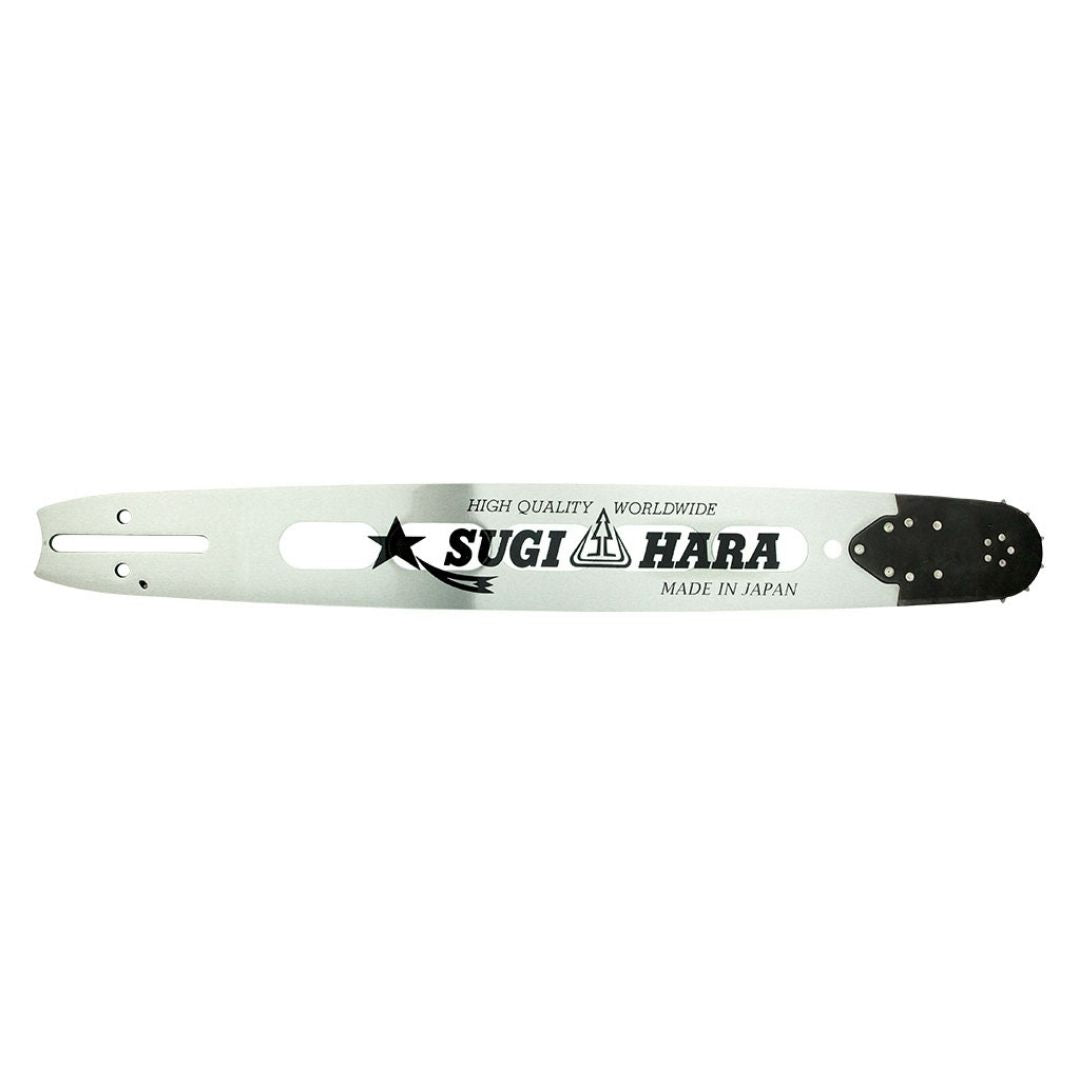

SUGI HARA Light Weight 18" 3/8 .058 CB HV D009

SUGI HARA  Sprocket Tip Bar

• Manufactured from a single piece of steel, featuring superior durability and hardness.
• Steel is heat treated four times to provide superior bar-body strength.
• Rails are hardened to HCR50 hardness and have excellent resistance to wear and chipping.
• High durability sprocket nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
• 10% lighter - Slots are CNC machined in bar & resin filled to reduce weight.

• Pitch: 3/8"
• Gauge: .058" 1.5mm
• Drive link: 68
• Length: 18"
• Weight 970gm
• Mount: CB, HV, D009

Fits

DOLMAR: PS6400, PS7300, PS7900

HUSQVARNA:1100, 160, 162, 163, 180, 181, 185, 2100XP, 2101, 260, 261, 263, 266, 268, 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 480, 570, 575XP, 61, 62, 65, 66, 70, 77

JONSERED: 2063, 2065, 2071, 2077, 2083, 2094, 2095, 2156, 2159, 2163, 2165, 2171, 2186, 625, 630, 635, 670 WEST COAST

MAKITA:DCS6400, DCS6401, DCS7300, DCS7301, DCS7900, DCS7901

POULAN & POULAN PRO: 375, 395, 415, 425, 475, PP445, PP505, PP655

SHINDAIWA: 1091, 550, 575, 577, 680, 695, 757, 801, 901

SOLO: 603, 662, 665, 667, 670, 675, 680, 681, 690, 694.
