Sugi-Hara Light Bar, Oregon Chain Combo 3/8" fits Stihl & Husqvarna
Sugi-Hara Light Bar, Oregon Chain Combo 3/8" fits Stihl & Husqvarna
5.0 / 5.0
(1) 1 total reviews
Quantity
Regular price
$195.00
Regular price
Sale price
$195.00
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

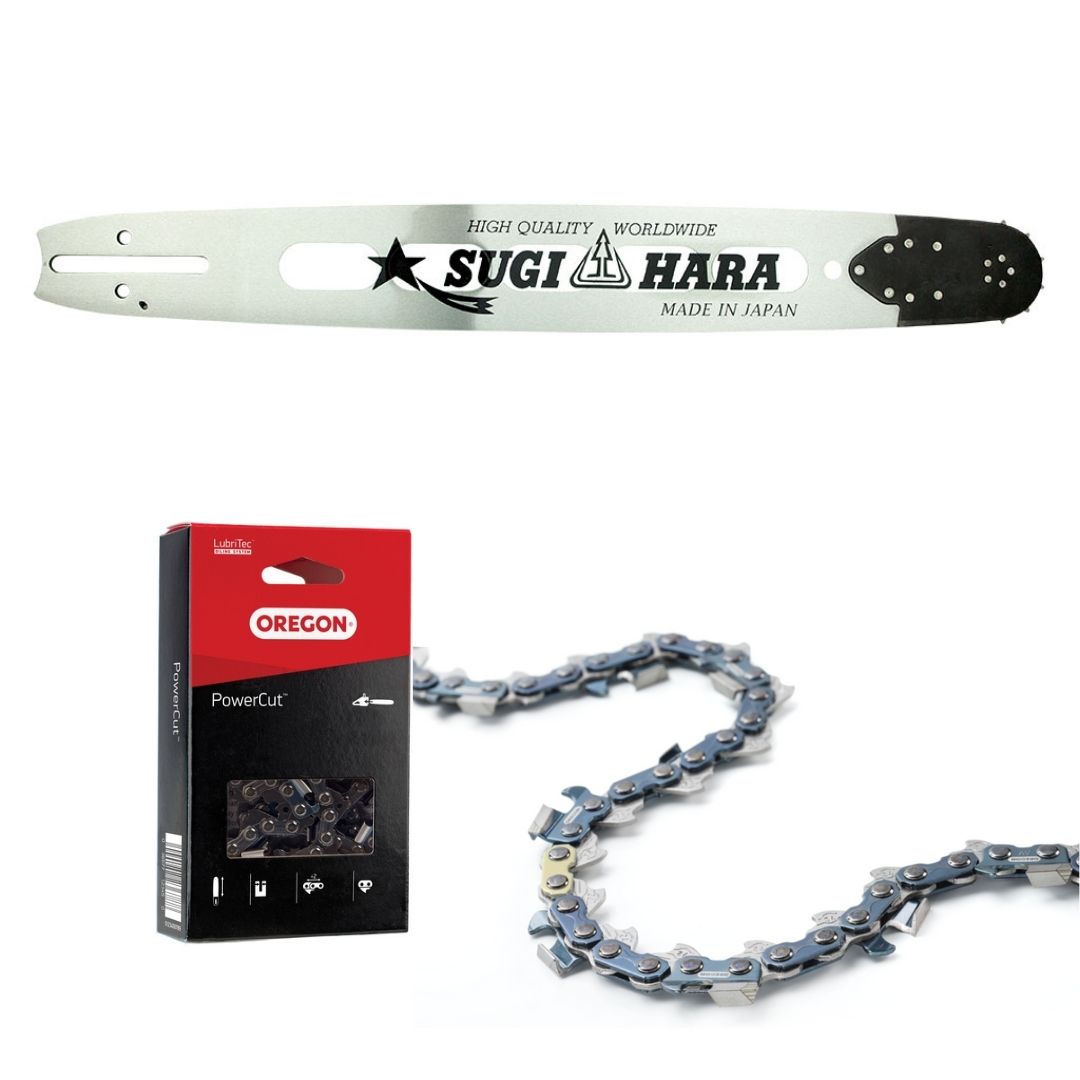

SUGI HARA Sprocket Tip Light Weight Bar + Oregon PowerCut EXL Chain
Australian Stock • GST Invoice • Fast Victorian Dispatch • Expert Support
Select your mount & length: D009 (Husqvarna, .058" / 1.5 mm) or D025 (Stihl, .063" / 1.6 mm). Each option includes a matched Oregon PowerCut EXL full-chisel chain (USA made).

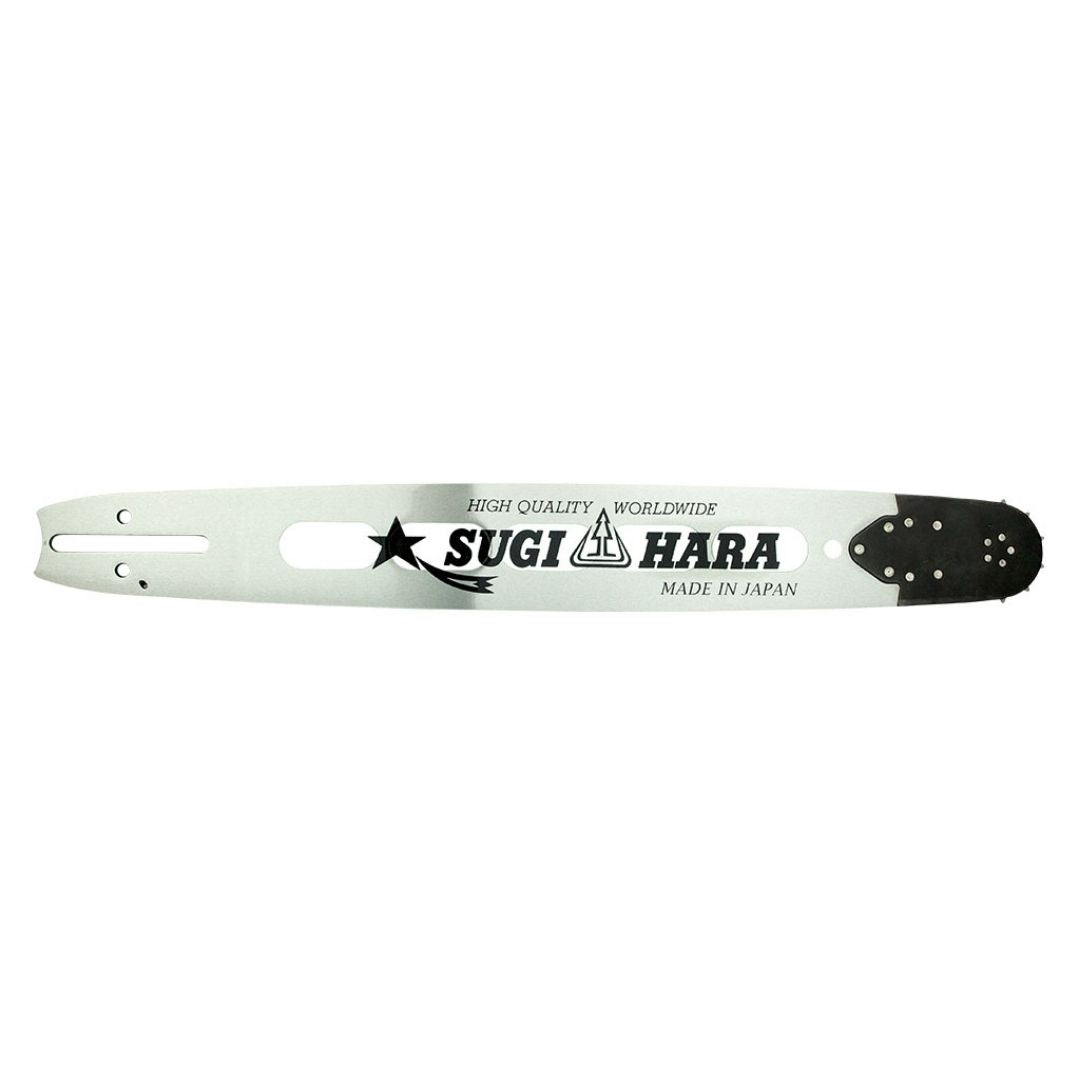

Premium Japanese Bar — Built Light, Strong & Fast
Crafted from superior Japanese steel and heat-treated four times to HCR50. The Sugi-Hara Light Bar uses resin-filled CNC-machined slots for weight reduction (approx. 10% lighter), and a replaceable sprocket-nose secured by wide overlapping ears with three rivets for outstanding durability. Paired with Oregon EXL, it delivers confident, professional cutting performance.
Bar Specifications
- Pitch: 3/8"
- Gauge / Mount: .058" (D009 Husqvarna, 9 mm tail) • .063" (D025 Stihl, 12 mm tail)
- Construction: Japanese alloy steel • Quad heat-treat (HCR50) • Resin-filled light body
- Nose: Replaceable sprocket-nose with triple-rivet overlapping ears
- Country of Manufacture (Bar): Japan
Included Chain
- Model: Oregon PowerCut EXL (Full-Chisel)
- Pitch / Gauge: 3/8" × .058" (D009) • 3/8" × .063" (D025)
- Origin: Made in USA
- Supply: Sized to the correct drive-link count for your selected bar
Options — Select from the Dropdown
| Length | Mount | Pitch × Gauge | Drive Links |
|---|---|---|---|
| 18" | D009 (Husqvarna) | 3/8" × .058" | 68 DL |
| 18" | D025 (Stihl) | 3/8" × .063" | 66 DL |
| 20" | D009 (Husqvarna) | 3/8" × .058" | 72 DL |
| 20" | D025 (Stihl) | 3/8" × .063" | 72 DL |
| 24" | D009 (Husqvarna) | 3/8" × .058" | 82 DL |
| 25" | D025 (Stihl) | 3/8" × .063" | 84 DL |
Will It Fit?
- Your saw uses D009 (Husqvarna large mount, .058" gauge) or D025 (Stihl 3003 mount, .063" gauge).
- Your drive sprocket is 3/8" pitch.
- Select the matching gauge & mount for your saw; chain is supplied to suit the option you choose.
D009 Mount — Compatible Models (Indicative)
DOLMAR: PS6400, PS7300, PS7900
HUSQVARNA: 1100, 160, 162, 163, 180, 181, 185, 2100XP, 2101, 260, 261, 263, 266, 268, 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 480, 570, 575XP, 61, 62, 65, 66, 70, 77
JONSERED: 2063, 2065, 2071, 2077, 2083, 2094, 2095, 2156, 2159, 2163, 2165, 2171, 2186, 625, 630, 635, 670 WEST COAST
MAKITA: DCS6400, DCS6401, DCS7300, DCS7301, DCS7900, DCS7901
POULAN & POULAN PRO: 375, 395, 415, 425, 475, PP445, PP505, PP655
SHINDAIWA: 1091, 550, 575, 577, 680, 695, 757, 801, 901
SOLO: 603, 662, 665, 667, 670, 675, 680, 681, 690, 694
D025 Mount — Compatible Models (Indicative)
STIHL: 024, 026, 028, 029, 030, 031, 032, 034, 036, 038, 039, 040, 041, 042, 044, 045, 046, 048, 500i, 056, 064, 066, E15, E20, E220C, FARMBOSS, MS260, MS270, MS280, MS290, MS310, MS360, MS361, MS380, MS381, MS390, MS440, MS460, MS461, MS500i, MS650, MS660, MS661, MSE220C
Setup & Care
- Match bar, chain and sprocket to the same pitch (3/8").
- Use the correct gauge for your mount: .058" (D009) or .063" (D025).
- Set proper chain tension; keep bar groove and oil holes clean.
- Flip the bar periodically to even rail wear; sharpen to manufacturer angles.
Why Choose Whites Forestry Equipment?
- Specialist advice from forestry professionals
- Australian stock: Fast dispatch from Victoria
- Quality guarantee: Genuine Sugi-Hara bars & Oregon chains
- Business-ready: GST tax invoice and after-sales support
Important: Compatibility information is a guide only. Confirm mount, pitch, gauge and drive-link count for your saw and sprocket before ordering.
