Oregon Professional Chain Sharpener Grinder Hydraulic Assist
Quantity
Regular price
$1,295.00
Regular price
Sale price
$1,295.00
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

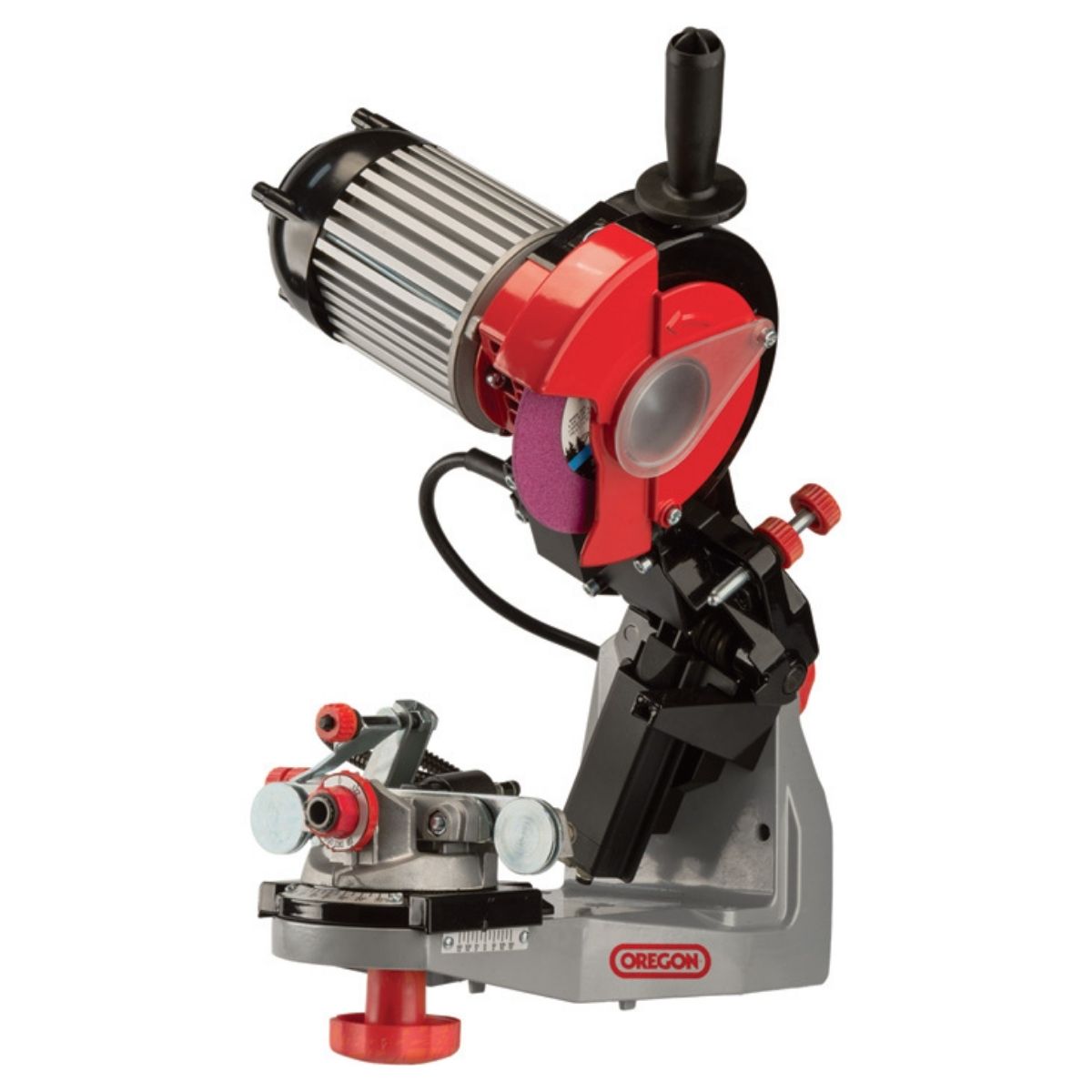

The Oregon 620-series grinder delivers precise, accurate sharpening across all common chain pitches. Its built-in hydraulic assist automatically closes the chain vice each time the motor and wheel are lowered, removing the need to manually lock and unlock the vice and helping reduce overall sharpening time.
| Specification | Details |
|---|---|
| Model | Oregon 620-230 |
| Power Supply | 230V, 50Hz with AU plug. Suitable for Australia and New Zealand power supply only. |
| Motor | 214W single-direction motor |

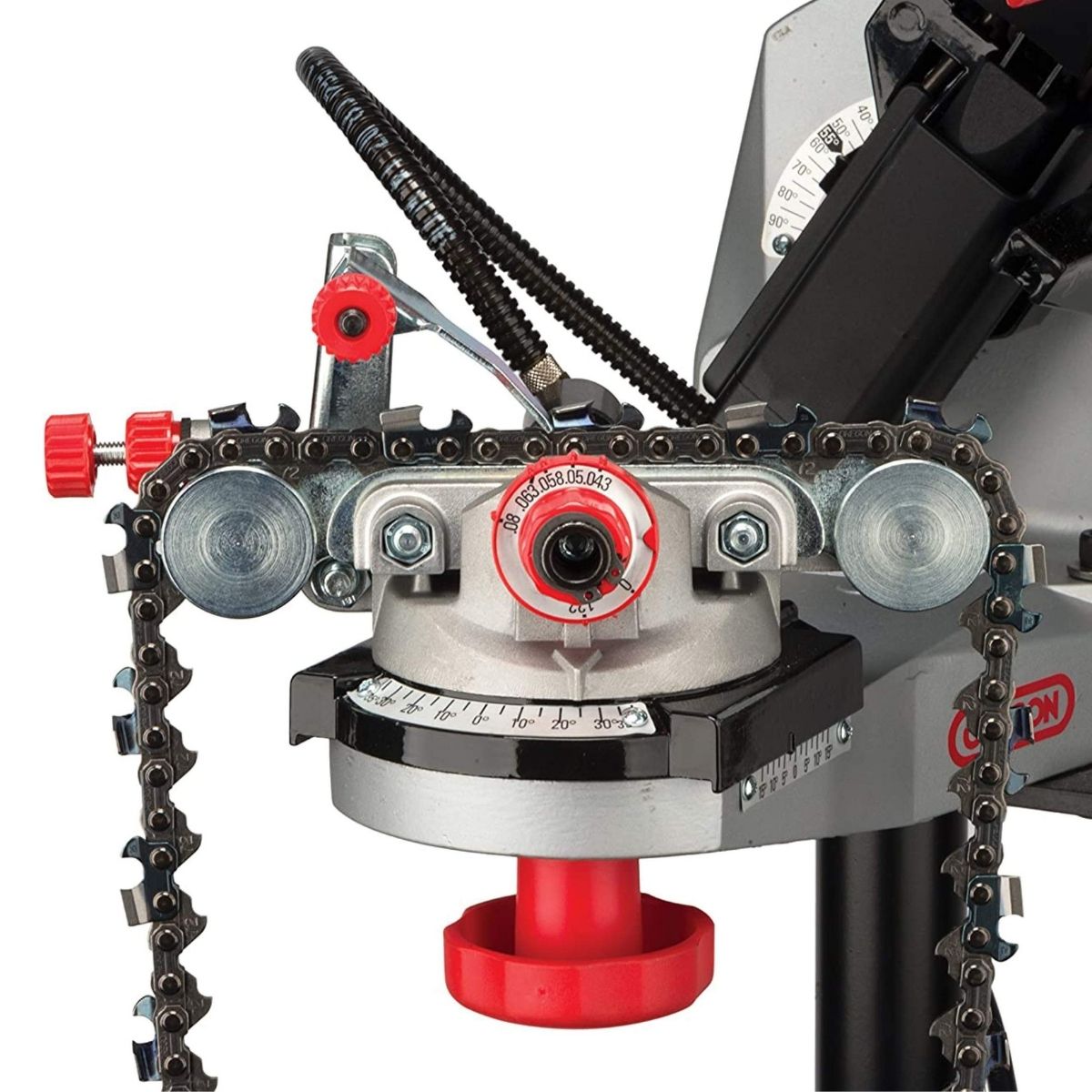

| Hydraulic Assist | Automatically closes the chain vice when the motor and wheel are lowered. |
| Chain Pitch Compatibility | Sharpens 1/4", 3/8" Low Profile, .325", 3/8", .404" and 3/4" pitch chains. |
| Grinding Disc Size | 145mm outside diameter with 22.2mm centre bore. |
| Included 3.2mm Disc | For 1/4", 3/8" Low Profile and .325" chain. |
| Included 4.7mm Disc | For 3/8" and .404" chain. |
| Included 6mm Disc | For raker depth gauge adjustment. |
| Visibility | Built-in lamp for improved visibility while sharpening. |
| Handle | Large ergonomic handle for comfortable operation. |
| Included Accessories | Wheel dressing block, disc profile template and additional 3/4" harvester chain stop assembly. |
Optional upgrade discs are also available:
145mm CBN sharpening disc for steel chains
and
145mm Diamond sharpening disc for tungsten carbide chains.
If you require technical assistance, please contact us.
