GB ProTop Titanium Narrow Kerf Bar UHL .325" .050"

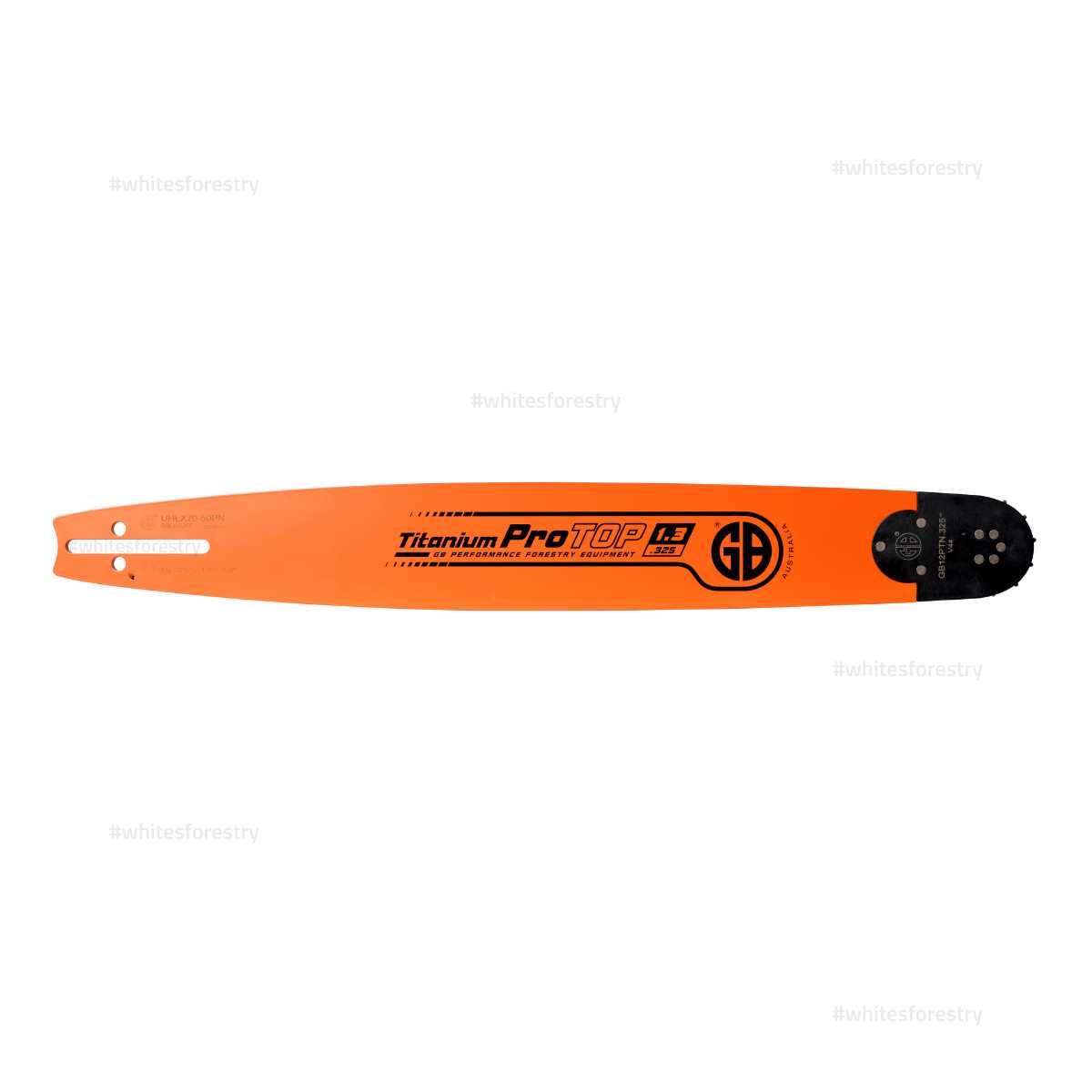

GB ProTop “Titanium” Narrow-Kerf Bar — Husqvarna Small Mount (UHL / UHLX / K095), .325" x .050"

Built for tree care and pro users who want fast, efficient cutting with lower load. ProTop Narrow-Kerf uses a solid, heat-treated alloy-steel body and a replaceable sprocket-nose tip. The reduced kerf width delivers quicker cuts with less power draw and excellent control on medium-size saws.

Key Benefits

• Faster cuts, less load: Narrow-kerf rails remove less material per pass.
• Durable rails: Heat-treated solid body resists groove and tip wear.
• Balanced handling: Precise control for pruning, limbing and felling.
• Lower lifetime cost: Replace the nose assembly instead of the whole bar.

Technical Specs

• Pitch: .325"
• Gauge: .050" (1.3 mm) — Narrow-Kerf

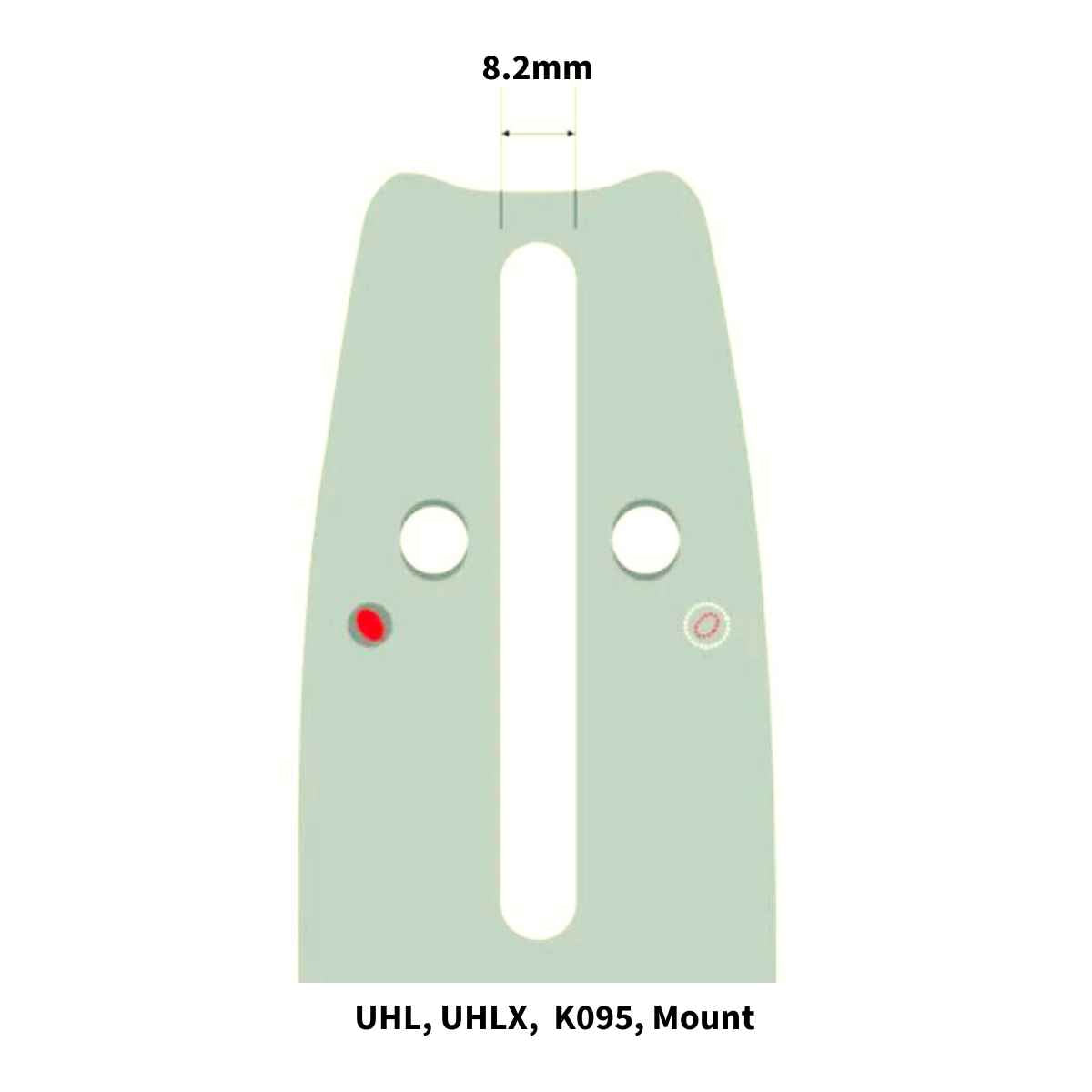

• Mount: UHL / UHLX / K095 (Husqvarna small mount, 8 mm tail)
• Lengths: Select from the menu
• Body: Solid, heat-treated alloy steel (ProTop “Titanium” series)

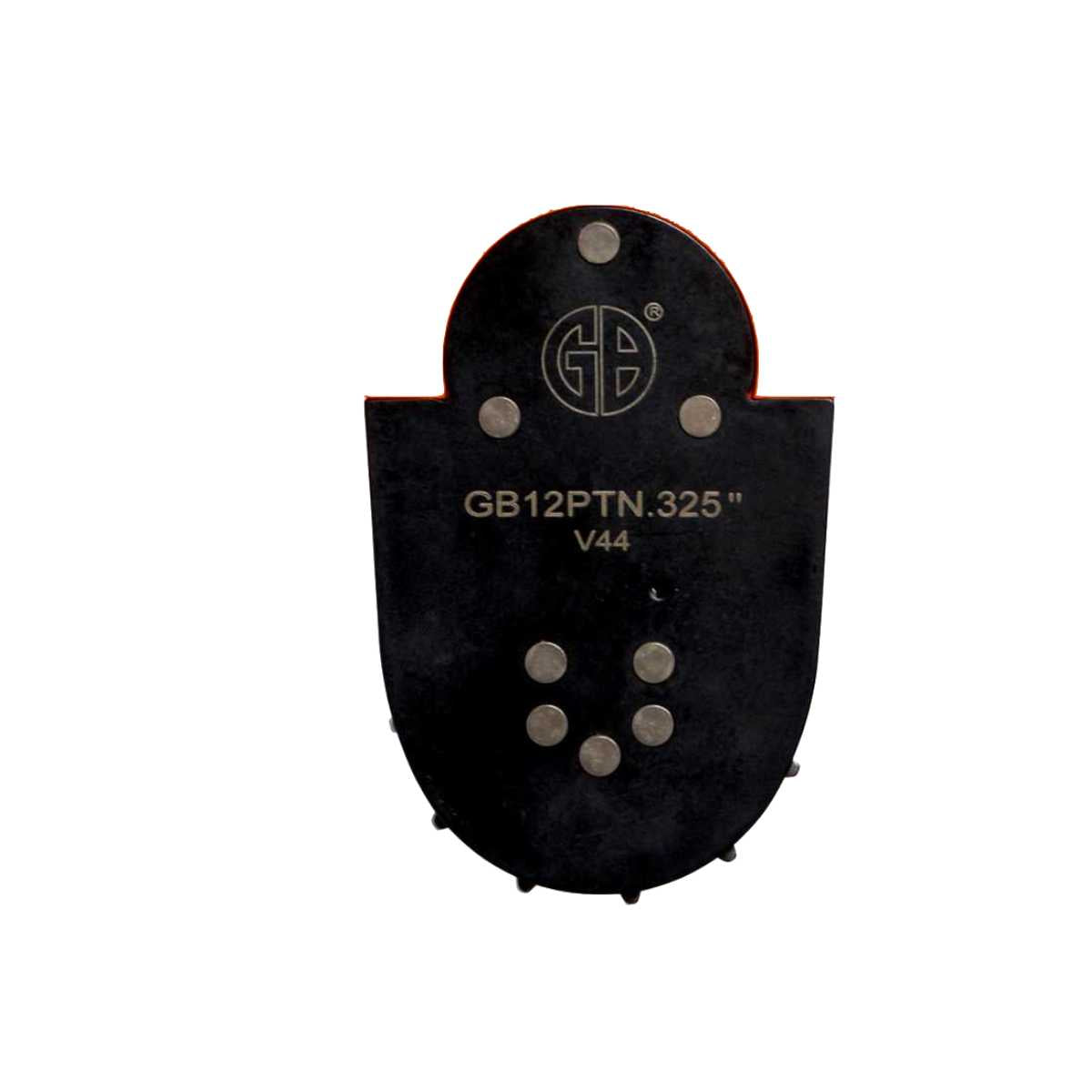

• Tip: Replaceable sprocket nose

Fitment Checklist (Reduce Returns)

• Confirm your bar mount is UHL / UHLX / K095 (Husqvarna small mount).
• Confirm your rim/drive sprocket is .325".
• Use only .325" x .050" Narrow-Kerf chain. Standard .325" x .058" or any 3/8" chain will not fit.

Fits Models (Indicative)

Alpina: 600, 600i, 650, 660, P650, PROF 55, PROF 65, PROF 66

Castor: CP600, CP650

Dolmar: 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 219, 6000, 6400, 6800, PS5000, PS5100, PS600

Husqvarna: 133, 140, 154, 234, 238, 240, 242, 246, 254, 257, 259, 261, 262, 33, 334T, 335XPT, 338XPT, 340, 340E, 345, 345E, 346XP, 350, 350E, 351, 353, 357, 359, 360, 362, 40, 41, 42, 44, 444, 45, 455, 460, 49, 50, 51, 55, EL1200, EL1400, EL1500, EL16, EL400

Makita: DCS520, DCS5200i, DCS540, DCS5430, DCS5431, DCS6000i, DCS6800i, DS431

Oleo-Mac / Olympik: 956, 962, 971, 981, 985

Note: Model lists are indicative; some years/variants use different mounts. If unsure, check the code stamped on your current bar or contact us with your exact saw model and rim size.

Part Numbers (Reference)

Drive-link counts vary by rim size and setup; count the links on your current chain or contact us if unsure.

Maintenance Tips

• Keep bar groove and oil holes clean for proper lubrication.
• Grease the sprocket-nose bearings regularly.
• Flip the bar periodically to even rail wear.
• Set chain tension correctly to maximise bar life.

What’s Included

1 × GB ProTop “Titanium” Narrow-Kerf chainsaw bar (model as selected). Chain and drive sprocket not included.

Compatibility info is a guide only; check your saw, rim/sprocket and existing chain before ordering.
