GB ProTop Titanium Narrow Kerf Bar SN .325" .050"

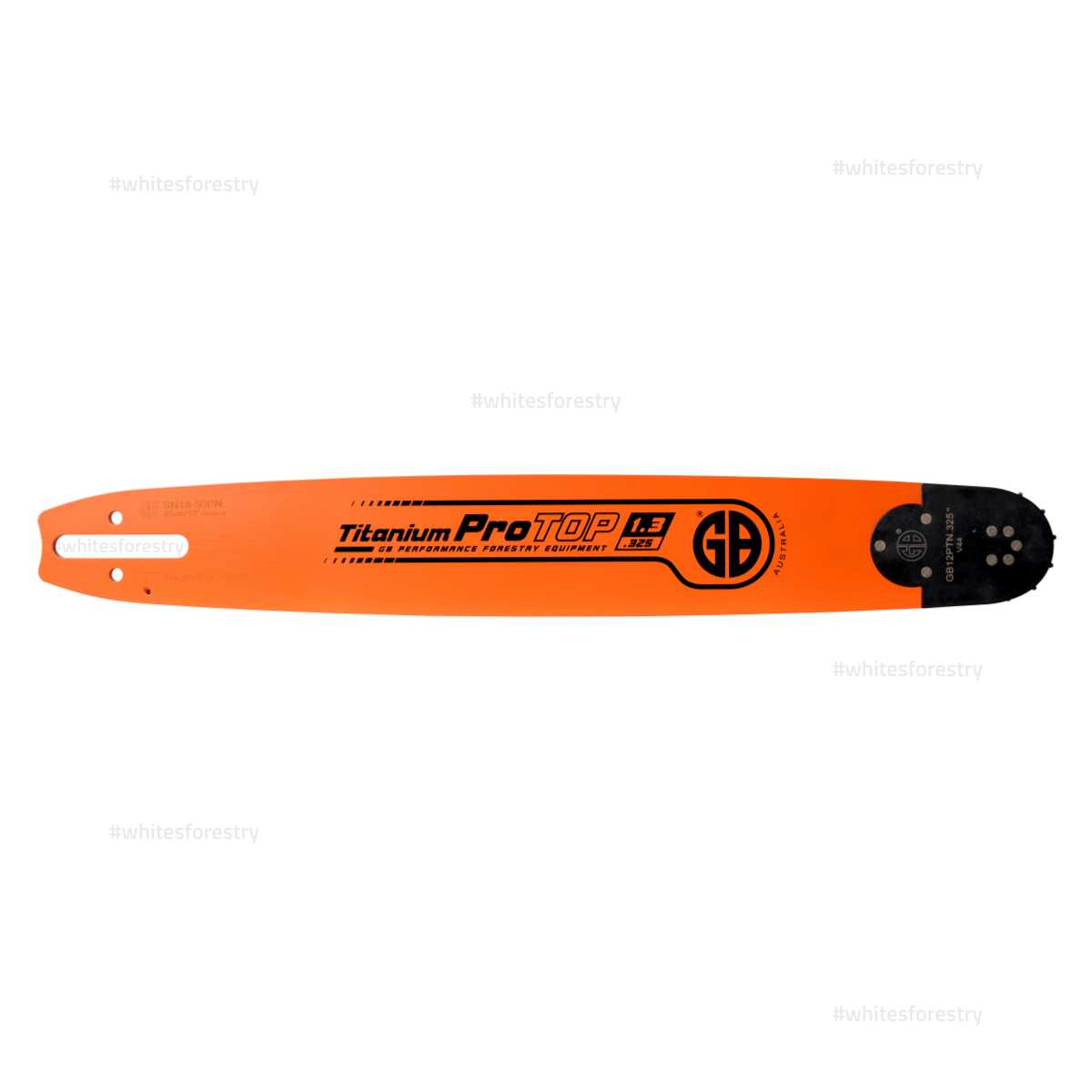

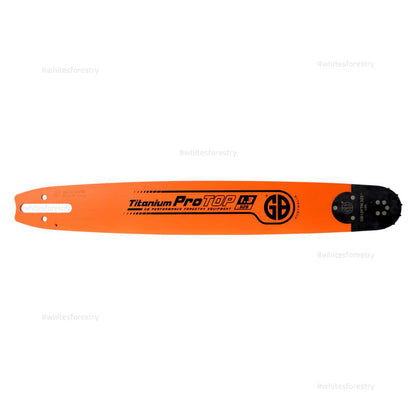

GB ProTop “Titanium” Narrow-Kerf Bar — Stihl SN / D025 (12 mm), .325" × .050"

Built for tree care and pro users who want fast, efficient cuts with lower load. ProTop Narrow-Kerf uses a solid, heat-treated alloy-steel body and a replaceable sprocket-nose tip. The reduced kerf width delivers quicker cuts with less power draw and precise control on medium-size saws.

Key Benefits

• Faster cuts, less load: Narrow-kerf rails remove less material per pass.
• Durable rails: Heat-treated solid body resists groove and tip wear.
• Balanced handling: Precise control for pruning, limbing and felling.
• Lower lifetime cost: Replace the nose assembly instead of the whole bar.

Technical Specs

• Pitch: .325"
• Gauge: .050" (1.3 mm) — Narrow-Kerf
• Mount: SN / D025 (Stihl 3003, 12 mm tail)
• Lengths: Select from the menu
• Body: Solid, heat-treated alloy steel (ProTop “Titanium” series)

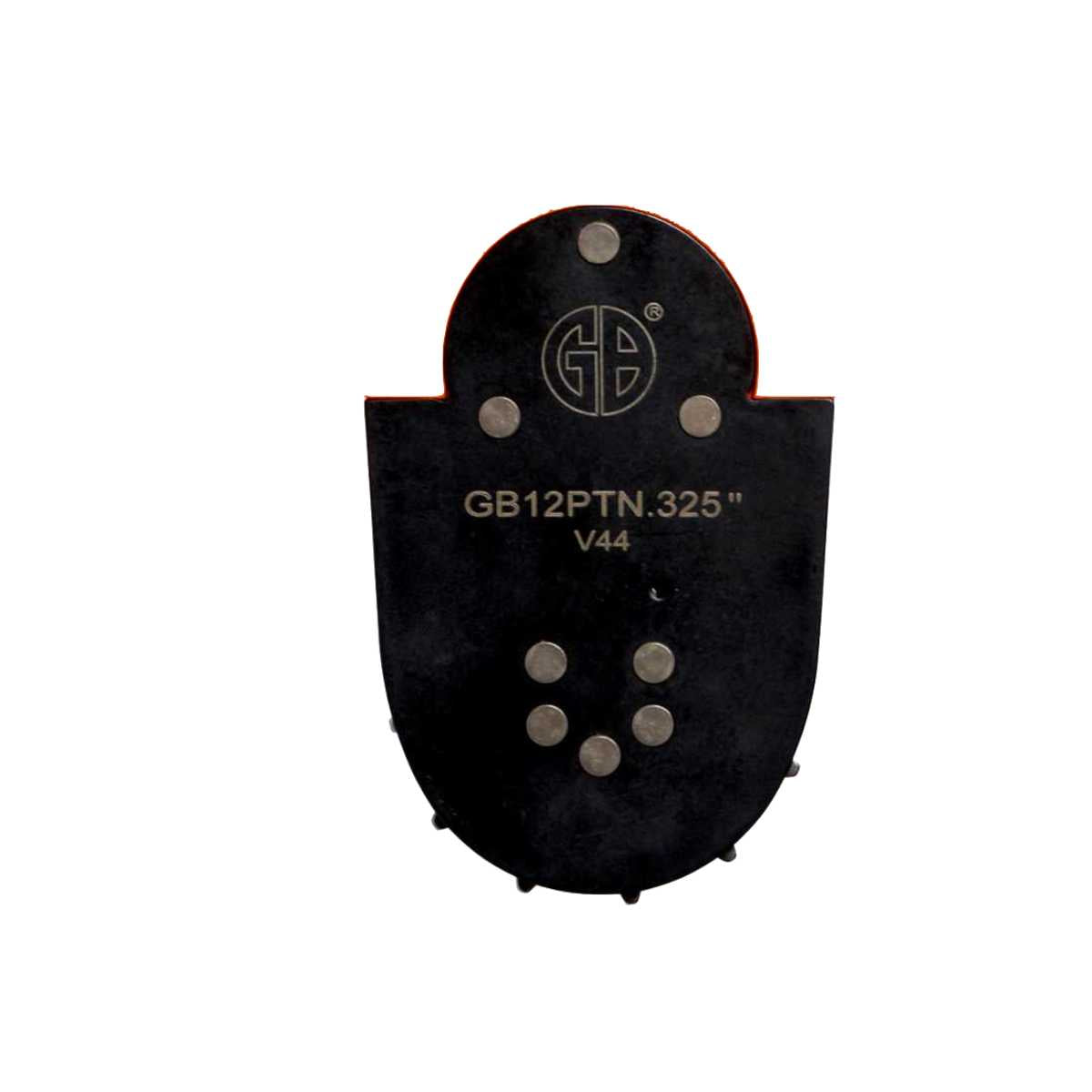

• Tip: Replaceable sprocket nose

Fitment Checklist (Reduce Returns)

• Confirm your bar mount is SN / D025 (Stihl 3003, 12 mm).
• Confirm your rim/drive sprocket is .325".
• Use only .325" × .050" Narrow-Kerf chain. Standard .325" × .063" or any 3/8" chain will not fit.

Important: Requires .325" drive sprocket. Do not use with 3/8" sprockets or 3/8" chain—mismatch can cause damage and void warranty.

Fits Stihl Models (Indicative)

024, 026, 027, 028, 029, 030, 031, 032, 034, 036, 038, 039, 040, 041, 042, 044, 045, 046, 048, 056, 064, 066, E15, E20, E220C, FARMBOSS, MS260, MS261, MS270, MS271, MS280, MS290, MS310, MS360, MS361, MS380, MS381, MS390, MS400, MS440, MS460, MS461, MS462 C, MS500i, MS650, MS660, MS661

Note: Model lists are indicative; some years/variants use different mounts. If unsure, check the code stamped on your current bar or contact us with your exact saw model and rim size.

Part Numbers & Drive-Link Reference

Drive-link (DL) counts are typical references; verify against your current chain. Data supplied by GB Forestry Australia.

Maintenance Tips

• Keep bar groove and oil holes clean for proper lubrication.
• Grease the sprocket-nose bearings regularly.
• Flip the bar periodically to even rail wear.
• Set chain tension correctly to maximise bar life.

What’s Included

1 × GB ProTop “Titanium” Narrow-Kerf chainsaw bar (model as selected). Chain and drive sprocket not included.

Compatibility info is a guide only; check your saw, rim/sprocket and existing chain before ordering.
