GB ProTop Titanium Chainsaw Bar SW A074 Small Stihl

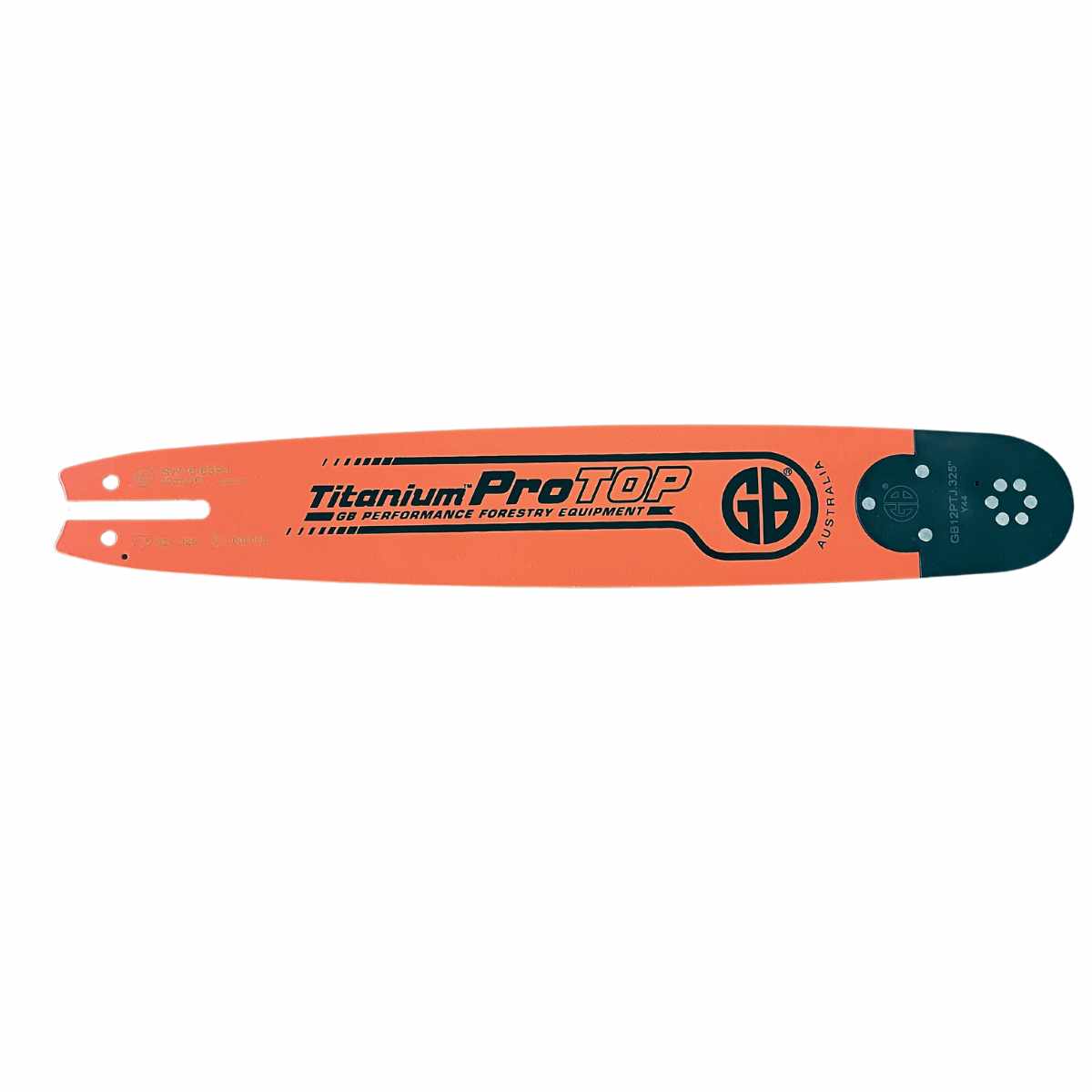

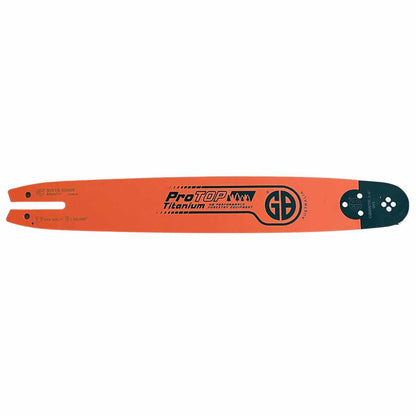

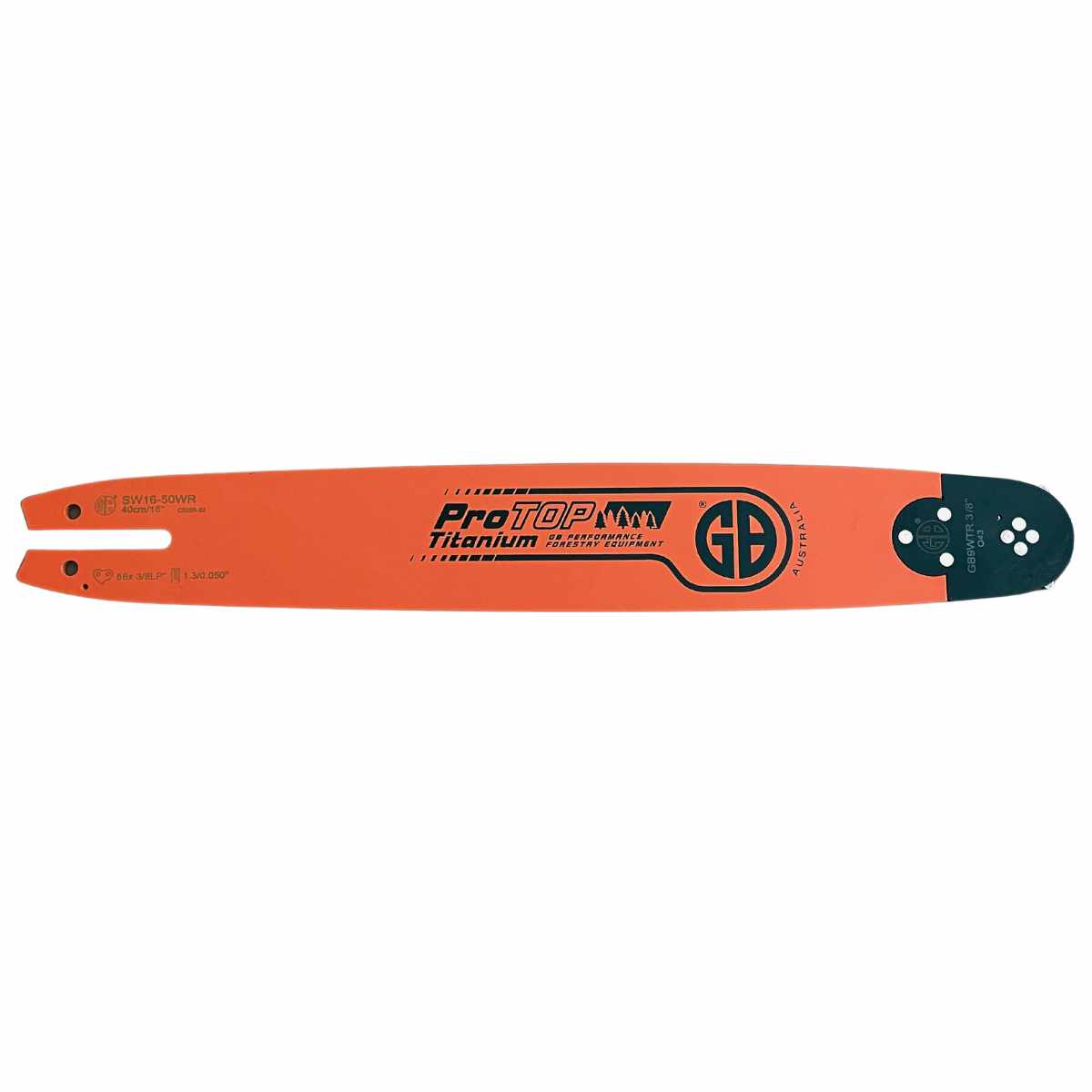

GB ProTop “Titanium” Chainsaw Bar — Stihl Small Mount (SW / A074), Select Pitch & Gauge

Built for modern small/medium saws. ProTop “Titanium” bars use a solid, heat-treated alloy-steel body with a replaceable sprocket-nose tip for smooth feed, stable tracking and long service life at low weight.

Key Benefits

• Low-friction cutting: Sprocket-nose tip reduces drag vs hard-nose bars.
• Durable rails: Heat-treated solid body resists groove and tip wear.
• Balanced handling: Precise control for pruning, limbing and felling.
• Lower lifetime cost: Replace the nose assembly instead of the whole bar.

Technical Specs

• Pitch (select): 3/8 Low-Profile (3/8LP) or .325"
• Gauge (select): .050" or .063" (check your chain/bar groove)
• Mount: SW / A074 (Stihl small-mount 3005, 8.2 mm tail)
• Lengths: Select from the menu
• Body: Solid, heat-treated alloy steel (ProTop “Titanium” series)
• Tip: Replaceable sprocket nose

Fitment Checklist (Reduce Returns)

• Confirm your bar mount is SW / A074 (Stihl 3005 small-mount).
• Match bar pitch to your drive sprocket pitch (3/8LP or .325").
• Match chain gauge to the bar groove (.050" or .063").

Important: Bar pitch must match the saw’s drive sprocket. Mixing 3/8LP with .325" (or wrong gauge) can cause damage and void warranty. Ask if unsure.

Fits Models (Indicative)

Stihl: 009, 010, 011, 012, 015, 017, 018, 019, 020, 021, 023, 025, E10, E14, E160, E180, MS170, MS180, MS190T, MS191, MS191T, MS192T, MS200, MS200T, MS210, MS250

Alpina: E1.6, E1.8, E160, E170, P360, P370, P390, S35, S40

Castor: CP360, CP370, CP380, EL160, EL170, HIT 1.6/1.8

Efco: 114E, 116E, 117E, 119E, 132, 134, 135, 136, 138, 140, 141, 155E

Oleo-Mac / Olympik: 1700, 240, 241, 244, 344, 931, 935, E1900, OM-E200

Note: Model lists are indicative; some years/variants use different mounts. If unsure, check the code stamped on your current bar or contact us with your exact saw model and rim size.

Part Numbers & Drive-Link Reference

DL counts are typical references; verify against your current chain. Data supplied by GB Forestry Australia.

Maintenance Tips

• Keep bar groove and oil holes clean for proper lubrication.
• Grease the sprocket-nose bearings regularly.
• Flip the bar periodically to even rail wear.
• Set chain tension correctly to maximise bar life.

What’s Included

1 × GB ProTop “Titanium” chainsaw bar (model as selected). Chain and drive sprocket not included.

Compatibility info is a guide only; check your saw, rim/sprocket and existing chain before ordering.
