GB ProTop Titanium Chainsaw Bar 3/8" .063" SN D025

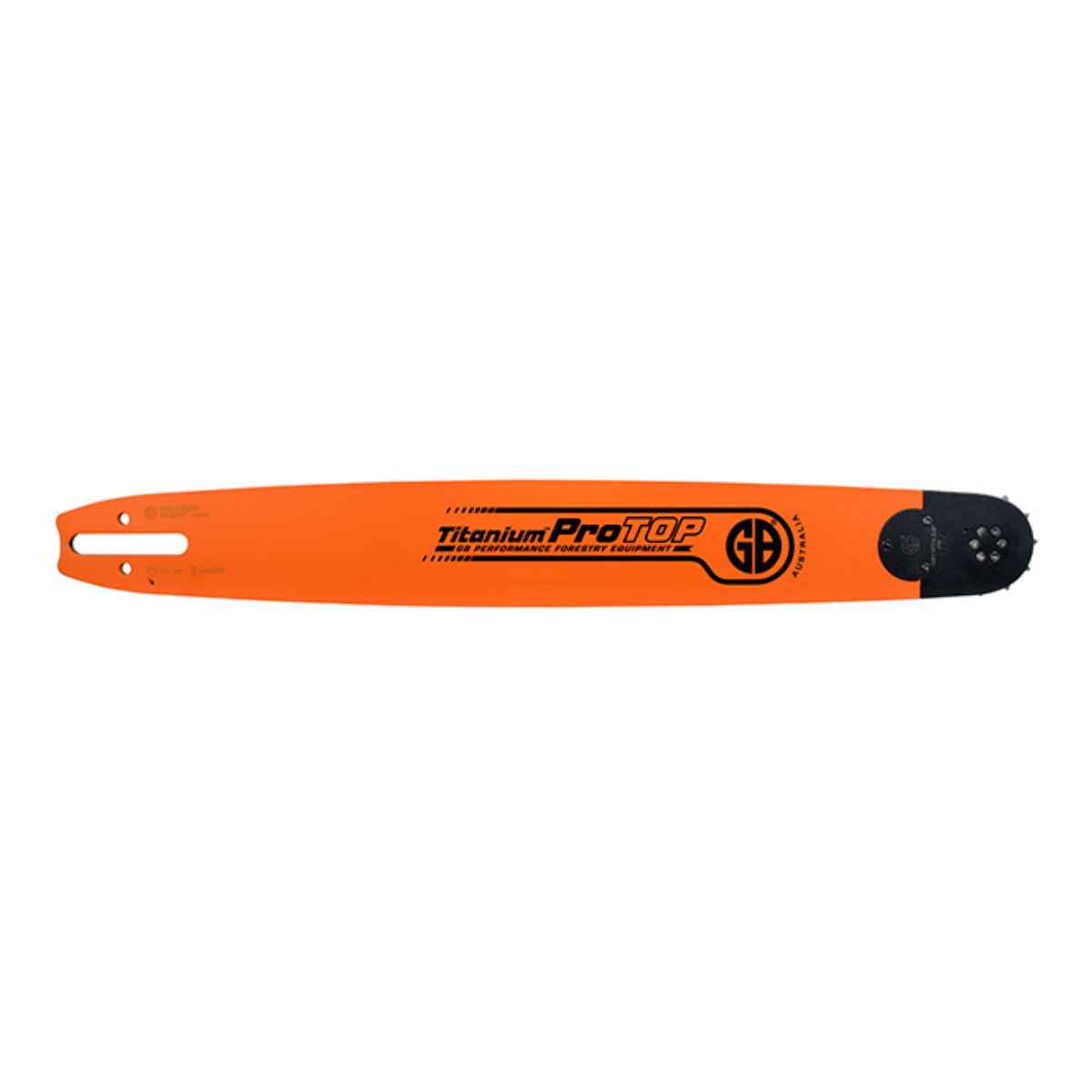

GB ProTop Titanium Chainsaw Bar — Professional Grade Performance

Built for pro users who want long service life, clean tracking, and low downtime. ProTop “Titanium” series bars use a solid, heat-treated alloy-steel body and a replaceable sprocket-nose tip for smooth cutting and dependable durability.

Key Benefits

• Low-friction feed: Sprocket-nose tip reduces drag versus hard-nose bars for efficient cutting.
• Durable rails: Solid, heat-treated body resists groove wear in demanding use.
• Balanced handling: Stable tracking and precise control for felling, bucking and limbing.
• Lower lifetime cost: Replace the nose assembly instead of the entire bar when worn.

Technical Specs

• Pitch: 3/8"
• Gauge: .063"

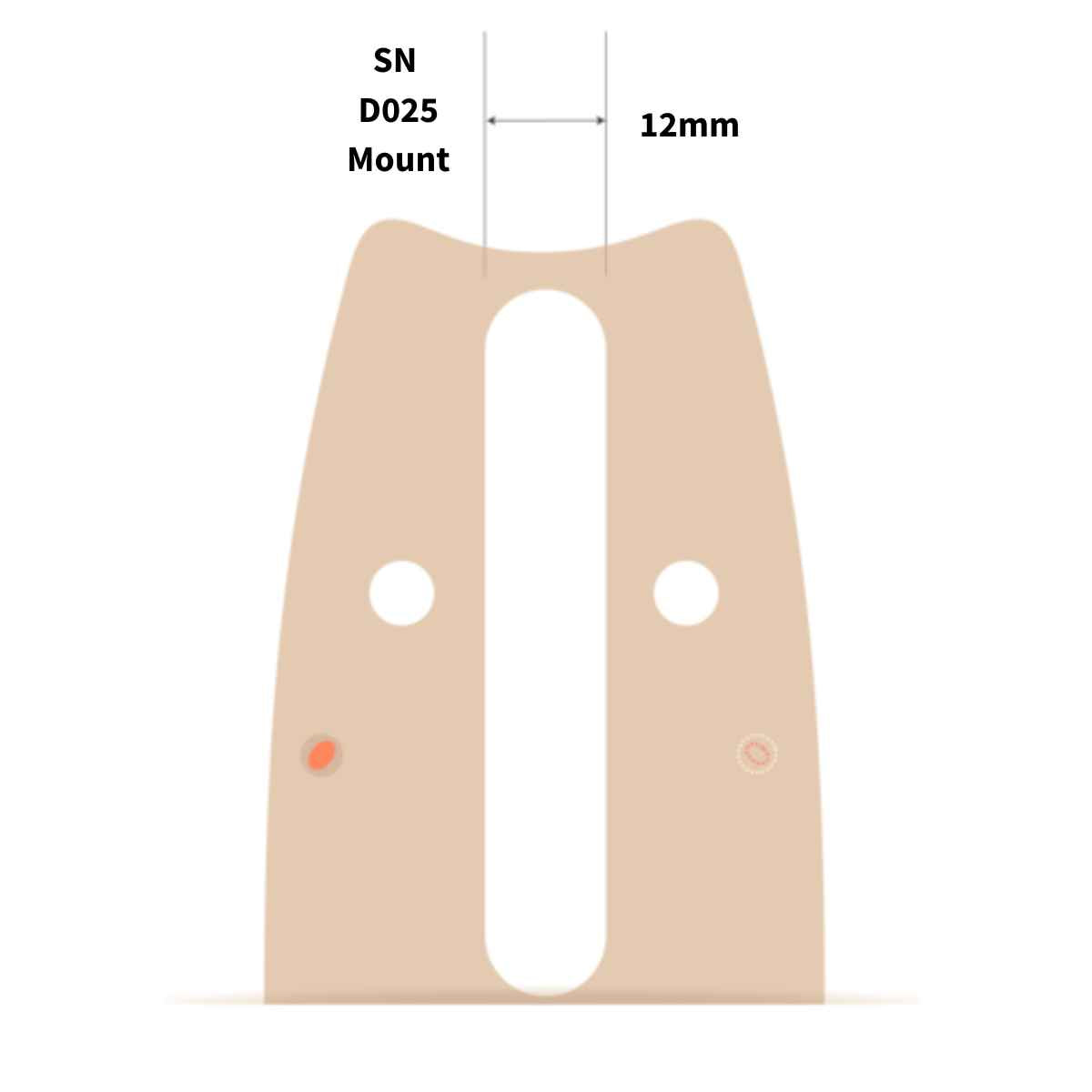

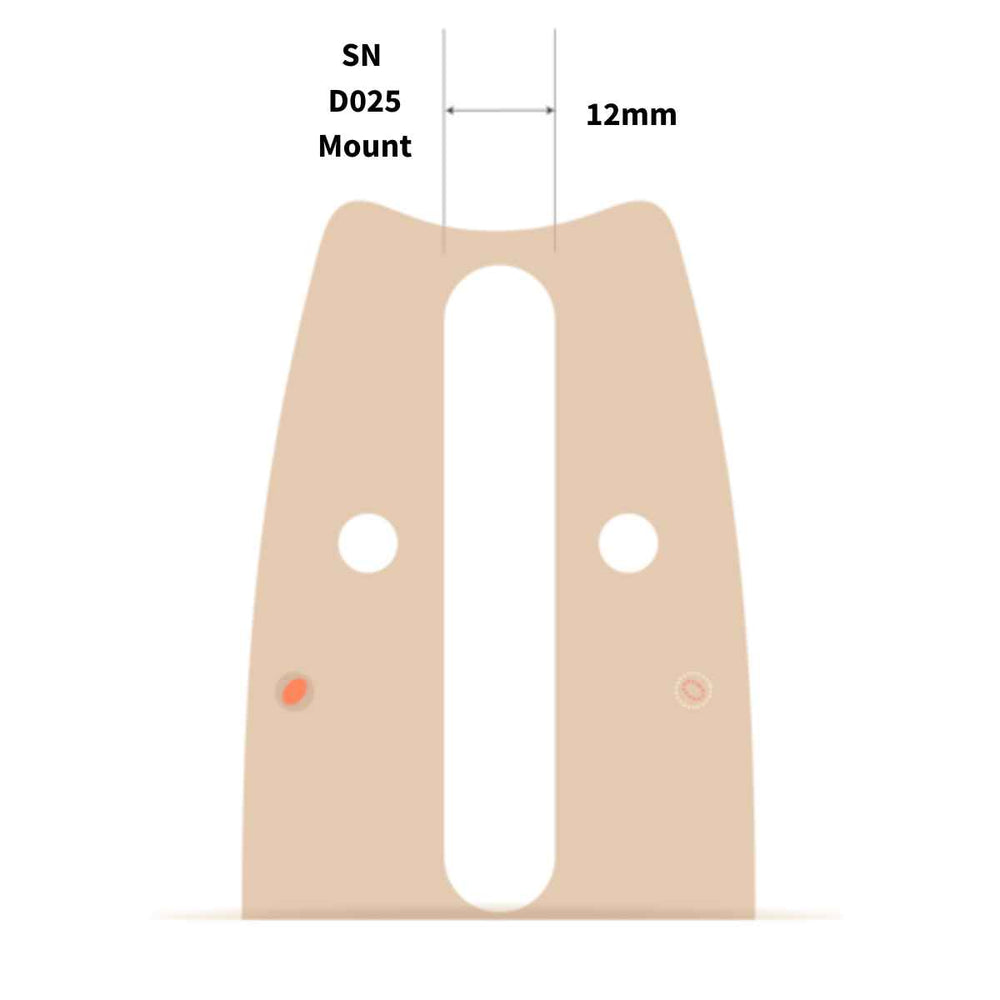

• Mount: SN / D025 (Stihl 3003 pattern)
• Body: Solid, heat-treated alloy steel (ProTop “Titanium” series)

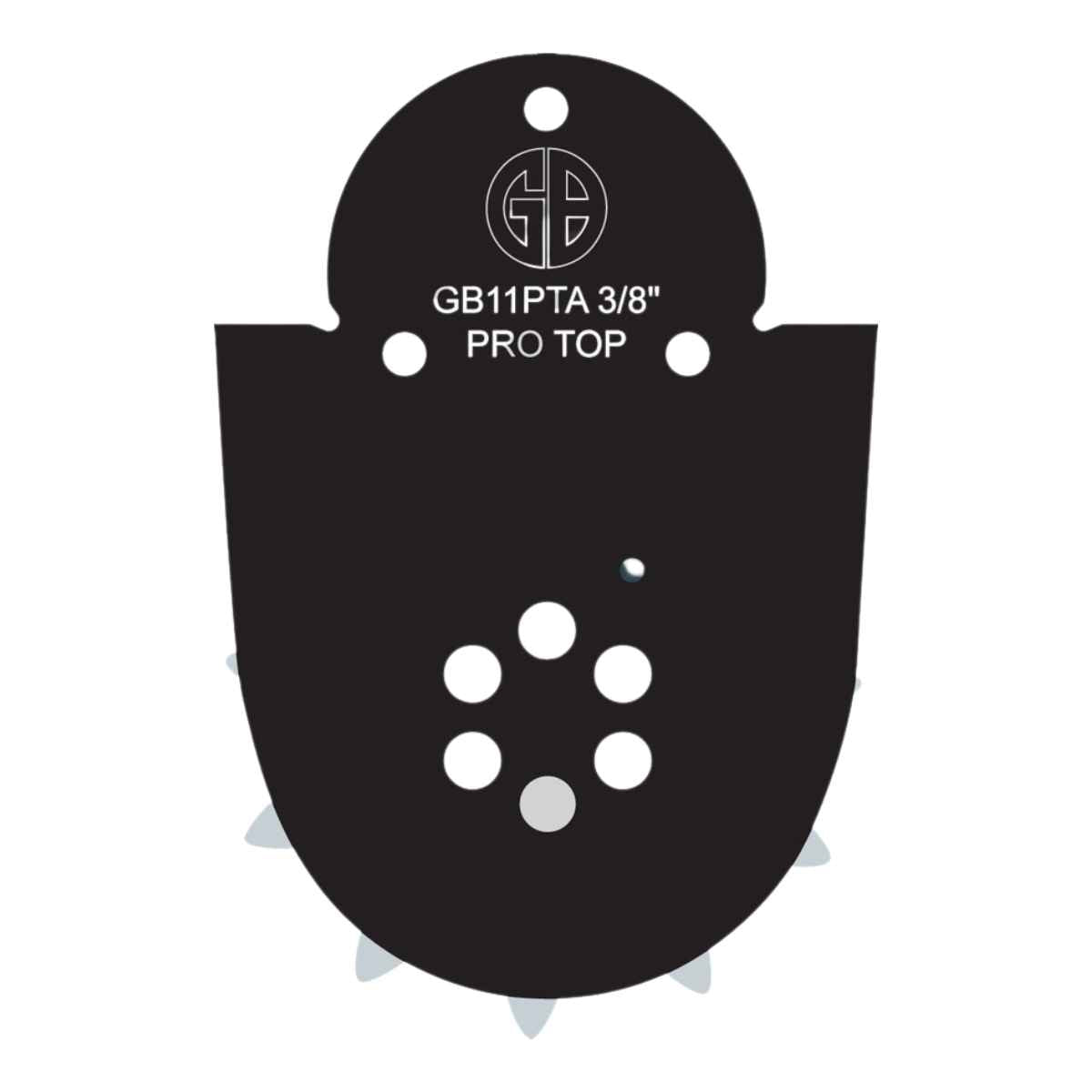

• Tip: Replaceable sprocket nose
• Applications: Professional forestry, arboriculture, logging, firewood

Fitment Checklist (Reduce Returns)

• Confirm your saw runs 3/8" pitch and .063" gauge chain.
• Confirm your bar mount is SN / D025 (Stihl 3003).
• Match the drive link (DL) count below to your chain length.

Fits Stihl Models

024, 026, 027, 028, 029, 030, 031, 032, 034, 036, 038, 039, 040, 041, 042, 044, 045, 046, 048, 056, 064, 066, E15, E20, E220C, FARMBOSS, MS260, MS261, MS270, MS271, MS280, MS290, MS310, MS360, MS361, MS380, MS381, MS390, MS400, MS440, MS460, MS461, MS462 C, MS500i, MS650, MS660, MS661

Tip: Make sure your drive sprocket is 3/8". Model list is indicative, not exhaustive.

Important Chain Length Notes

• 22" (SN22-63PA):
  • Install with 75DL by removing clutch c-clip & rim to loop chain; refit before operation.
  • 76DL tensions at ~85% of adjuster travel (near maximum).
• 42" (SN42-63PA):
  • Install with 134DL by removing clutch c-clip & rim to loop chain; refit before operation.
  • 135DL tensions at ~85% of adjuster travel (near maximum).

Note: Adjuster position varies with rim size, bar wear and setup. Always reinstall the clutch c-clip and rim sprocket before running the saw.

Drive Link Reference

Approximate counts based on 7-tooth rim. Data supplied by GB Forestry Australia.

Part #	Length	Drive Links	Bar Weight (kg)
SN16-63PA	16"	60	1.1
SN18-63PA	18"	66	1.2
SN20-63PA	20"	72	1.3
SN22-63PA	22"	75–76*	1.4
SN25-63PA	25"	84	1.6
SN28-63PA	28"	91	1.8
SN30-63PA	30"	97	2.0
SN32-63PA	32"	105	2.2
SN36-63PA	36"	114	2.4
SN42-63PA	42"	134–135*	3.0

*See “Important Chain Length Notes” for SN22-63PA & SN42-63PA tension guidance.

Customer Feedback

“Outstanding wear life and smooth tracking on pro saws. Exactly what we expect from GB.”

Maintenance Tips

• Keep bar groove and oil holes clean for proper lubrication.
• Grease the sprocket-nose bearings regularly.
• Flip the bar periodically to even rail wear.
• Set chain tension correctly to maximise bar life.

What’s Included

1 × GB ProTop “Titanium” chainsaw bar (model as selected). Chain and drive sprocket not included.

Why Buy From Whites Forestry Equipment

• Specialist advice and after-sales support.
• Australian stock and prompt dispatch.
• GST tax invoice supplied.

Complete Your Setup

• 3/8" .063" professional chain (e.g., full-chisel).
• Sprocket-nose grease gun.
• Round files / filing guide to suit your chain pitch.

FAQs

Q: Will this fit my saw?
A: If your saw uses the SN/D025 mount and 3/8" .063" chain, you’re good. Check your drive link count against the table.

Q: Which DL count should I choose?
A: Match the bar length to the DL count shown. If in doubt, count the links on your current chain or contact us with your saw model and rim size.

Compatibility and DL data are guides only; check your saw, rim/sprocket and existing chain before ordering.
