GB ProTop Titanium Chainsaw Bar 3/8" HV D009 Husqvarna

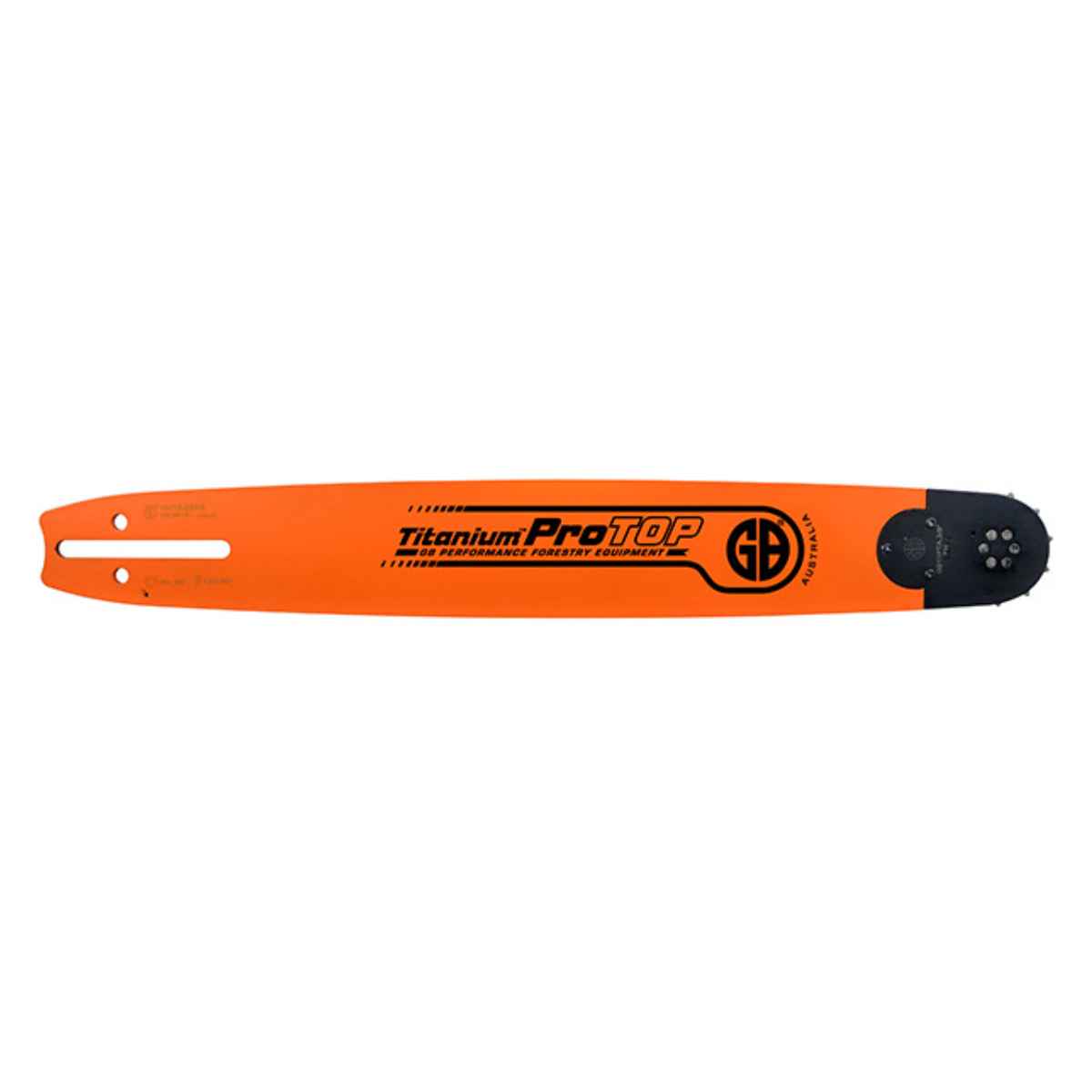

GB ProTop “Titanium” Chainsaw Bar — Husqvarna Large Mount (HV / D009)

Built for demanding professional users. ProTop “Titanium” bars pair a solid, heat-treated alloy-steel body with a replaceable sprocket-nose tip for smooth feed, stable tracking and long service life on high-power saws.

Key Benefits

• Low-friction cutting: Sprocket-nose tip reduces drag vs hard-nose bars.
• Durable rails: Heat-treated solid body resists groove and tip wear.
• Balanced handling: Confident control for felling, bucking and limbing.
• Lower lifetime cost: Replace the nose assembly rather than the whole bar.

Technical Specs

• Pitch: 3/8"
• Gauge options: .058" (1.5 mm) or .063" (1.6 mm)

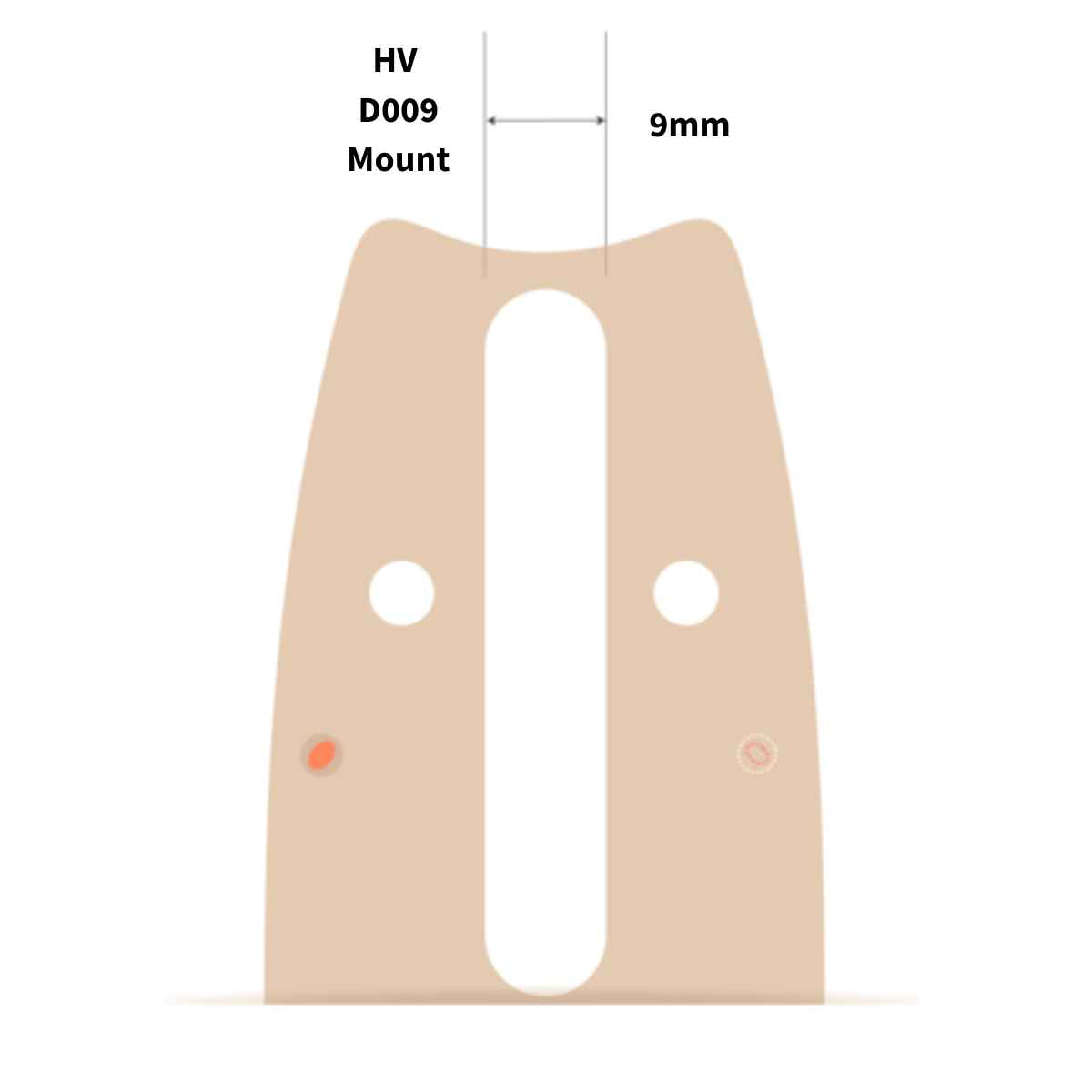

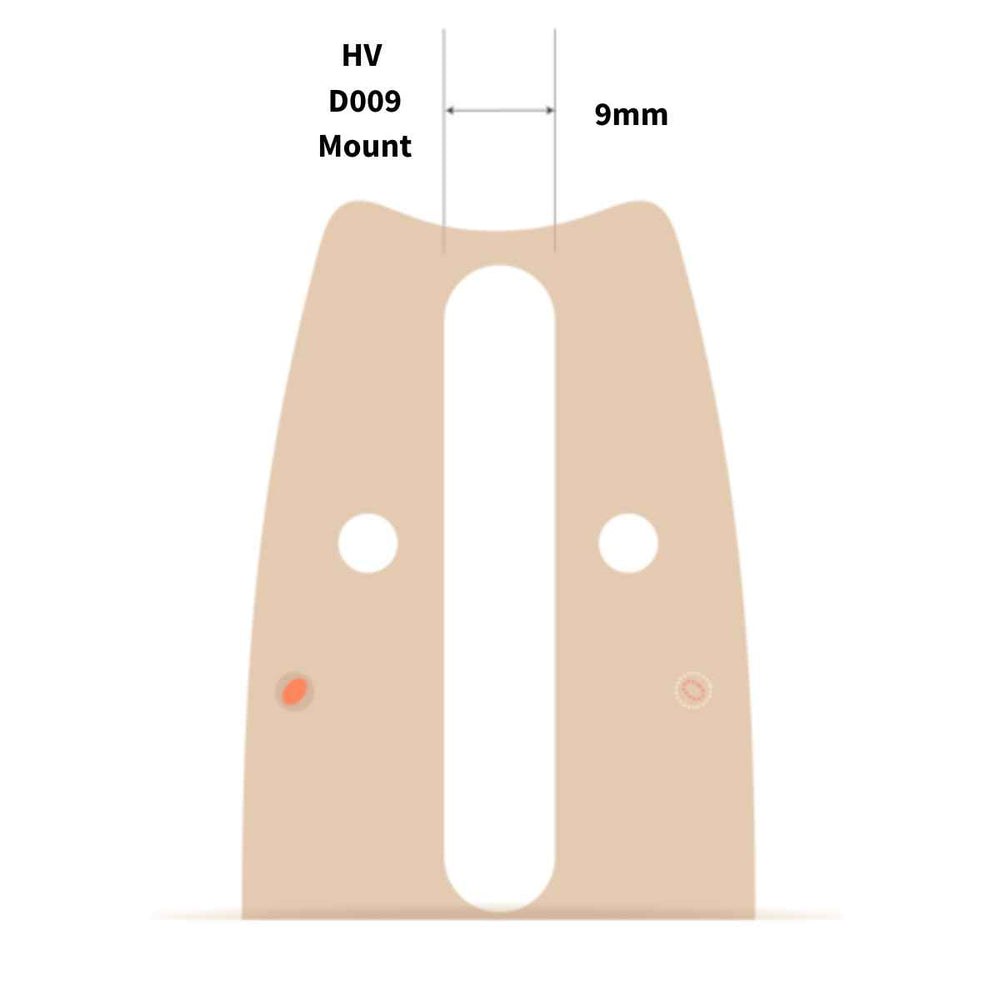

• Mount: HV / D009 (Husqvarna large mount)
• Lengths: Select from the menu
• Body: Solid, heat-treated alloy steel (ProTop “Titanium” series)

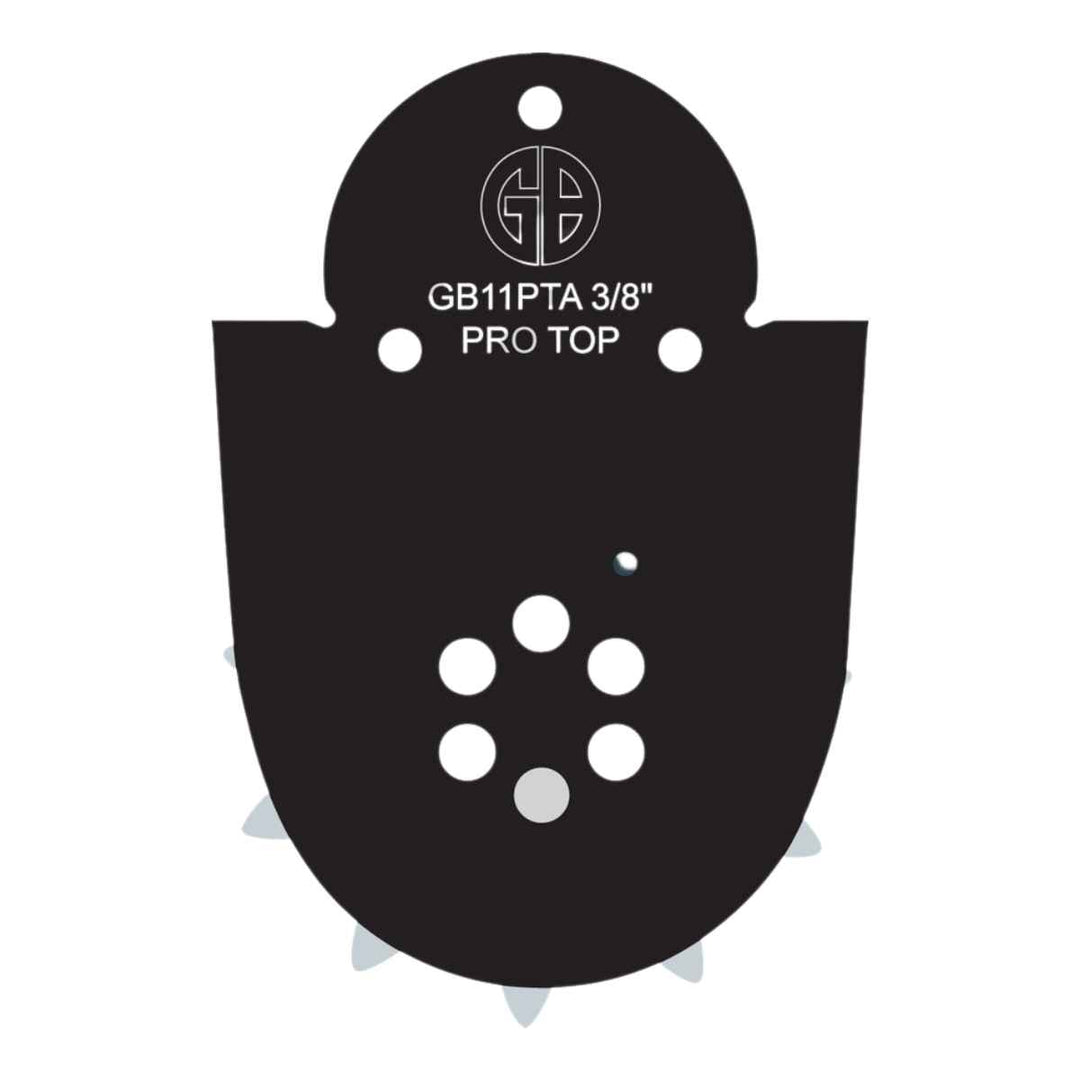

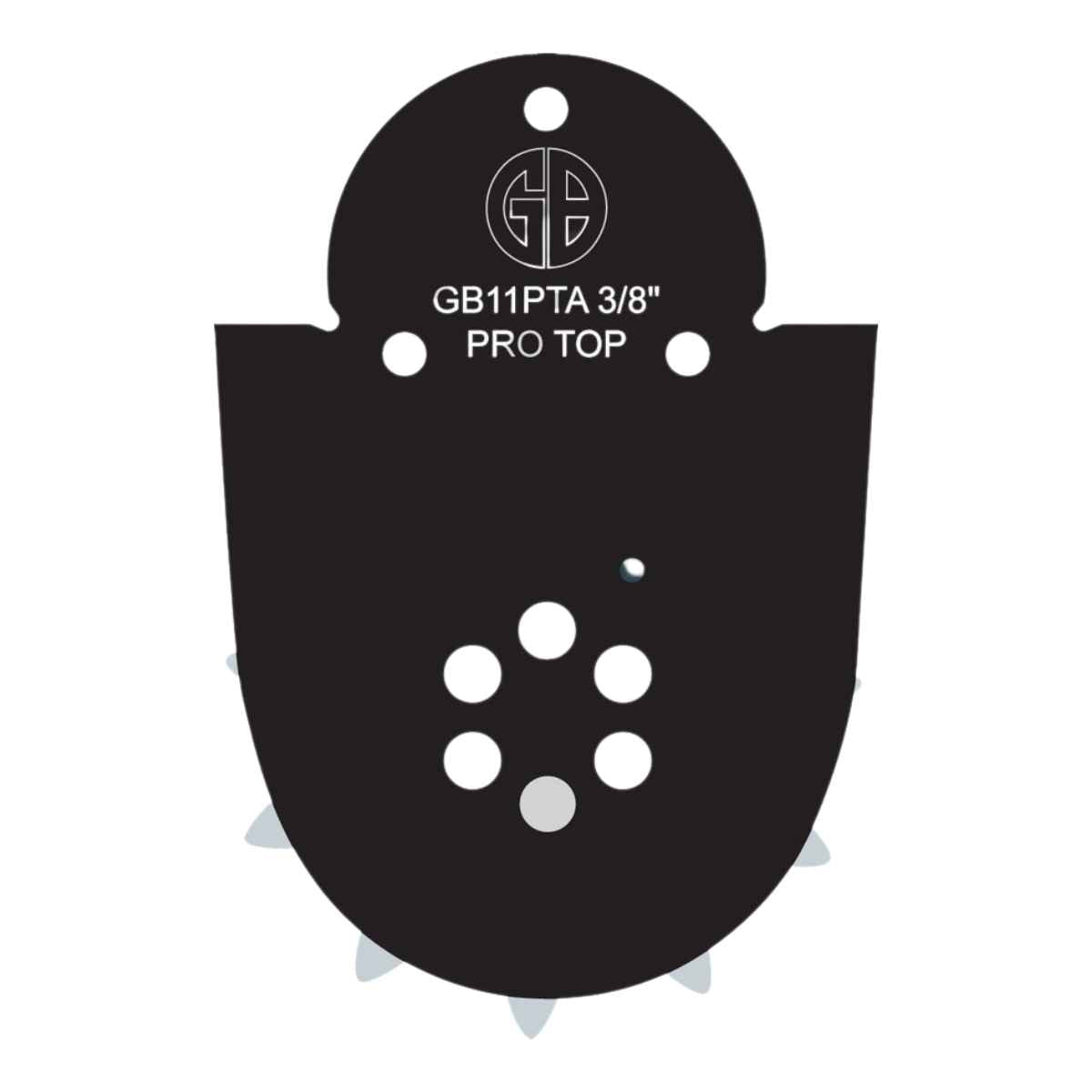

• Tip: Replaceable sprocket nose

Fitment Checklist (Reduce Returns)

• Confirm your saw uses the HV / D009 bar mount (Husqvarna large mount).
• Confirm your setup is 3/8" pitch and your chosen gauge (.058" or .063").
• Match your chain’s drive-link (DL) count to the length table below.

Fits Models (Indicative)

Dolmar: PS6400, PS7300, PS7900

Husqvarna: 1100, 160, 162, 163, 180, 181, 185, 2100XP, 2101, 260, 261, 263, 266, 268, 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 480, 570, 572, 575XP, 585, 592XP, 61, 62, 65, 66, 70, 77

Jonsered: 2063, 2065, 2071, 2077, 2083, 2094, 2095, 2156, 2159, 2163, 2165, 2171, 2186, 625, 630, 635, 670 West Coast

Makita: DCS6400, DCS6401, DCS7300, DCS7301, DCS7900, DCS7901

Poulan / Poulan Pro: 375, 395, 415, 425, 475, PP445, PP505, PP655

Shindaiwa: 1091, 550, 575, 577, 680, 695, 757, 801, 901

Solo: 603, 662, 665, 667, 670, 675, 680, 681, 690, 694

Note: Some models/years may use different mounts (e.g., “small-mount” variants). If unsure, check your current bar’s mount code or contact us with your exact model and chassis.

Drive-Link & Weight Reference

Approximate counts based on a 7-tooth rim. Data supplied by GB Forestry Australia.

Lengths/weights are typical; minor variations can occur across production.

Maintenance Tips

• Keep bar groove and oil holes clean for proper lubrication.
• Grease the sprocket-nose bearings regularly.
• Flip the bar periodically to even rail wear.
• Set chain tension correctly to maximise bar life.

What’s Included

1 × GB ProTop “Titanium” chainsaw bar (model as selected). Chain and drive sprocket not included.

Compatibility and DL data are guides only; check your saw, rim/sprocket and existing chain before ordering.
