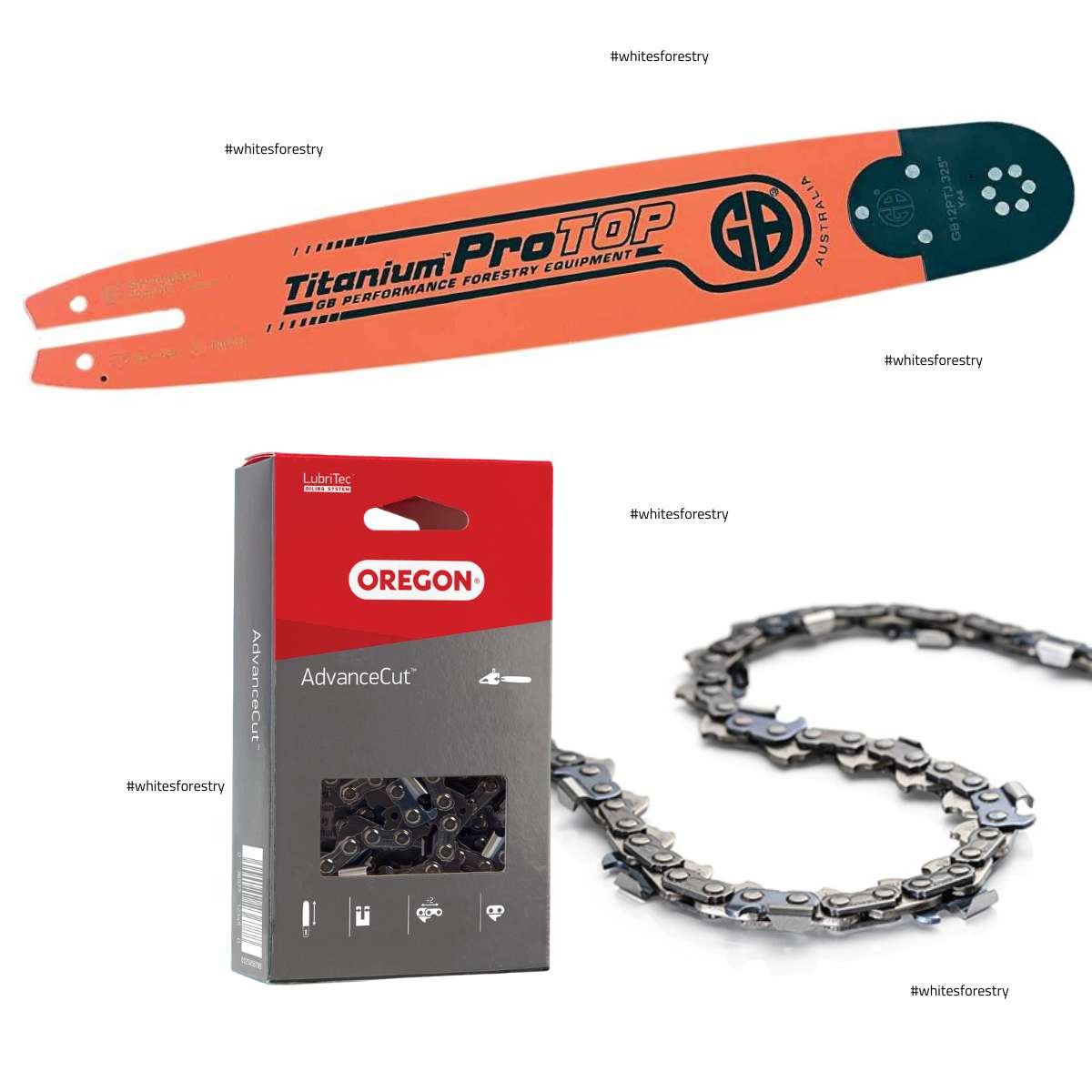

GB ProTop Bar (SW / A074) + 1 × Oregon Semi-Chisel Chain
Australian Stock • GST Invoice • Fast Victorian Dispatch • Expert Support
Select your options: Choose pitch (3/8LP or .325"), gauge (.050" or .063"), and length from the menu. Supplied with 1 × Oregon Semi-Chisel chain matched to your selection.
Lightweight, Durable & Ready to Work
One-piece solid bar with replaceable sprocket-nose. The genuine GB ProTop “Titanium” bar is precision-engineered from lightweight alloy steel for long life and easy manoeuvrability. The sprocket-nose supports the chain around the tip to reduce friction and enable higher chain tension for smooth, efficient cutting.
Bar Specifications

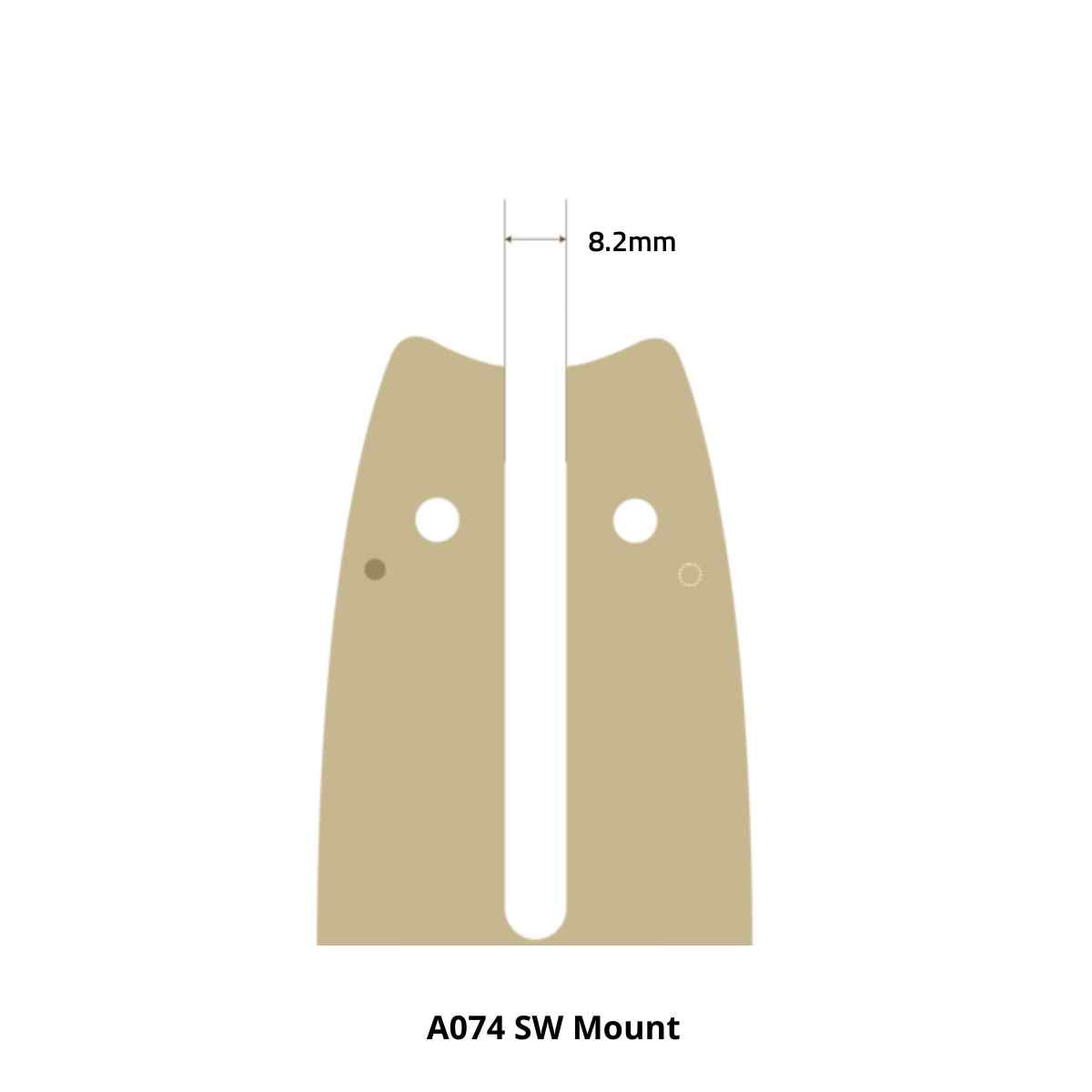

- Mount: SW / A074 (8.2 mm)
- Pitch options: 3/8LP (low profile) or .325"
- Gauge options: .050" or .063"
- Construction: Solid alloy steel body • Replaceable sprocket nose
- Lengths: 14" – 18" (see matrix below)
Included Chain
- Brand & Style: Oregon Semi-Chisel
- Pitch / Gauge: Supplied to match your chosen bar
- Benefit: Long cutting life and easy sharpening
Will It Fit?
- Your saw uses the SW / A074 bar mount.
- Bar nose, chain and motor drive sprocket must match in pitch (3/8LP or .325").
- Select the gauge that matches your saw (.050" or .063").
Compatible Models (Indicative)
STIHL: 009, 010, 011, 012, 015, 017, 018, 019, 020, 021, 023, 025, E10, E14, E160, E180, MS170, MS180, MS190T, MS191, MS191T, MS192T, MS200, MS200T, MS210, MS211, MS231, MS250, MS251, MST190T
ALPINA: E1.6, E1.8, E160, E170, P360, P370, P390, S35, S40
CASTOR: CP360, CP370, CP380, EL160, EL170, HIT 1.6/1.8
EFCO: 114E, 116E, 117E, 119E, 132, 134, 135, 136, 138, 140, 141, 155E
OLEO MAC & OLYMPIK: 1700, 240, 241, 244, 344, 931, 935, E1900, OM-E200
Note: Some models ship with different sprocket pitches. Check your motor sprocket before ordering.
Bar & Chain Matrix (SW / A074)
| #Part | Length | Pitch | Gauge | Drive Links | Weight (kg) |
|---|---|---|---|---|---|
| SW14-50WR | 14" | 3/8LP | .050" | 50 | 0.65 |
| SW16-50WR | 16" | 3/8LP | .050" | 55 | 0.75 |
| SW18-50WR | 18" | 3/8LP | .050" | 60 | 0.85 |
| SW16-63PJ | 16" | .325" | .063" | 62 | 0.90 |
| SW18-63PJ | 18" | .325" | .063" | 68 | 1.30 |
Setup & Care
- Match bar nose, chain and motor drive sprocket to the same pitch (3/8LP or .325").
- Set correct chain tension and keep oil holes and bar groove clean.
- Flip the bar periodically to even rail wear.
- File to the chain manufacturer’s angles for best results.
Why Choose Whites Forestry Equipment?
- Specialist advice from forestry professionals
- Australian stock: Fast dispatch from Victoria
- Authenticity: Authorised distributors of genuine GB & Carlton products
- Business-ready: GST tax invoice and after-sales support
Important: Compatibility information is a guide only. Confirm mount, pitch, gauge and drive-link count for your saw and sprocket before ordering.
