GB ProTop Bar + Carlton Chain Combo SW A074 Small Stihl

GB ProTop Bar + Carlton Chain Combo SW A074 Small Stihl

Length
$135.00
$135.00
🔥SALE Sold out
Taxes included. Shipping calculated at checkout.

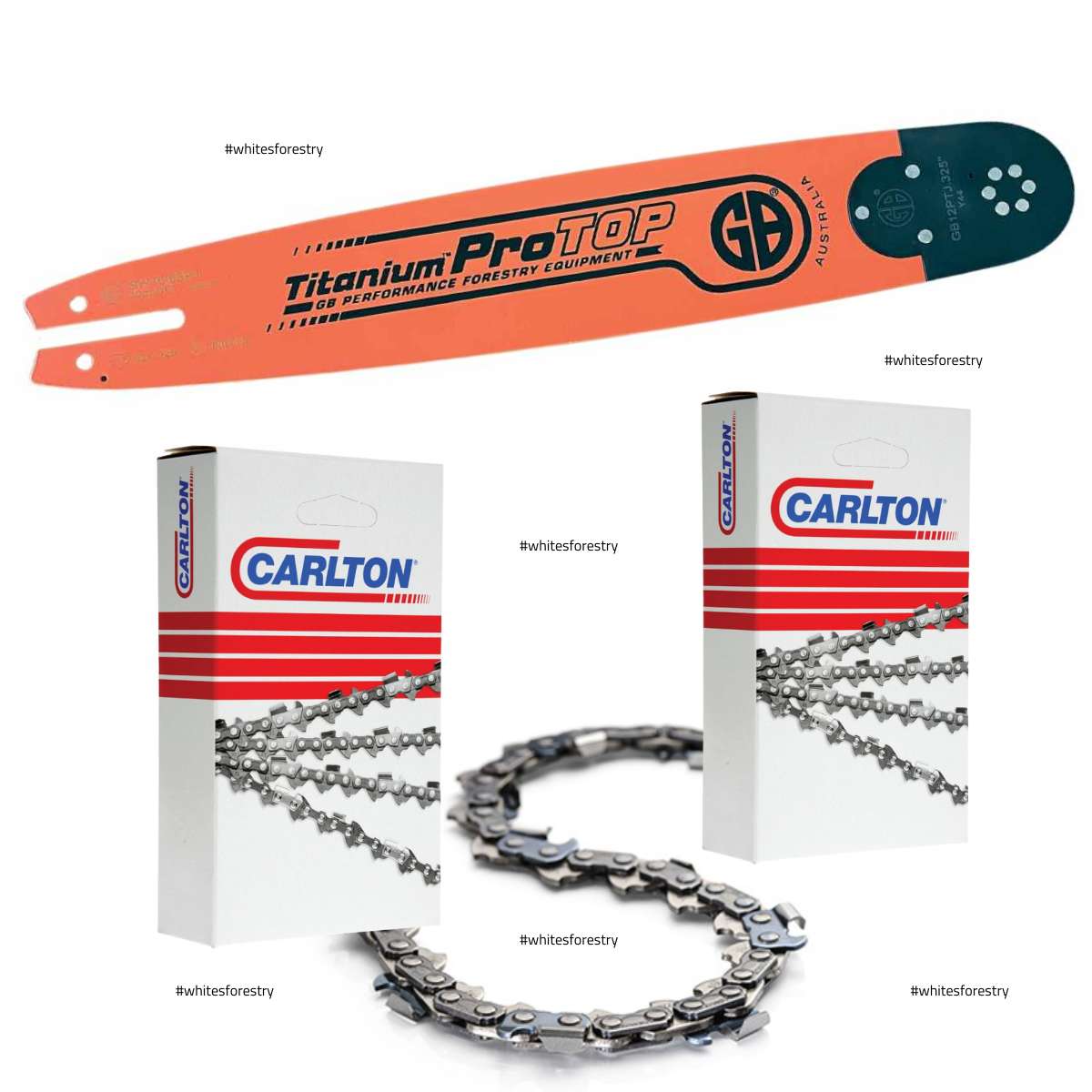

GB ProTop Bar (SW / A074) + 2 × Carlton Semi-Chisel Chains

Australian Stock • GST Invoice • Fast Victorian Dispatch • Expert Support

Select your options: Choose pitch (3/8LP or .325), gauge (.050" or .063"), and length from the menu. We supply 2 × Carlton Semi-Chisel chains matched to your selection.

Lightweight, Durable & Ready to Work

One-piece solid bar with replaceable sprocket nose. The genuine GB ProTop “Titanium” bar is precision-engineered from lightweight alloy steel for long life and easy manoeuvrability. The sprocket-nose supports the chain around the tip to reduce friction and enable higher chain tension for smooth, efficient cutting.

Bar Specifications

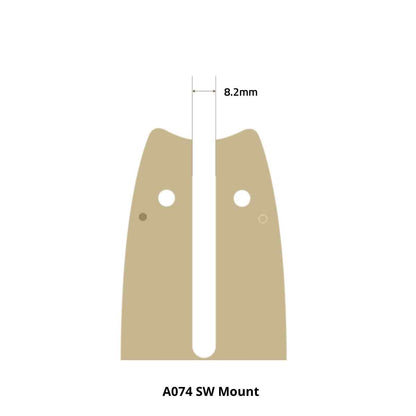

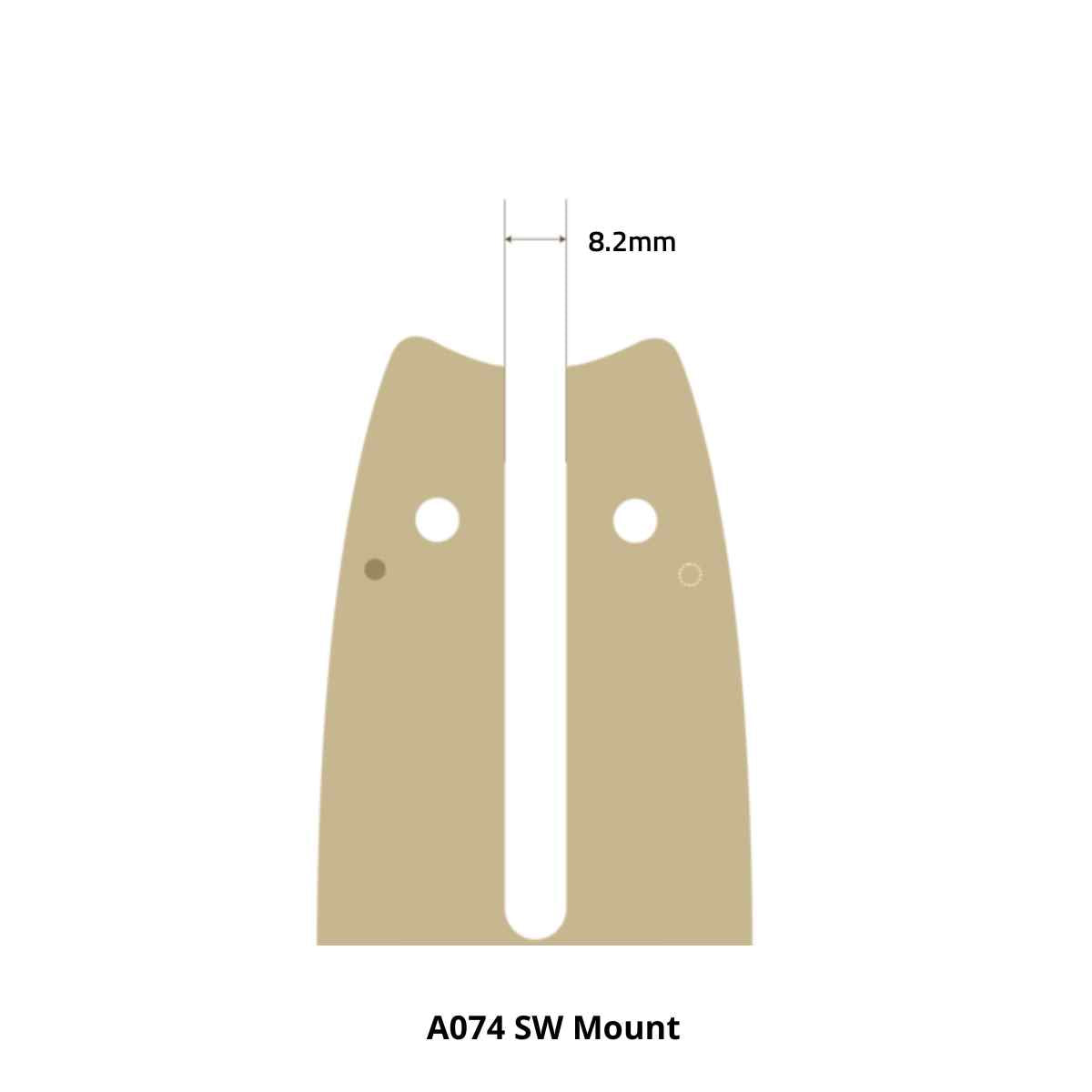

  • Mount: SW / A074 (8.2 mm)
  • Pitch options: 3/8LP (low profile) or .325"
  • Gauge options: .050" or .063" (as per model)
  • Construction: Solid alloy steel body • Replaceable sprocket nose
  • Lengths: 14" – 18" (see matrix below)

Chains Included

  • Quantity: 2 × Carlton Semi-Chisel
  • Pitch / Gauge: Supplied to match the bar you select
  • Benefits: Long cutting life • Easy to sharpen • Great all-round performance

Will It Fit?

  • Your saw uses the SW / A074 bar mount.
  • Your motor drive sprocket pitch must match the bar & chain (3/8LP or .325").
  • Select the gauge that matches your saw (.050" or .063").

Compatible Models (Indicative)

STIHL: 009, 010, 011, 012, 015, 017, 018, 019, 020, 021, 023, 025, E10, E14, E160, E180, MS170, MS180, MS190T, MS191, MS191T, MS192T, MS200, MS200T, MS210, MS211, MS231, MS250, MS251, MST190T
ALPINA: E1.6, E1.8, E160, E170, P360, P370, P390, S35, S40
CASTOR: CP360, CP370, CP380, EL160, EL170, HIT 1.6/1.8
EFCO: 114E, 116E, 117E, 119E, 132, 134, 135, 136, 138, 140, 141, 155E
OLEO MAC & OLYMPIK: 1700, 240, 241, 244, 344, 931, 935, E1900, OM-E200

Note: Some models ship with different sprocket pitches. Check your motor sprocket before ordering.

Bar & Chain Matrix (SW / A074)

#Part Length Pitch Gauge Drive Links Bar Weight (kg)
SW14-50WR 14" 3/8LP .050" 50 0.65
SW16-50WR 16" 3/8LP .050" 55 0.75
SW18-50WR 18" 3/8LP .050" 60 0.85
SW16-63PJ 16" .325" .063" 62 0.90
SW18-63PJ 18" .325" .063" 68 1.30
Drive-link counts are indicative and based on data from GB Forestry Australia.

Setup & Care

  • Match bar nose, chain and motor drive sprocket to the same pitch (3/8LP or .325").
  • Set correct chain tension and ensure clean oil holes and bar groove.
  • Flip the bar periodically to even rail wear.
  • File to the chain manufacturer’s angles for best results.

Why Choose Whites Forestry Equipment?

  • Specialist advice from forestry professionals
  • Australian stock: Fast dispatch from Victoria
  • Authenticity: Authorised distributors of genuine GB & Carlton products
  • Business-ready: GST tax invoice and after-sales support
Important: Compatibility information is a guide only. Confirm mount, pitch, gauge, and drive-link count for your saw and sprocket before ordering.
