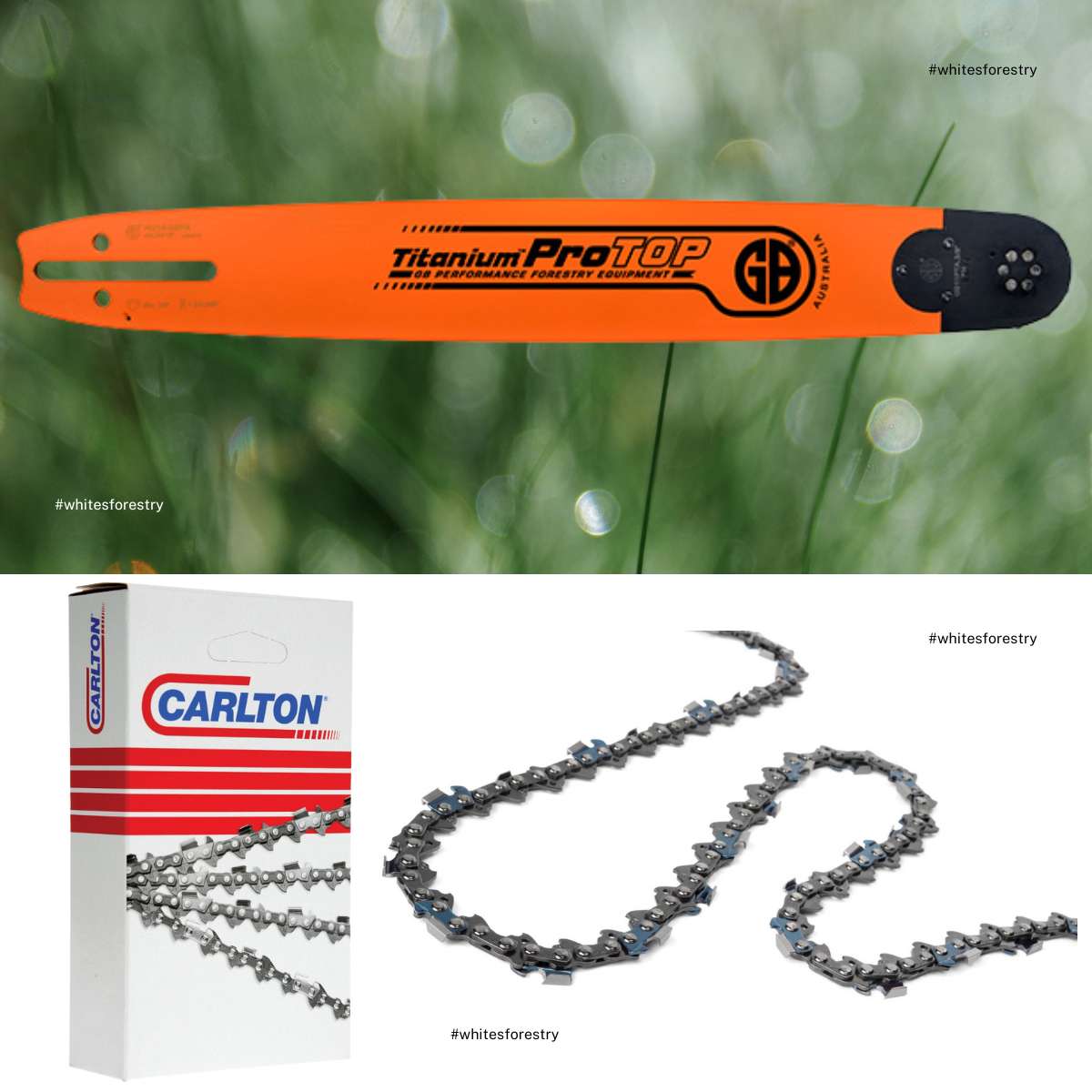

GB ProTop Bar + Carlton 3/8" × .058" Chain (HV / D009)

Australian Stock • GST Invoice • Fast Victorian Dispatch • Expert Support

Choose options: Select your bar length and chain style — A2EP Semi-Chisel for versatile durability or A2LM Full-Chisel for maximum speed in clean timber.

Pro-Grade Cutting — Ready to Work

Light, durable and smooth-tracking. The genuine GB ProTop “Titanium” bar uses a precision-engineered, lightweight alloy-steel body with a replaceable sprocket-nose to reduce friction, support higher chain tension and deliver long service life. A matching Carlton chain completes the kit.

Key Bar Specs

  • Pitch / Gauge: 3/8" × .058"
  • Mount: HV / D009 (Husqvarna large mount)
  • Body / Tip: Solid alloy steel • Replaceable sprocket nose
  • Lengths available: 20" – 42"

Chain Options (Carlton)

  • Included: 1 × 3/8" × .058" chain, matched to your selected bar length
  • Styles: A2EP (Semi-Chisel) or A2LM (Full-Chisel)
  • Drive links: See reference table below

Which Chain Style Suits Your Work?

A2LM Full-Chisel — Maximum Speed

  • Fast, efficient cutting in clean, bark-free timber
  • Sharp-cornered cutters for a crisp finish
  • Performs best with accurate sharpening

A2EP Semi-Chisel — Versatile & Durable

  • Excellent edge retention in dusty or mixed conditions
  • Forgiving to sharpen and maintain
  • Slightly lower peak speed vs full-chisel

We’ll supply the chain in the correct drive-link count for the bar length you choose.

Will It Fit?

  • Your saw uses the HV / D009 bar mount (Husqvarna large-mount pattern).
  • Your drive sprocket is 3/8" pitch. Tip: confirm sprocket pitch before ordering.
  • You require .058" gauge chain with the drive-link count that matches your chosen bar length.

Compatible Models (Indicative)

DOLMAR: PS6400, PS7300, PS7900
HUSQVARNA: 1100, 160, 162, 163, 180, 181, 185, 2100XP, 2101, 260, 261, 263, 266, 268, 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 480, 562XP, 570, 572, 575XP, 585, 592XP, 61, 62, 65, 66, 70, 77
JONSERED: 2063, 2065, 2071, 2077, 2083, 2094, 2095, 2156, 2159, 2163, 2165, 2171, 2186, 625, 630, 635, 670 WEST COAST
MAKITA: DCS6400, DCS6401, DCS7300, DCS7301, DCS7900, DCS7901
POULAN & POULAN PRO: 375, 395, 415, 425, 475, PP445, PP505, PP655
SHINDAIWA: 1091, 550, 575, 577, 680, 695, 757, 801, 901
SOLO: 603, 662, 665, 667, 670, 675, 680, 681, 690, 694

Drive-Link & Weight Reference (HV / D009)

#Part Length Drive Links Bar Weight (kg)
HV20-58PA 20" 72 1.3
HV22-58PA 22" 76 1.4
HV24-58PA 24" 84 1.6
HV28-58PA 28" 93 2.0
HV30-58PA 30" 98 2.2
HV36-58PA 36" 115 2.4
HV42-58PA 42" 135 3.0
Drive-link counts are approximate for a 7-tooth rim sprocket. Data supplied by GB Forestry Australia.

Setup & Care

  • Set correct chain tension; ensure bar and chain are aligned.
  • Keep bar groove and oil holes clean for optimal lubrication.
  • Flip the bar periodically to even rail wear.
  • Sharpen to the manufacturer’s angles for best results.

Why Choose Whites Forestry Equipment?

  • Specialist advice from forestry professionals
  • Australian stock: Fast dispatch from Victoria
  • Authenticity: Authorised distributors of genuine GB & Carlton products
  • Business-ready: GST tax invoice and after-sales support
Important: Compatibility information is a guide only. Match mount, pitch, gauge and drive-link count to your saw and sprocket before ordering.
