GB Extra Long Titanium Chainsaw Bar, Large Timber & Slabbing 44"- 84"

GB Extra Long Titanium Chainsaw Bar, Large Timber & Slabbing 44"- 84"
GB Extra Long Titanium Chainsaw Bar, Large Timber & Slabbing 44"- 84"

GB Extra Long Titanium Chainsaw Bar, Large Timber & Slabbing 44"- 84"

Regular price $500.00
/
  • Worldwide shipping
  • Secure payments
Tax included. Shipping calculated at checkout.

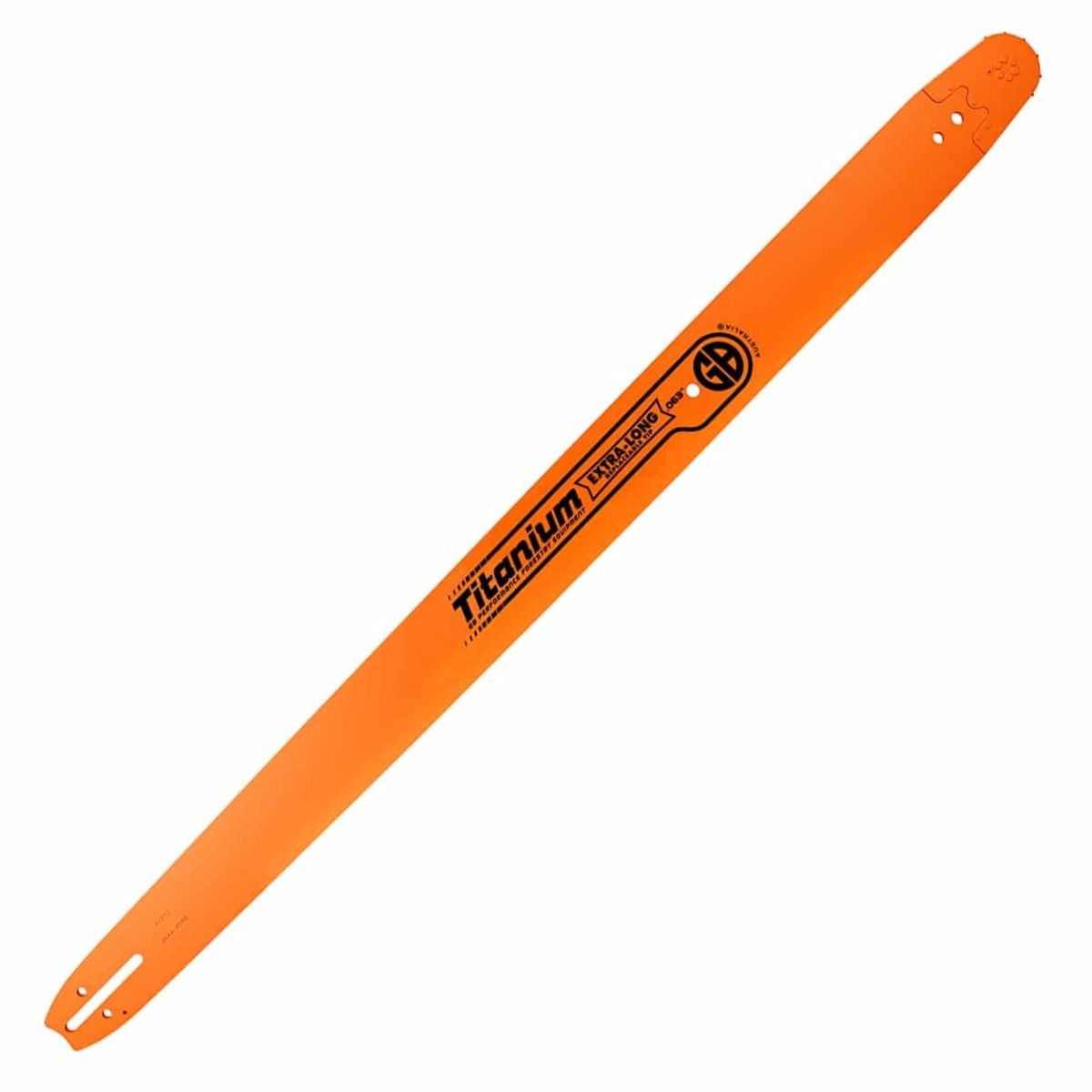

GB Extra-Long Titanium Professional Guide Bar.

Designed for professional use, superior to any other bar on the market. GB's advanced manufacturing processes ensures Extra-long is arguably the strongest guide bar in the world.

Extra-long are manufactured from a one-piece solid 6mm thick titanium alloy steel, specially heat-treated and hardened then laser-cut for precise shape and fit-up. Rails are induction hardened with precision CNC ground grooves.

Extra-long’s heavy-duty sprocket nose is fitted with GB's high-tech alloy sprocket that glides on precision Swiss bearings. The nose locks over a solid steel web on the bar body, held firmly by five high tensile rivets.

GB Extra-long guide bars are specially designed for large timber processing and slab cutting. Proudly Australian manufactured, GB Extra-long bars are highly regarded by forestry industries worldwide.

Please note: Extra-Long bars are a special order non-stocked item. We order these in from GB based on customers prepaid orders. Allow additional time for shipping and pickup. Please contact us if your order is urgent.

HS mount fits large 14mm stud Stihl (070, 076, 084. 090, 088, MS880) and large Echo. HS mount has additional oil inlet holes pre-drilled designed to fit 12mm SN medium stud Stihl (MS660 Ms661) and 9mm HV Husqvarna (395XP 3120) with 12-14mm & 9-14mm bar stud spacer shims supplied.

 HV mount fits large 9mm Husqvarna or Jonsered.

Available in 3/8" or .404 pitch, .063 gauge

To avoid guide bar jamming when running 3/8” option we suggest running a large wide tooth 3/8” chain. Extra-long are 6mm thick, 1.3mm thicker than a standard guide bar.

 Extra-Long are recommended for Power heads over 100cc

84" and 87" are recommended for fixed stationary engines on portable mills. Chainsaw tensioners may have issues obtaining adequate chain tension.

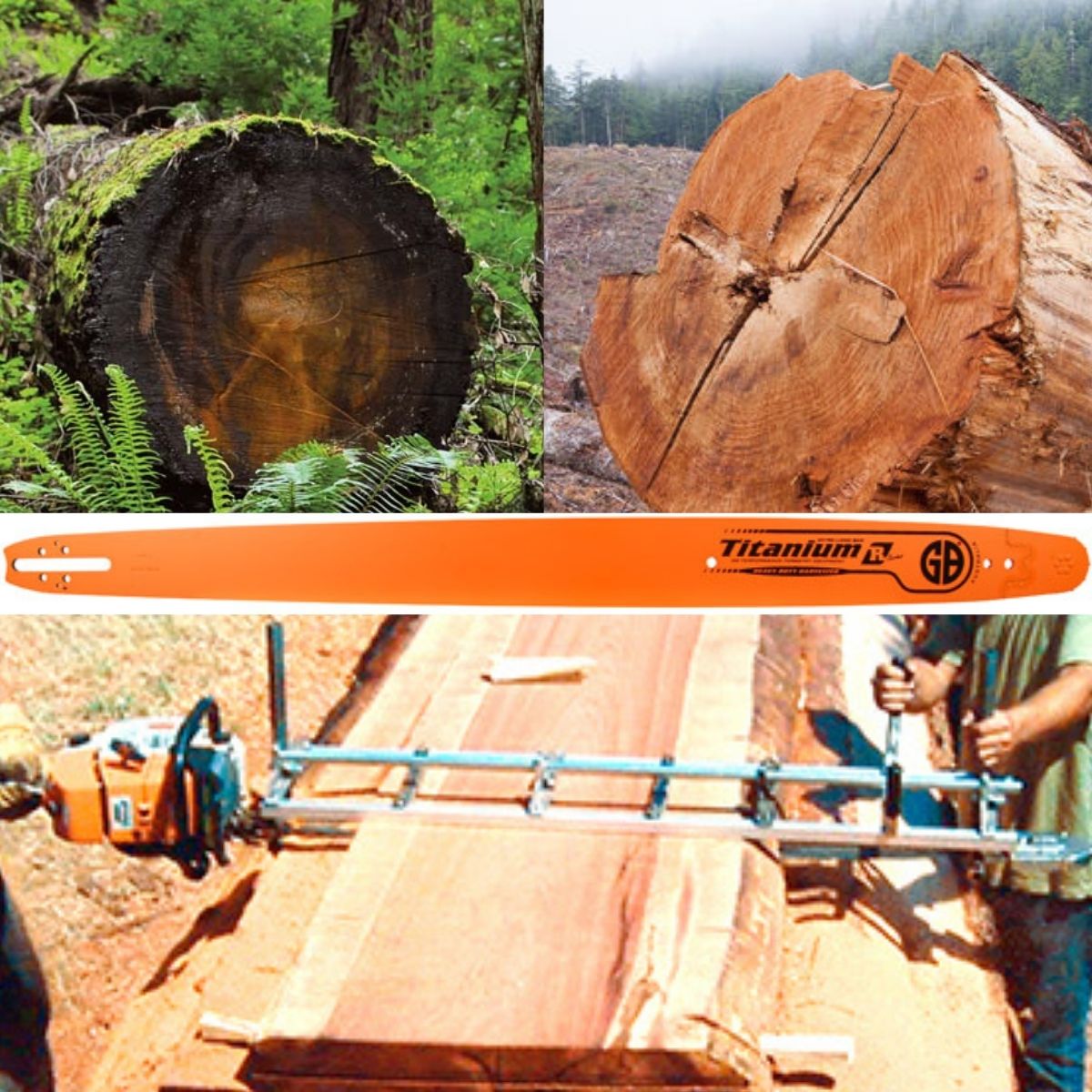

Chainsaw & Alaskan mill pictured are not included, available in our other listings.

Drive link Counts

Disclaimer all counts are approximate, data supplied by GB Forestry Aust P/L

Part Number

3/8" Drive Link

.404" Drive Link



Part Number

3/8" Drive Link

.404" Drive Link

HV44-63RA/RQ

142

128



HS44-63RA/RQ

142

128

HV50-63RA/RQ

155

140



HS50-63RA/RQ

154

140

HV56-63RA/RQ

175

160



HS56-63RA/RQ

175

160

HV60-63RA/RQ

190

172



HS60-63RA/RQ

190

172

HV64-63RA/RQ

199

180



HS64-63RA/RQ

199

180

HV72-63RA/RQ

210

190



HS72-63RA/RQ

210

190

HV84-63RA/RQ

247

223



HS84-63RA/RQ

247

223

HS87-63RA/RQ

254

230
