Cannon SuperBar P4 D176 3/8 .058 Chainsaw Bar
Couldn't load pickup availability
Cannon SuperBar is a professional-grade chainsaw bar built for operators who demand straight cutting, long service life and minimal downtime.
Manufactured in Canada 🇨🇦 by Cannon Bar Works, SuperBars are hand-made from high-grade, custom alloy steel containing chromium for wear resistance and molybdenum for strength. The steel is cold rolled and annealed to achieve the correct balance of hardness, toughness and flexibility.
Bars are water-jet cut to eliminate heat-affected zones, then heat treated, oil quenched and press tempered. After hardening, each bar is straightened, surface ground and CNC machined to tight tolerances.
Cannon is known for its precision-honed bar groove. Rails are hand-ground, not milled, and each groove is individually finished and centred to within .002–.003", delivering smooth chain travel, straight tracking and even rail wear.
The rails are flame hardened using Cannon’s proprietary process for deeper, harder wear surfaces. Longer bars are heel-pressed and stress-relieved to reduce vibration and improve durability.
All SuperBars are finished in a durable gunmetal or matte black coating and fitted with a single-rivet, replaceable sprocket nose.
Specification note: This listing is for the P4 Mount, 3/8 pitch and .058" gauge. Other Cannon mount types and gauges are available in separate listings.

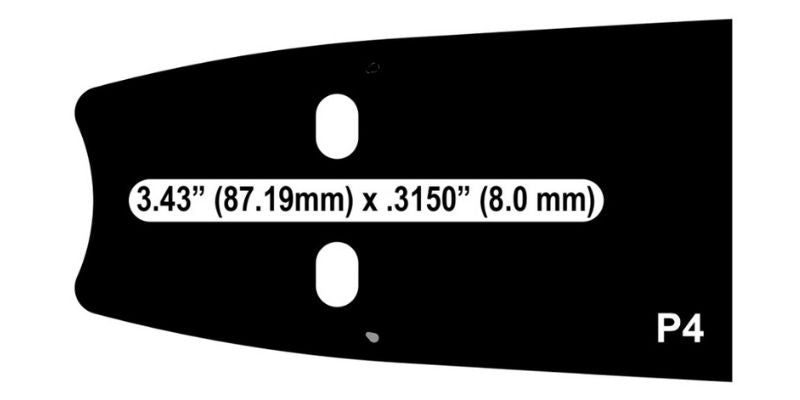

Mount and fitment
P4 Mount
Pattern: Oregon D176
Bar studs: 8 mm
Common use: Many Echo chainsaws with 8 mm bar studs.
Important: Confirm the mount pattern, pitch and gauge stamped on your existing guide bar before ordering.
Available lengths
| Length | SKU | Pitch | Gauge |
|---|---|---|---|
| 20" | CSB-P4-20-58-3 | 3/8 | .058" (1.5 mm) |
| 24" | CSB-P4-24-58-3 | 3/8 | .058" (1.5 mm) |
| 28" | CSB-P4-28-58-3 | 3/8 | .058" (1.5 mm) |
| 32" | CSB-P4-32-58-3 | 3/8 | .058" (1.5 mm) |
If you require technical assistance, please contact us.
