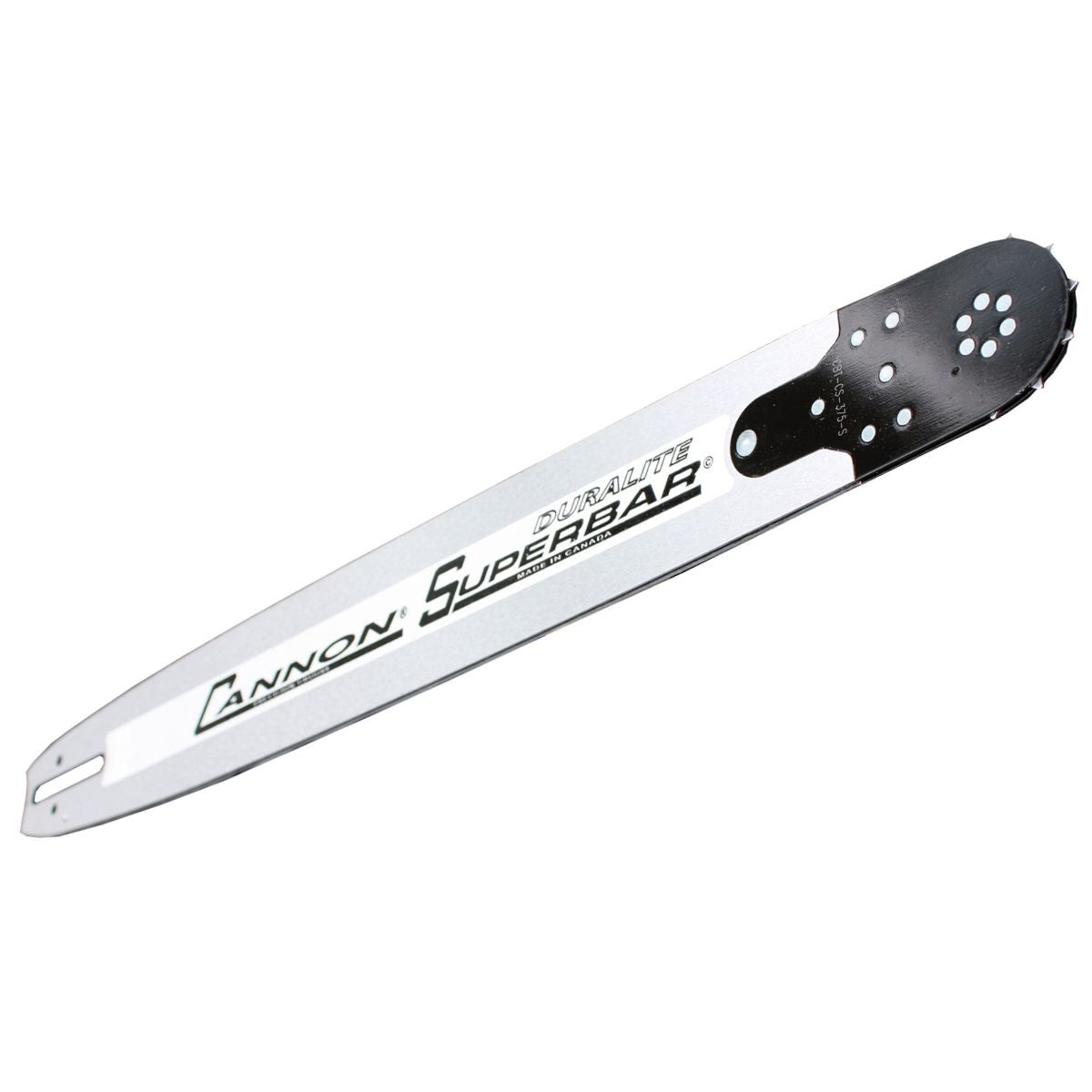

Cannon DuraLite SuperBar S1 Mount .404 .063 Chainsaw Bar
Couldn't load pickup availability
Cannon DuraLite SuperBar is built for professional operators who want the strength and cutting accuracy of a solid steel bar, with improved balance and reduced weight where it matters most.
Whether you’re running a shorter bar for fast handling and control, or stepping up into longer lengths where nose weight and fatigue become more noticeable, the DuraLite offers a clear advantage over a standard solid bar.
The DuraLite SuperBar begins life as a fully machined Cannon SuperBar. After grooving and flame-hardening the rails, weight is reduced by precision milling pockets on each side while retaining a solid steel core.
The centre section is perforated to form an I-beam style structure, maintaining exceptional rigidity while removing unnecessary mass from the bar body.
Flexible aluminium inserts are permanently bonded to the steel core using a specialised chemical bonding process, resulting in a bar that maintains SuperBar durability while weighing up to 25% less.
Manufactured in 🇨🇦 Canada by Cannon Bar Works, the DuraLite SuperBar improves balance, reduces fatigue and maintains straight cutting accuracy across a wide range of bar lengths.
- Up to 25% lighter than a standard solid steel SuperBar
- Improved balance and reduced fatigue
- Flame-hardened rails for extended service life
- Precision-ground groove for accurate chain tracking
- Heavy-duty sprocket nose suited to professional saws
Specification note: This listing is for the S1 Mount, .404 pitch and .063" gauge. Other Cannon mount types, pitches and gauges are available in separate listings.
Mount and fitment
S1 Mount
Pattern: Oregon D025 / Stihl 3003
Bar studs: 12 mm
Common use: Stihl professional chainsaws approximately 60cc–91cc with 12 mm bar studs.
Important: Confirm the mount pattern, pitch and gauge stamped on your existing guide bar before ordering.
Available lengths
| Length | SKU | Pitch | Gauge |
|---|---|---|---|
| 24" | CSB-S1-24-63-DL-4 | .404 | .063" (1.6 mm) |
| 28" | CSB-S1-28-63-DL-4 | .404 | .063" (1.6 mm) |
If you require technical assistance, please contact us.
