Cannon® SuperBar + 2 Chain Combo fits Stihl®

Size
Chain
$330.00
$330.00
🔥 Sale Sold out
Taxes included. Shipping calculated at checkout.

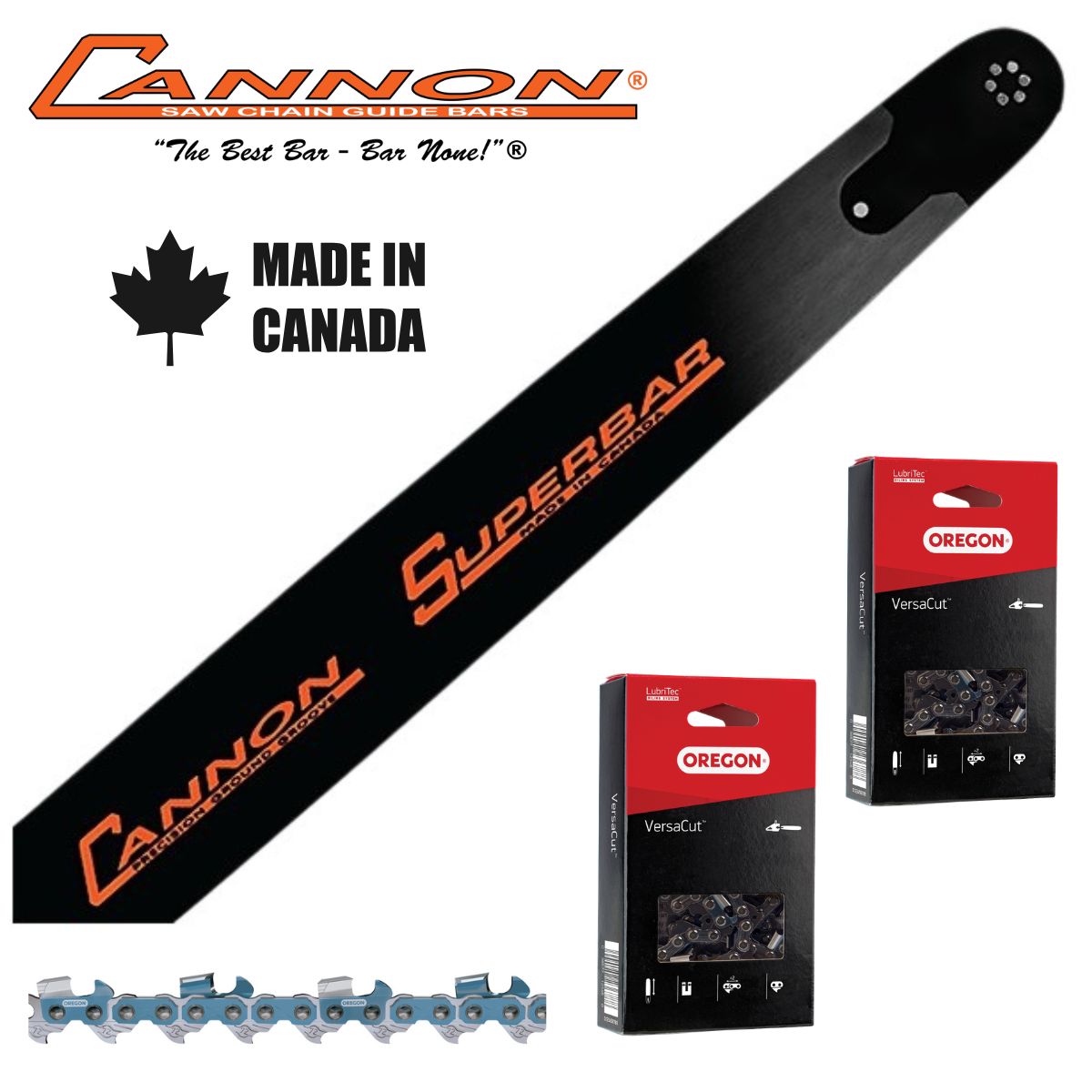

Complete Cannon SuperBar Cutting Combo

1 × Cannon SuperBar + 2 × matching Oregon chains

Cannon SuperBar is a professional-grade chainsaw bar built for operators who demand straight cutting, long service life and minimal downtime.

Each combo includes one Canadian-made Cannon S1 SuperBar and two Oregon chains matched to the selected bar length. Choose either Semi-Chisel or Full-Chisel chain.

Confirm Fitment

  • Mount: Cannon S1
  • Pattern: Oregon D025 / Stihl 3003
  • Bar studs: 12 mm
  • Pitch: 3/8"
  • Gauge: .063" (1.6 mm)
S1 / D025 / 3003 3/8" .063"

Included in the Combo

  • 1 × Cannon SuperBar in the selected length
  • 2 × Oregon chains with the correct drive-link count
  • Both chains supplied in the same selected cutter style
  • Choose Semi-Chisel or Full-Chisel

Available Sizes

Bar Length Cannon SKU Chain Size Included
20" CSB-S1-20-63-3 3/8" .063" 72DL 1 bar + 2 chains
24" CSB-S1-24-63-3 3/8" .063" 84DL 1 bar + 2 chains
28" CSB-S1-28-63-3 3/8" .063" 91DL 1 bar + 2 chains

Choose Your Oregon Chain Style

Semi-Chisel

Best for general-purpose cutting

  • Good edge retention in dusty, dry or mixed conditions
  • Rounded working corner is easier to sharpen and maintain
  • More forgiving when cutting timber with dirty bark
  • A practical choice for general professional use
Full-Chisel

Best for maximum speed in clean timber

  • Fast, aggressive cutting performance
  • Square-cornered cutters provide a strong cutting bite
  • Preferred by experienced operators cutting clean timber
  • Requires accurate sharpening and regular maintenance

Why Professionals Choose Cannon

Custom Alloy Steel

High-grade steel containing chromium for wear resistance and molybdenum for strength, toughness and flexibility.

Precision-Honed Groove

Each groove is individually finished and centred to within .002–.003" for smooth chain travel and straight tracking.

Flame-Hardened Rails

Cannon’s proprietary hardening process produces deeper, harder wear surfaces for extended rail life.

Replaceable Sprocket Nose

A single-rivet replaceable sprocket nose supports professional servicing and helps extend the useful life of the bar.

How Cannon SuperBars Are Made

Manufactured in Canada 🇨🇦 by Cannon Bar Works, SuperBars are hand-made from high-grade, custom alloy steel containing chromium for wear resistance and molybdenum for strength. The steel is cold rolled and annealed to achieve the correct balance of hardness, toughness and flexibility.

Bars are water-jet cut to eliminate heat-affected zones, then heat treated, oil quenched and press tempered. After hardening, each bar is straightened, surface ground and CNC machined to tight tolerances.

Cannon is known for its precision-honed bar groove. Rails are hand-ground, not milled, and each groove is individually finished and centred to within .002–.003", delivering smooth chain travel, straight tracking and even rail wear.

The rails are flame hardened using Cannon’s proprietary process for deeper, harder wear surfaces. Longer bars are heel-pressed and stress-relieved to reduce vibration and improve durability.

All SuperBars are finished in a durable gunmetal or matte black coating and fitted with a single-rivet, replaceable sprocket nose.

View Cannon SuperBar Technical Overview

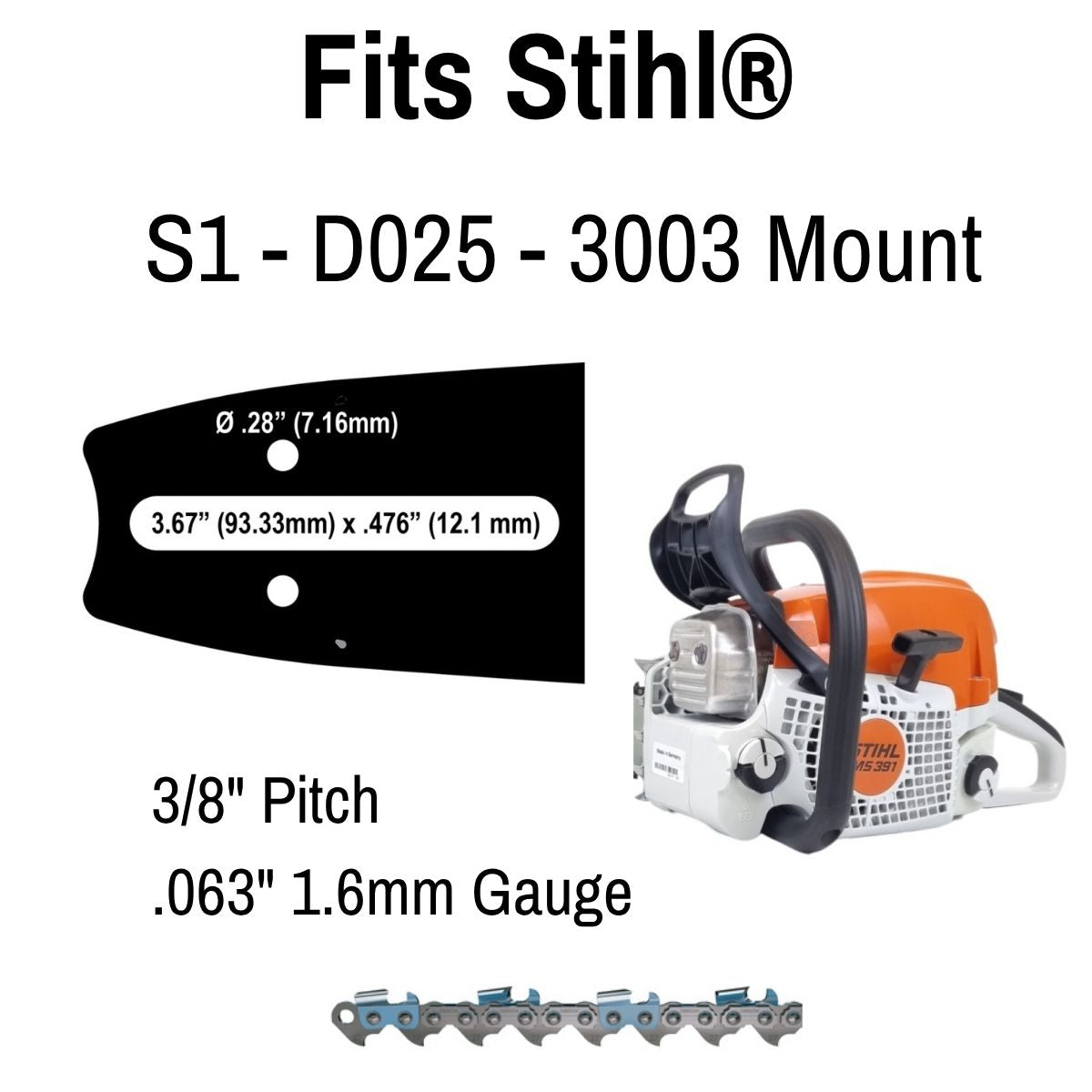

S1 / D025 / Stihl 3003 Fitment Guide

Mount pattern: Cannon S1 is equivalent to Oregon D025 and Stihl 3003.

Common use: Stihl chainsaws approximately 60cc–91cc fitted with 12 mm bar studs.
Required setup: 3/8" drive sprocket and .063" (1.6 mm) gauge chain.
Important: Model family alone does not confirm fitment. Check the mount code stamped on your current guide bar, the bar-stud size, pitch, gauge and drive-link count before ordering.

Stihl 3002, Stihl 3005 and other bar mounts are different and are not interchangeable with the S1 / D025 / 3003 mount.

Setup & Care

  • Confirm the bar mount, pitch, gauge and drive-link count before fitting.
  • Match the bar, chain and drive sprocket to the same 3/8" pitch.
  • Set the correct chain tension and check it regularly during initial use.
  • Keep the bar groove, oil holes and sprocket nose clean and lubricated.
  • Set the chainsaw oiler appropriately for the bar length and conditions.
  • Flip the bar regularly to promote even rail wear.
  • Sharpen Oregon chains to the manufacturer’s recommended angles.
  • Replace damaged or excessively worn components before further use.

Why Choose Whites Forestry Equipment?

  • Specialist advice from forestry professionals
  • Australian stock with fast dispatch from Victoria
  • Genuine Cannon and Oregon products
  • GST tax invoice and after-sales support
Important: Compatibility information is a guide only. Confirm that your chainsaw uses the S1 / Oregon D025 / Stihl 3003 mount with 12 mm bar studs, together with 3/8" pitch, .063" gauge and the correct drive-link count before ordering. Product images may show a different bar length or chain style from the selected variant.

If you require technical assistance, please contact us.
