Tsumura Light Weight Chainsaw Bar HV, D009 Husqvarna

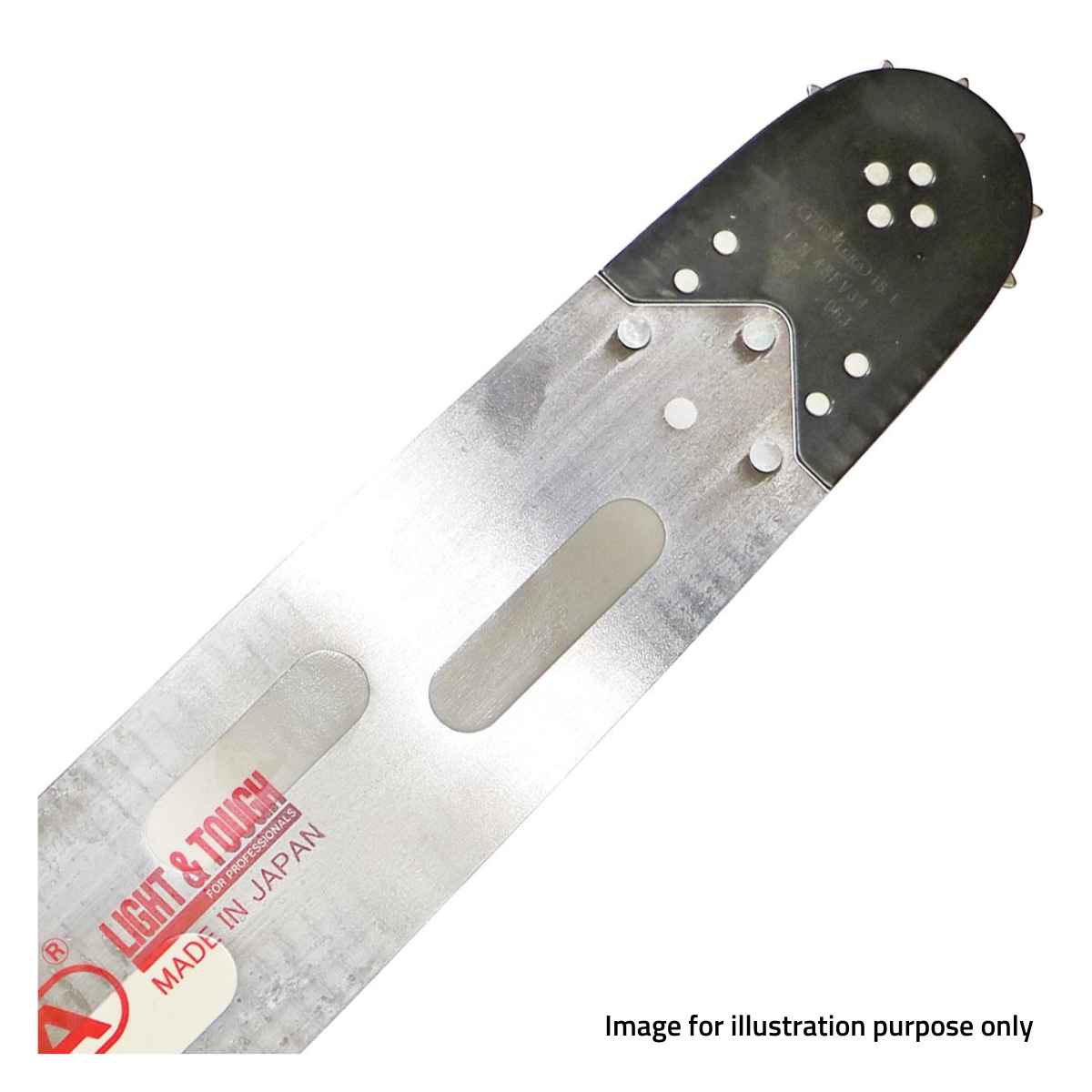

Tsumura Light & Tough Guide Bar – D009 Mount

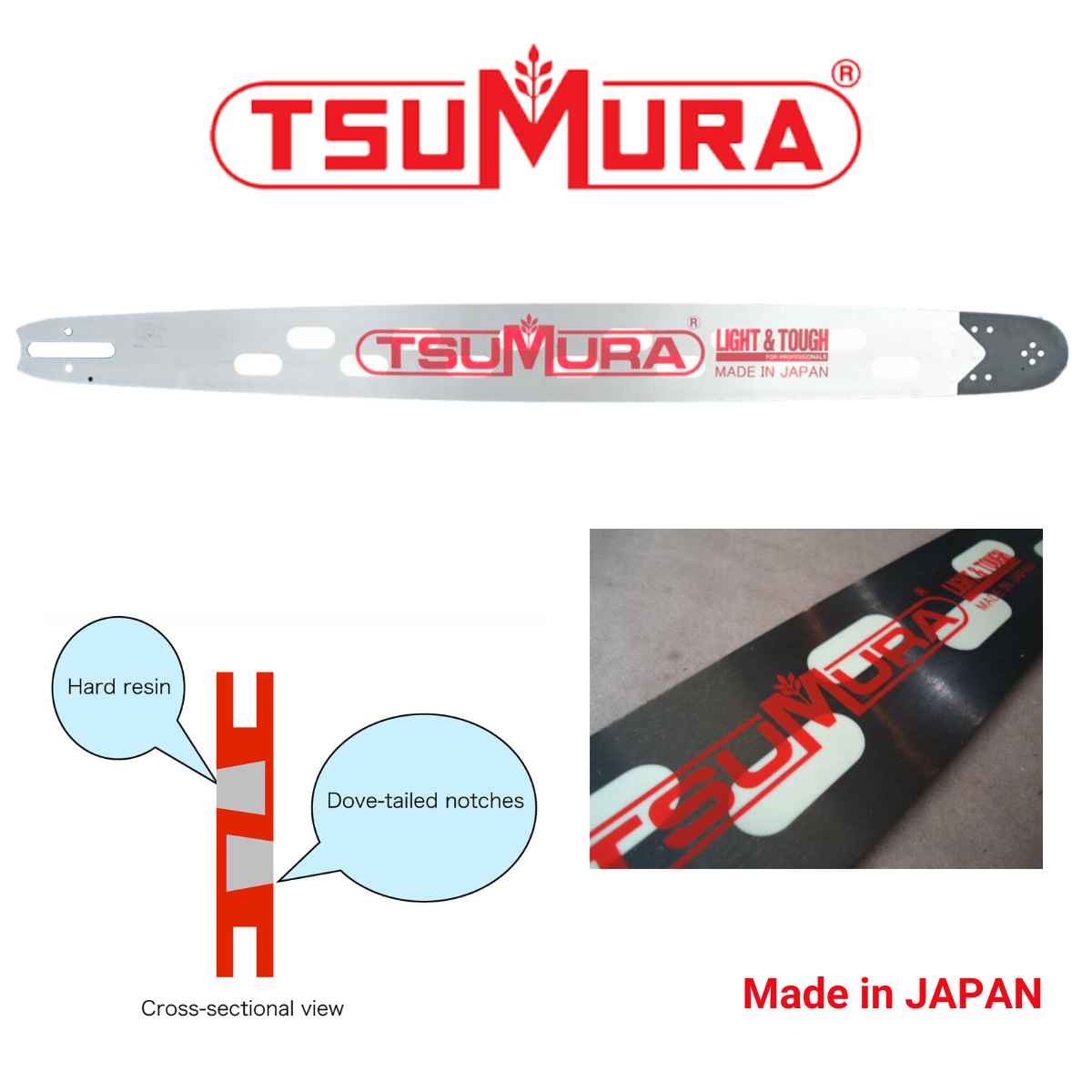

The Tsumura Light & Tough bar is engineered for professional-grade performance while reducing fatigue through weight reduction. It features a unique construction where staggered dovetail notches are laser-cut into the bar and filled with hard resin, decreasing overall weight by approximately 20% without compromising strength.

Ideal for demanding users, this bar is precision-made from a single piece of solid SKS-51 steel and built to withstand heavy use.

Key Features:

• One-piece solid SKS-51 steel construction
• Laser-cut for accurate fitment
• Special heat treatment process increases hardness and service life

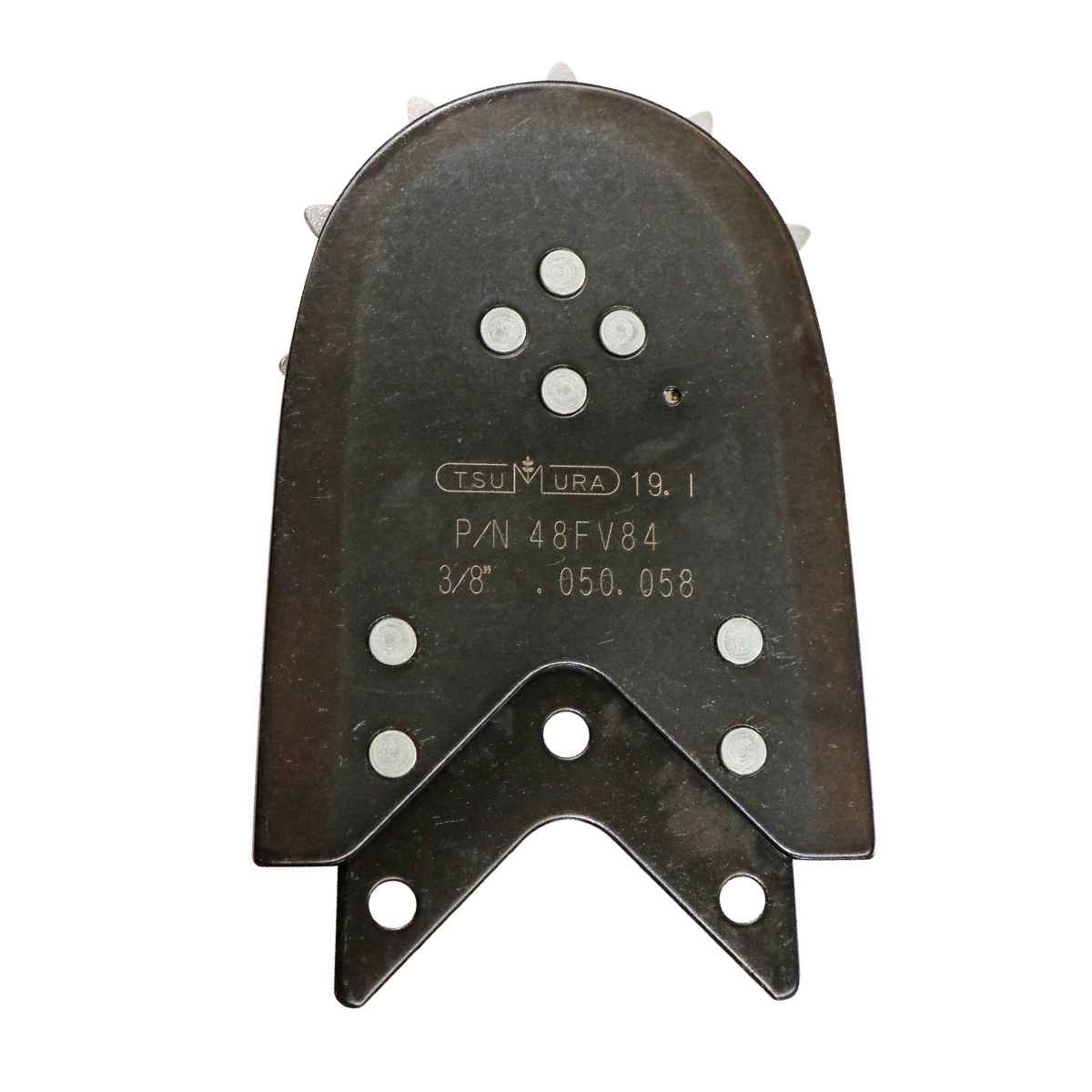

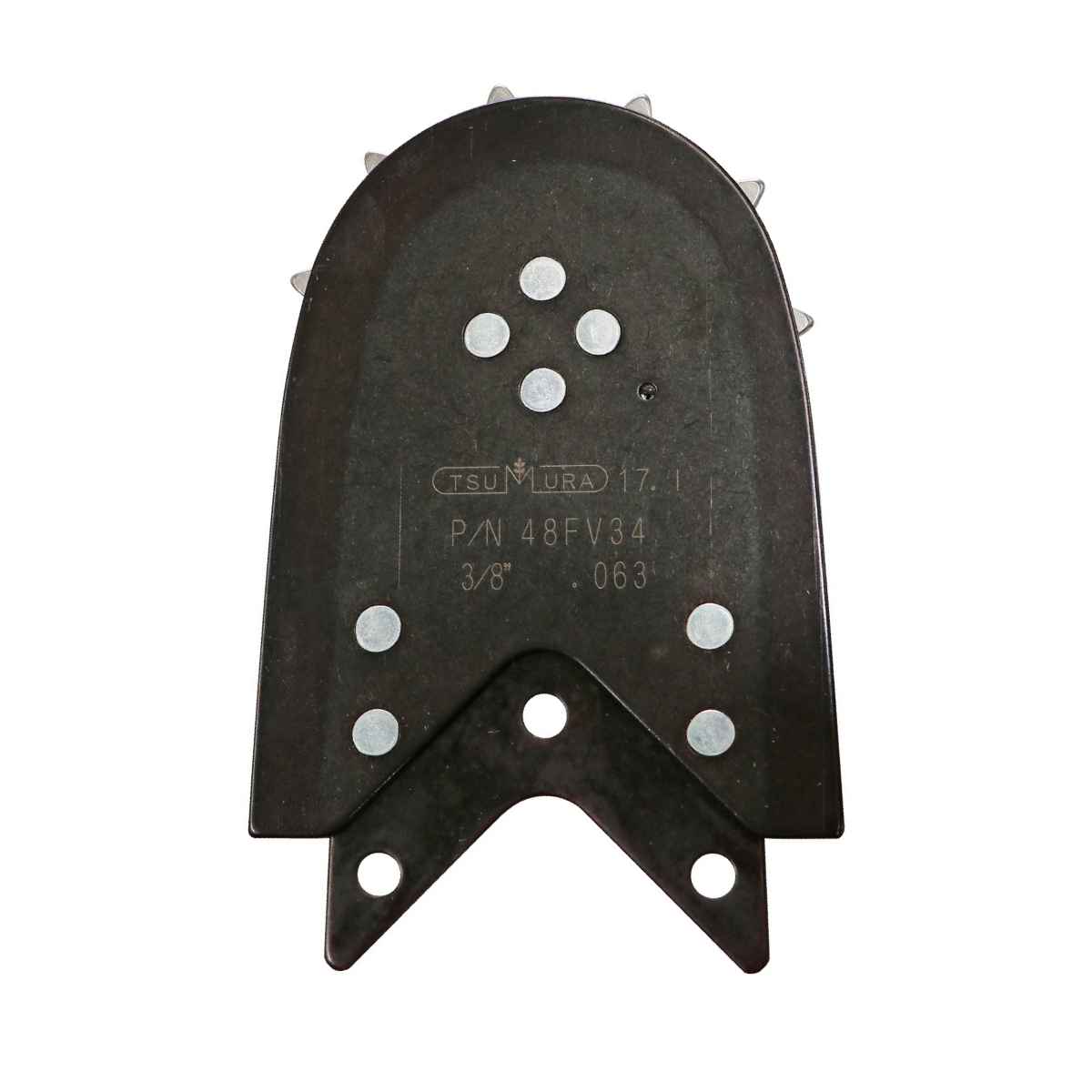

• Replaceable sprocket nose with grease port extends tip bearing life

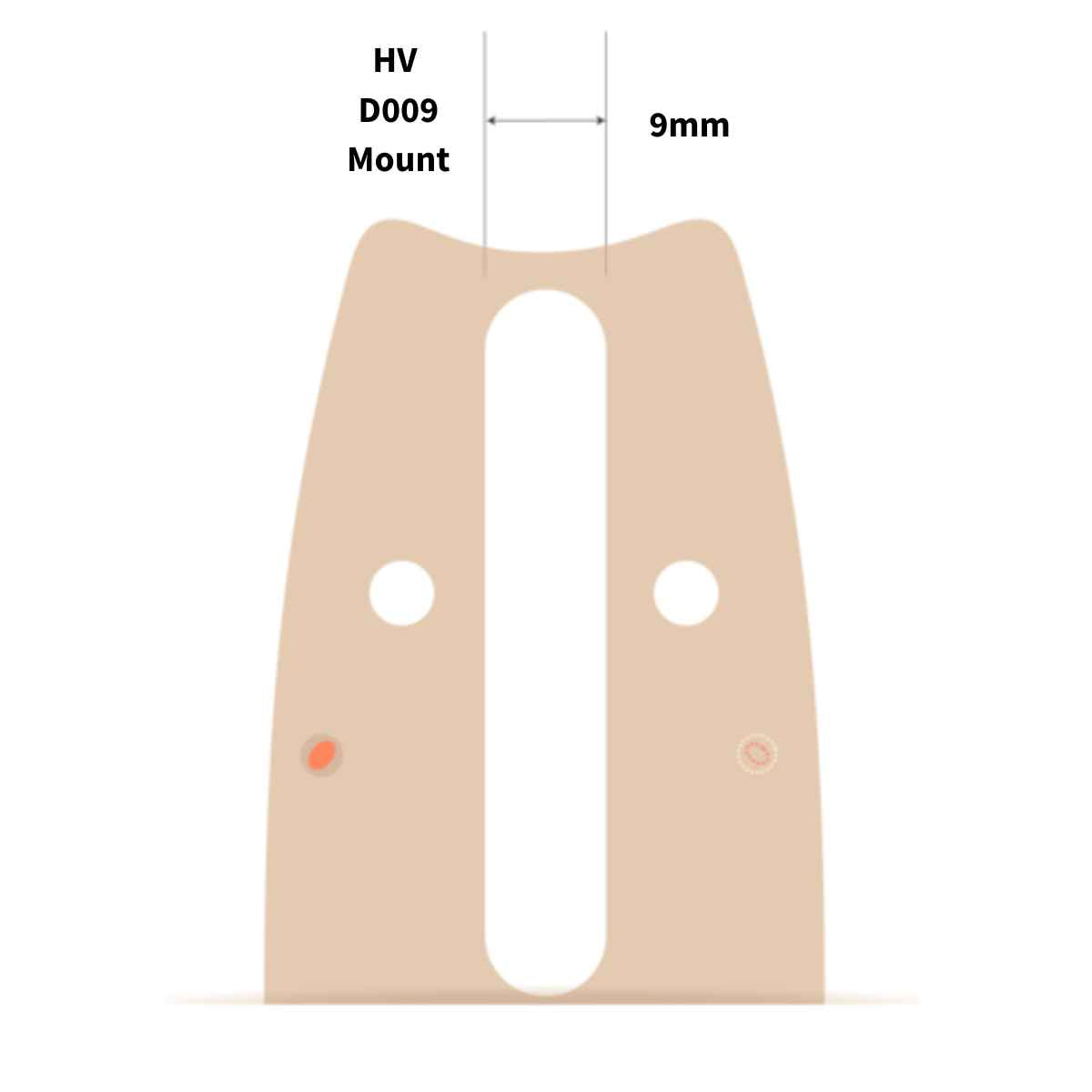

• Mount: D009 (9mm)
• Pitch: 3/8"
• Gauge: .058" (1.5mm) or .063" (1.6mm)
• Designed for professional use

Available Lengths & Specifications

Tip: Confirm your chainsaw’s drive sprocket is 3/8" pitch before ordering.

Compatible Chainsaws (D009 Mount)

Husqvarna:
1100, 160, 162, 163, 180, 181, 185, 2100XP, 2101, 260, 261, 263, 266, 268, 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 480, 562XP, 565, 570, 572XP, 575XP, 585, 592XP, 61, 62, 65, 66, 70, 77

Jonsered:
2063, 2065, 2071, 2077, 2083, 2094, 2095, 2156, 2159, 2163, 2165, 2171, 2186, 625, 630, 635, 670 WEST COAST

Makita:
DCS6400, DCS6401, DCS7300, DCS7301, DCS7900, DCS7901

Dolmar:
PS6400, PS7300, PS7900

Poulan / Poulan Pro:
375, 395, 415, 425, 475, PP445, PP505, PP655

Shindaiwa:
1091, 550, 575, 577, 680, 695, 757, 801, 901

Solo:
603, 662, 665, 667, 670, 675, 680, 681, 690, 694

Baumar-Ag:
SX92

Country of Manufacture: Japan
